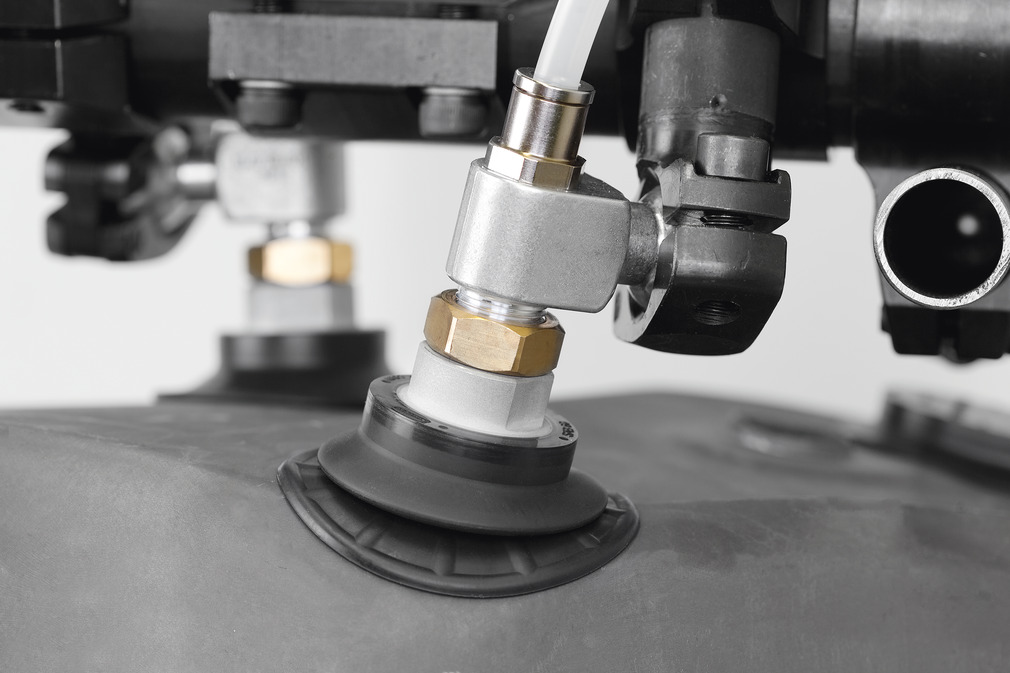

Bellows Suction Cups SAB HT2 (1.5 Folds)
Suction area (Ø) from 22 mm to 80 mm
Silicone-free special material HT2 is free of LABS and temperature resistant up to 250 °C
Large, structured inner support prevents deep drawing and withstands the highest lateral forces
Soft, flexible sealing lip seals optimally, even on slight unevenness
1.5 folds adapt optimally to curved workpieces and offer very good damping
Design
Design

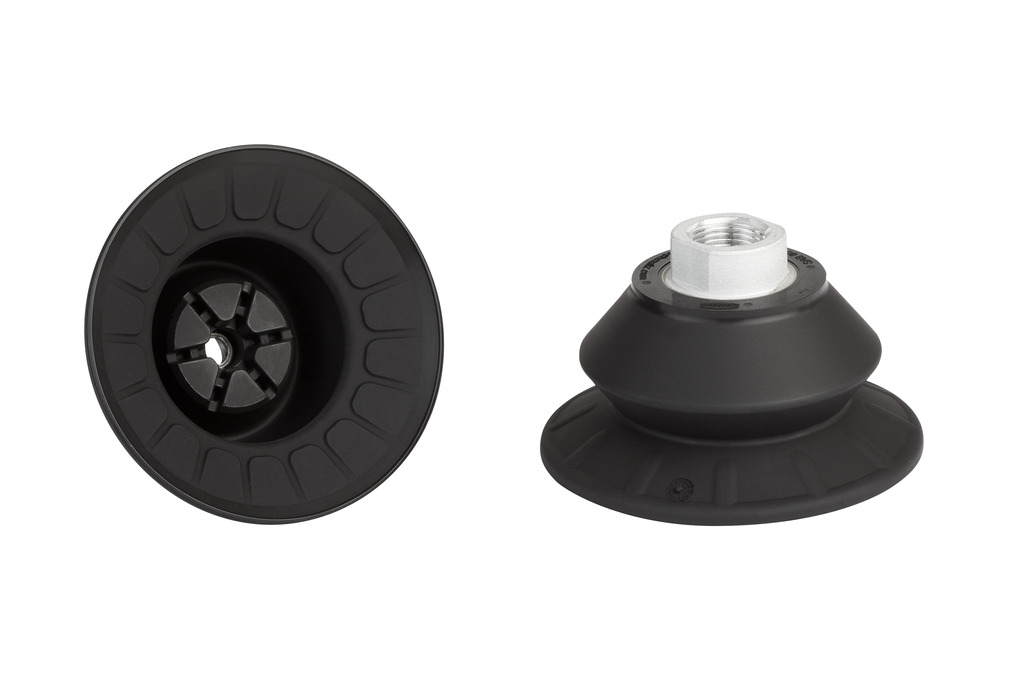

- Robust and wear-resistant bellows suction cup SAB made of HT2 with 1.5 folds and special inner support
- Connection nipple vulcanized to elastomer part (for very high strength)
Technical Data
Technical Data
- Diameter: 22 to 80 mm
- Material: HT2
- Connection nipple vulcanized to elastomer part
Documentation
Documentation
The matching documentation for this product is available in this section.
| Documents | Language |
|---|---|
| English |
