| Dimension (LxW) | 60 x 23 |
| Suction cup material | High temperature material HT2 |
| Material hardness [Shore A] | 65 (Shore A) |
| Nipple material | Nickel plated |
| Connection | G3/8-IG |

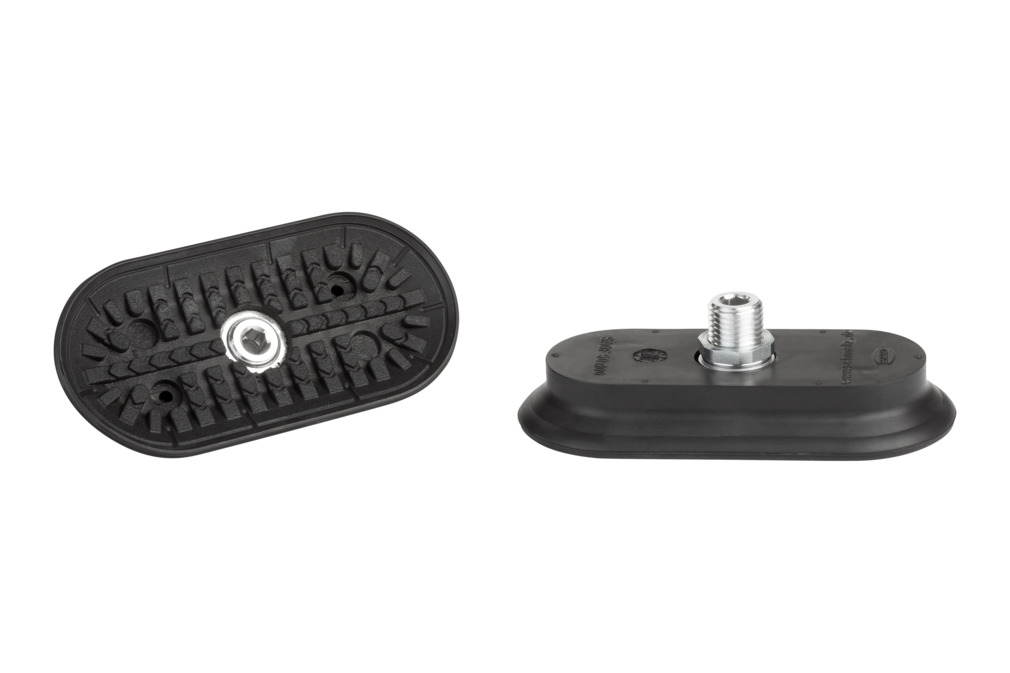

Flat Suction Cups SAOF HT2 (Oval)
Silicone-free special material HT2 is free of LABS and temperature resistant up to 250 °C
Large, structured inner support prevents deep drawing and withstands the highest lateral forces
Soft, flexible sealing lip seals optimally, even on slight unevenness
Design
Design
- Robust and wear-resistant oval flat suction cup SAOF made of HT2 with single sealing lip and inner support
- Connection nipple glued to the reinforcing element of the suction cup (very high strength and temperature resistance)
Technical Data
Technical Data
- Dimensions: 60 x 23 to 100 x 50 mm
- Material: HT2
- Connection nipple glued
1 - 10 from 12 results
| Dimension (LxW) | 60 x 23 |
| Suction cup material | High temperature material HT2 |
| Material hardness [Shore A] | 65 (Shore A) |
| Nipple material | Nickel plated |
| Connection | G1/4-IG |
| Dimension (LxW) | 60 x 23 |
| Suction cup material | High temperature material HT2 |
| Material hardness [Shore A] | 65 (Shore A) |
| Nipple material | Aluminum |
| Connection | G1/4-AG |
| Dimension (LxW) | 90 x 30 |
| Suction cup material | High temperature material HT2 |
| Material hardness [Shore A] | 65 (Shore A) |
| Nipple material | Nickel plated |
| Connection | G3/8-IG |
| Dimension (LxW) | 90 x 30 |
| Suction cup material | High temperature material HT2 |
| Material hardness [Shore A] | 65 (Shore A) |
| Nipple material | Nickel plated |
| Connection | G1/4-IG |
| Dimension (LxW) | 90 x 30 |
| Suction cup material | High temperature material HT2 |
| Material hardness [Shore A] | 65 (Shore A) |
| Nipple material | Aluminum |
| Connection | G1/4-AG |
| Dimension (LxW) | 80 x 40 |
| Suction cup material | High temperature material HT2 |
| Material hardness [Shore A] | 65 (Shore A) |
| Nipple material | Nickel plated |
| Connection | G3/8-IG |
| Dimension (LxW) | 80 x 40 |
| Suction cup material | High temperature material HT2 |
| Material hardness [Shore A] | 65 (Shore A) |
| Nipple material | Nickel plated |
| Connection | G1/4-IG |
| Dimension (LxW) | 80 x 40 |
| Suction cup material | High temperature material HT2 |
| Material hardness [Shore A] | 65 (Shore A) |
| Nipple material | Aluminum |
| Connection | G1/4-AG |
| Dimension (LxW) | 100 x 50 |
| Suction cup material | High temperature material HT2 |
| Material hardness [Shore A] | 65 (Shore A) |
| Nipple material | Nickel plated |
| Connection | G3/8-IG |
