- NEW
Bellows Suction Cups SAXB
Suction area (Ø) from 20 mm to 120 mm
Extremely adaptable bellows suction cup for optimum suction capacity on sheet metal and car body parts
Specially structured friction surface for maximum holding force at high accelerations, especially on oily surfaces
Very good adaptation to different workpiece contours due to high stroke of the suction cup
Flexible sealing lip seals very well even on curved workpiece surfaces

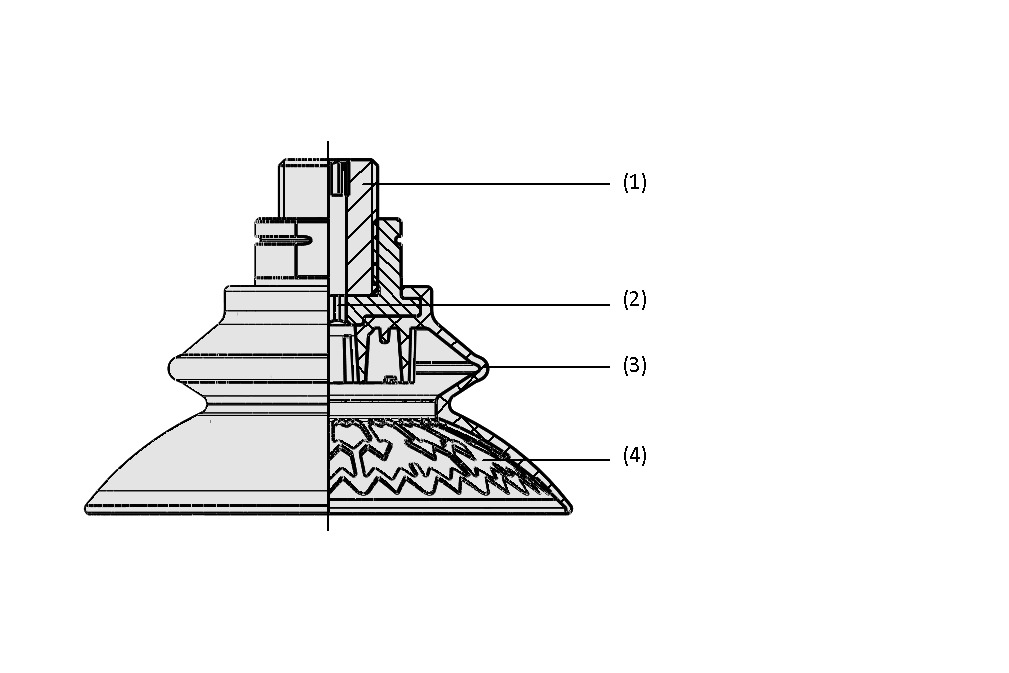

Design
Design
- Round bellows suction cup (3) made of wear-resistant material Elastodur (ED-85)
- Flexible sealing lip with structured friction surface (4)
- Connection nipple made of aluminum positively overmolded (2)
- Available as mounted suction cup with different connection types and wrench flat for easy and quick assembly (1)
Technical Data
Technical Data
- Dimensions: 20 mm to 120 mm
- Material: ED-85
- Connection nipple securely positively connected
Documentation
Documentation
The matching documentation for this product is available in this section.
| Documents | Language |
|---|---|
| English |
