| Connection 1 | Ball head 32 mm |
| Shape | Ejector connection |
| Width B | 35 (mm) |
| Vacuum connection | G1/4"-F |
| Suction cup connection | M10-F |

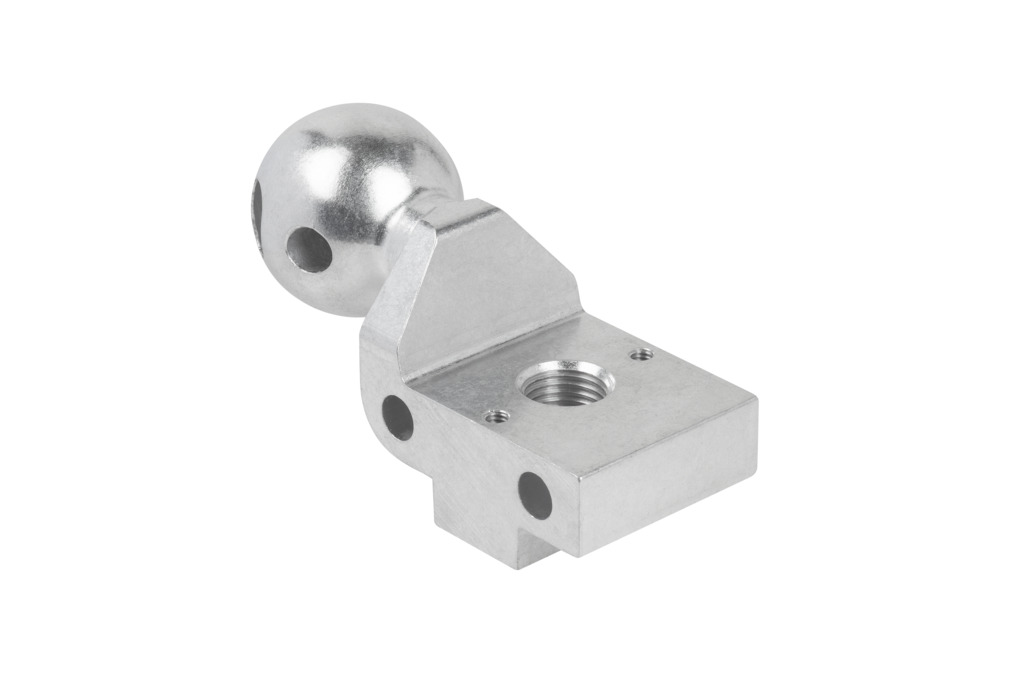

Holders for Suction Cups HT-SG E
Suction cup connection for G-, NPT-, M-threads and rectangular adapters
Flexible use on tooling traverses, fast exchange and short set-up times
Thanks to lightweight aluminium construction suitable for dynamic processes and high throughputs
Versatile use for vacuum suction cups with various G, NPT, M threads and rectangular adapters (quick-change system)
Customer-specific configuration, including decentralised vacuum generators, sensors and suction cups
Design
Design
- Version HT-SG...E (external vacuum generation)
- Connection for tooling beams: Ball (A3: ø 28.5 mm; A5: ø 32 mm) or "Apple-Core" cylinder (A2: ø 19 mm) (1)
- Connection for vacuum suction cups (2), vacuum switches and decentralized vacuum generator of type SEAC (3)
- Optional: Connection for external vacuum generator (3) instead of vacuum generator type SEAC
Technical Data
Technical Data
- Mounts for vacuum suction cups with connections for G, NPT and M threads and right-angled adapters
- Mountings for decentralized vacuum generators
Documentation
Documentation
The matching documentation for this product is available in this section.
| Documents | Language |
|---|---|
| English |
1 - 10 from 27 results
| Connection 1 | Ball head 32 mm |
| Shape | Ejector connection |
| Width B | 35 (mm) |
| Vacuum connection | G1/4"-F |
| Suction cup connection | NPT1/4-M |
| Connection 1 | Ball head 28.5 mm |
| Shape | Ejector connection |
| Width B | 35 (mm) |
| Vacuum connection | G1/4"-F |
| Suction cup connection | G1/4"-M |
| Connection 1 | Ball head 32 mm |
| Shape | Ejector connection |
| Width B | 35 (mm) |
| Vacuum connection | G1/4"-F |
| Suction cup connection | G1/4"-F |
| Connection 1 | Ball head 28.5 mm |
| Shape | Ejector connection |
| Width B | 35 (mm) |
| Vacuum connection | G1/4"-F |
| Suction cup connection | G1/4"-F |
| Connection 1 | Ball head 32 mm |
| Shape | Ejector connection |
| Width B | 35 (mm) |
| Vacuum connection | G1/4"-F |
| Suction cup connection | G3/8"-M |
| Connection 1 | Ball head 28.5 mm |
| Shape | Ejector connection |
| Width B | 35 (mm) |
| Vacuum connection | G1/4"-F |
| Suction cup connection | M16x1.5-F |
| Connection 1 | Bolt with slot Ø19mm |
| Shape | Ejector connection |
| Width B | 35 (mm) |
| Vacuum connection | G1/4"-F |
| Suction cup connection | G3/8"-M |
| Connection 1 | Ball head 32 mm |
| Shape | Ejector connection |
| Width B | 35 (mm) |
| Vacuum connection | G1/4"-F |
| Suction cup connection | G1/4"-M |
| Connection 1 | Bolt with slot Ø19mm |
| Shape | Ejector connection |
| Width B | 35 (mm) |
| Vacuum connection | G1/4"-F |
| Suction cup connection | G1/4"-F |
