Clamping Pieces with Extension SXT-CL-EXT
Pipe clamps 19, 25 and 40 mm, ball clamps 28.5 and 32 mm

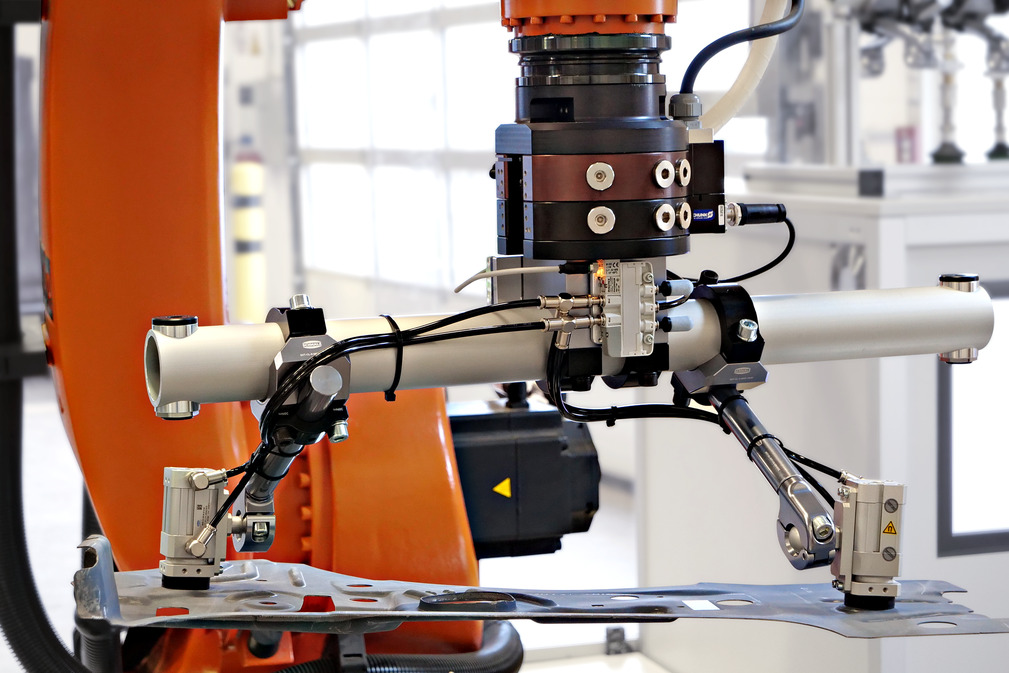

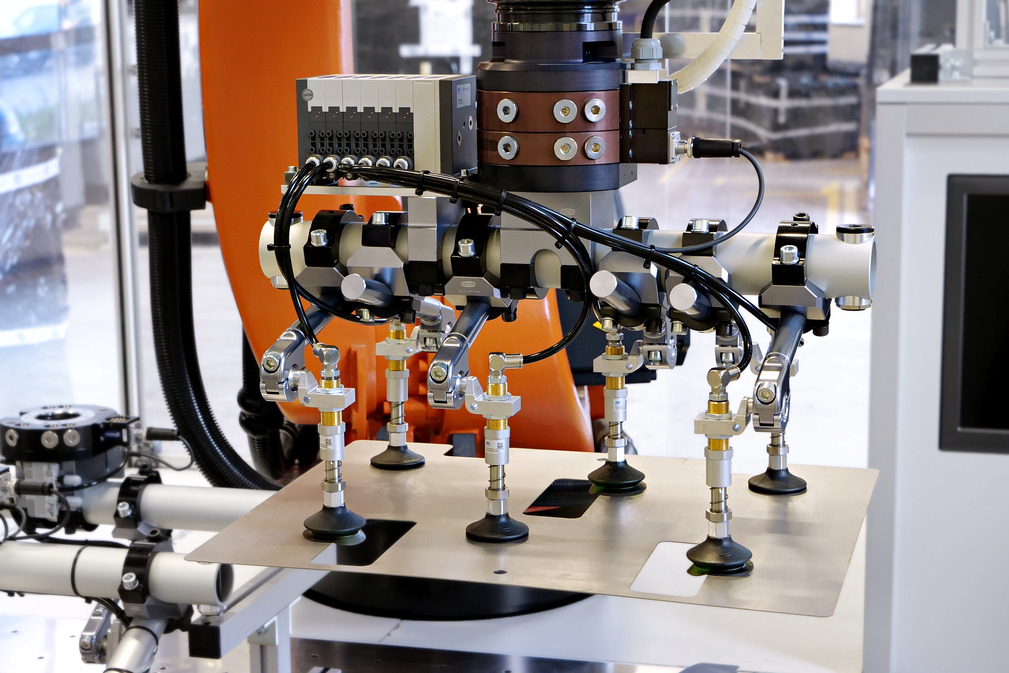

High-strength swivel arms with pipe and ball clamps on one or both sides for highly dynamic processes with maximum output quantity
Holder connection for standardized ball or pin shape enables a wide range of applications
Compatible with common tooling systems (pipe diameter 25 mm or via pipe clamp)
Design
Design
- Connection to holder system: clamp for ball (A3: ø 28.5 mm; A5: ø 32 mm) or "Apple-Core" pin (A2: ø 19 mm) (1)
- Pipe tooling connection: pipe clamp 25 or 40 mm (2)
- One-sided pipe clamp: tube extension with a 25 mm diameter (2)
Technical Data
Technical Data
- Single and double sided clamps
- With extension 100 to 510 mm
- For pipe diameters of 19 to 40 mm
- For ball joint connections with 28.5 to 32 mm diameter
Performance Data
Performance Data
MetricImperial
Documentation
Documentation
The matching documentation for this product is available in this section.
| Documents | Language |
|---|---|
| English |
