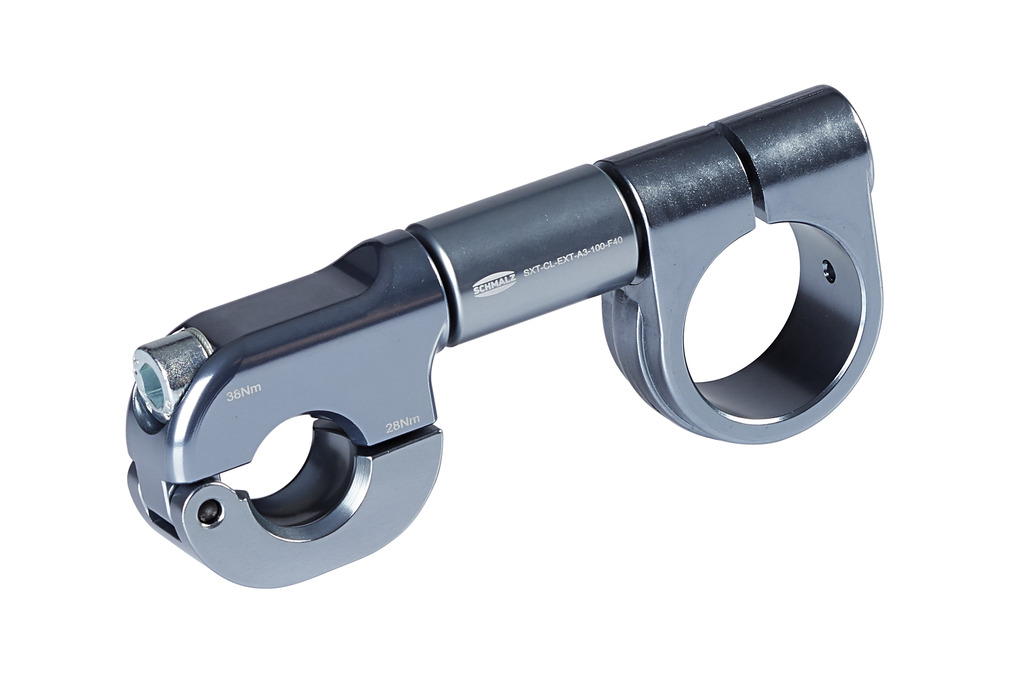

Part no.: 10.07.13.00204
Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 25 mm |
| D | 40 mm |
| d | 28.5 mm |
| H | 57 mm |
| H1 | 65 mm |
| H2 | 25.5 mm |
| H3 | 23.5 mm |
| L | 154.7 mm |
| L2 | 40 mm |
| X1 | 100 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Material | Aluminum |
| Shape | Female |
| Weight | 360 g |
| Product family | SXT |
