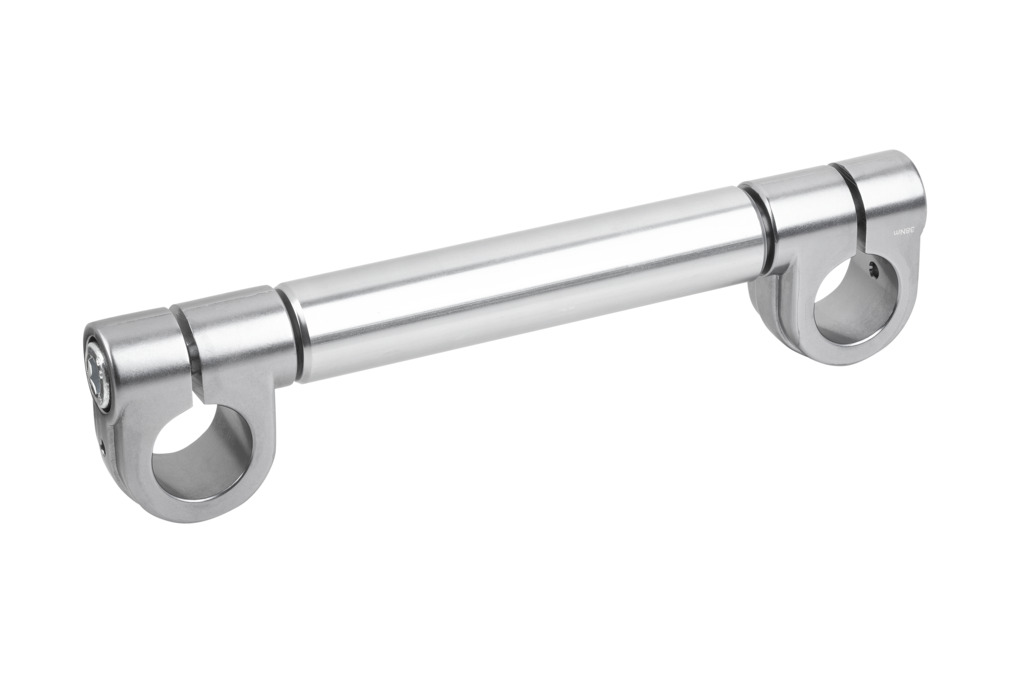

Part no.: 10.07.13.00088
Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 25 mm |
| D | 25 mm |
| d | 25 mm |
| H1 | 81 mm |
| H2 | 19.5 mm |
| H3 | 19.5 mm |
| L | 143.5 mm |
| L1 | 144 mm |
| L2 | 50 mm |
| X1 | 101 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Material | Aluminum |
| Shape | Female |
| Weight | 290 g |
| Product family | SXT |
