Mini Compact Valves SCPM EV
Max. flow rate: 33 l/min
Valve with automatic internal blow off for reduced wiring effort
Integrated valve and sensor functionalities for fast start of operations
Intelligent valves for monitoring evacuation time and leakage in vacuum systems

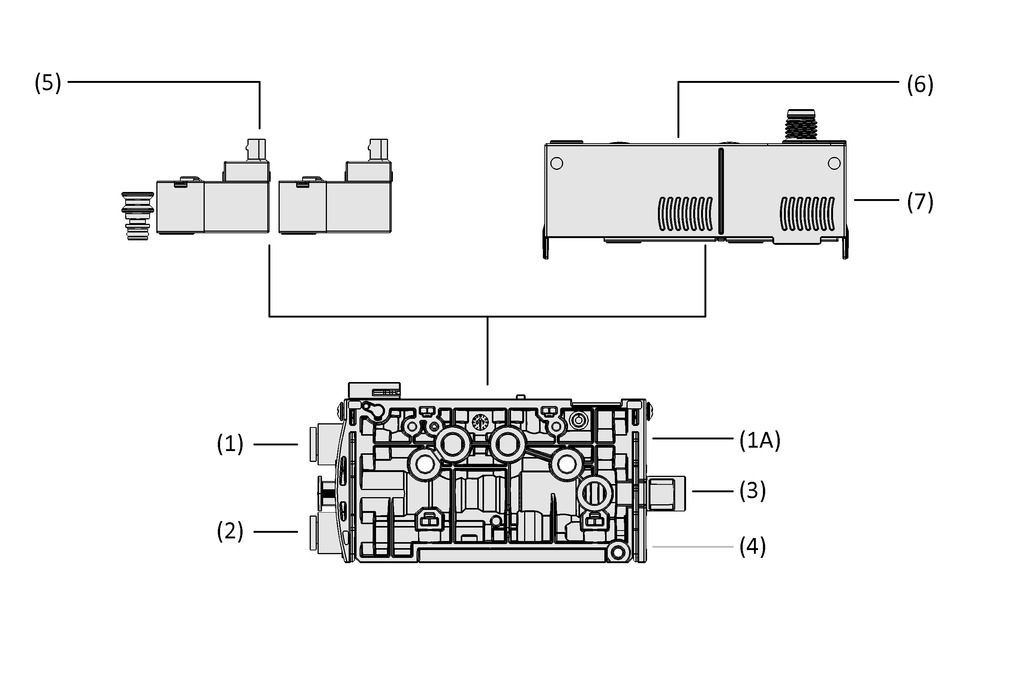

Design
Design
- Minimal footprint thanks to compact main body made from high-strength plastics with individual control module (7)
- 3-digit display with two-button operation and electrical connection M8, 6-pin plug (6)
- Pneumatic valves optionally integrated (6) or directly mounted (5) for switching function NO or NC
- Screw for adjusting blow off function (4)
- Compressed air connection (1) for pilot control and vacuum connection (2)
Technical Data
Technical Data
- Nominal flow: 2 m³/h (33 l/min)
- Main body made of plastic
Documentation
Documentation
The matching documentation for this product is available in this section.
| Documents | Language |
|---|---|
| English |
