Schmalz

  • NEW

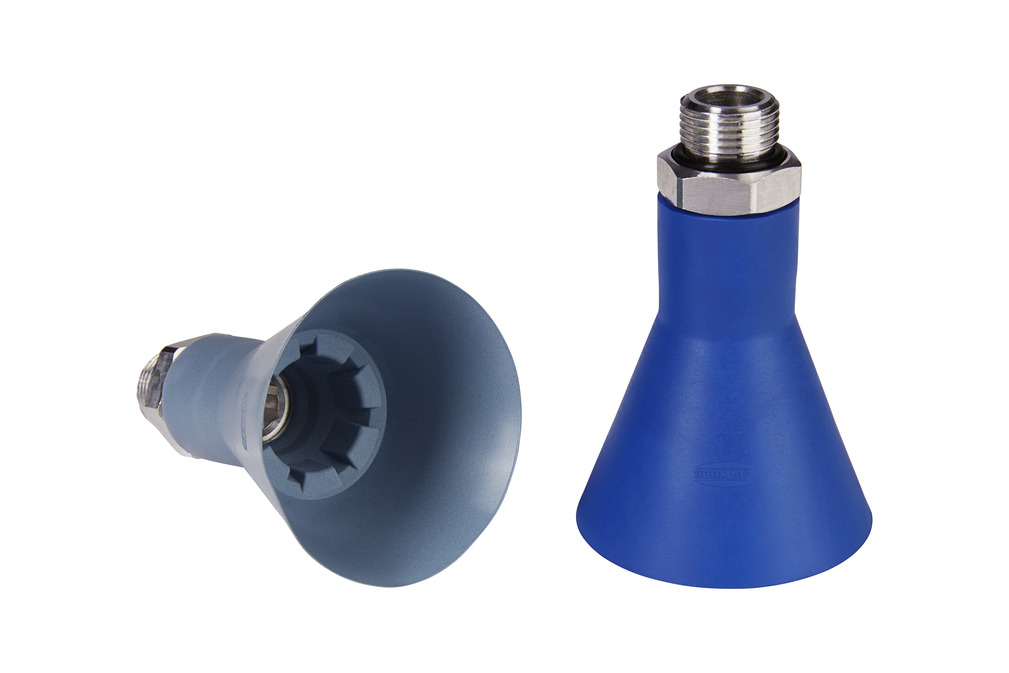

Bin-Picking Suction Cups SVE

Suction area (Ø) 53 mm

Extremely thin sealing lip for optimal adaptation to corners, edges and freeform surfaces

Stabilizing internal support contour for safe handling of different products

Large nominal flow compensates for leakages in a wide variety of workpieces

FDA compliant silicone for direct contact with food products

Design
  • Suction cup (1) with extremely thin, soft sealing lip
  • Internal support contour for best possible adaptation to the workpiece
  • Use of one-piece insertable connection elements (2) for quick changing of the suction cup
  • Connection element with male thread and integrated seal
Technical Data
  • Diameter: 33 mm and 53 mm
  • Material: PU, SI-MD (use in the food industry)
Documentation

The matching documentation for this product is available in this section.

DocumentsLanguage
English
