Part no.: 10.01.19.00258

Product information

Design Data

Design image

Attribute	Value
dn	10.3 mm
Ds	52.1 mm
G1	G3/8"-M
H	68 mm
LG1	10 mm
SW1	22 mm

Technical Data

Attribute	Value
Suction cup material	Silicone SI metal detectable
Material hardness [Shore A]	55 Shore A
Size	53
Product family	SVE

Note: Suction force: The suction force values are theoretical values at -0.6 bar vacuum and a dry, smooth and even workpiece surface – they are specified without safety factors. Hose inner diameter: The recommended hose diameter refers to a hose length of approx. 2 m

Documentation

Spare parts

SVE 53 SI-MD-55 SC080

NEW

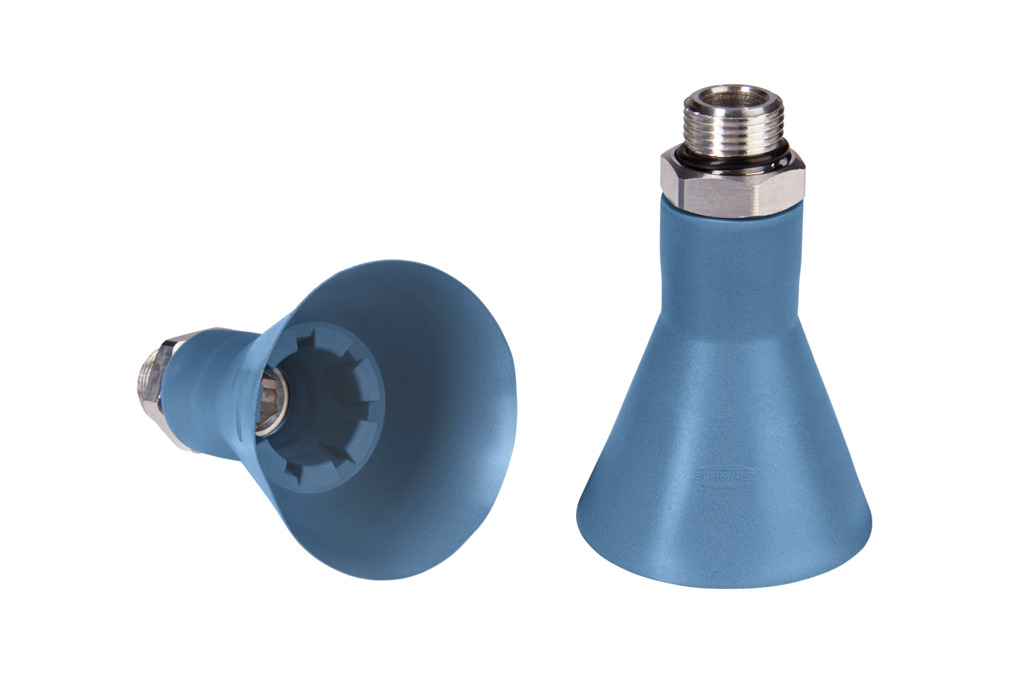

SVE 53 SI-MD-55 SC080 10.01.19.00255 Suction cup f. bin-picking processes with optimum adaptation to a wide range of workpieces

Size	53
Suction cup material	Silicone SI metal detectable
Material hardness [Shore A]	55 (Shore A)
Nipple family	SC 080

SC 080 G3/8-AG

SC 080 G3/8-AG 10.01.06.02593 Connection element for suction cup "SchmalzConnector"

Connection type	080
Vacuum connection	G3/8"-M
Length L1	32 (mm)
Fitting length	7.5 (mm)
Nominal diameter dn	10.3 (mm)
