Part no.: 10.01.06.03548

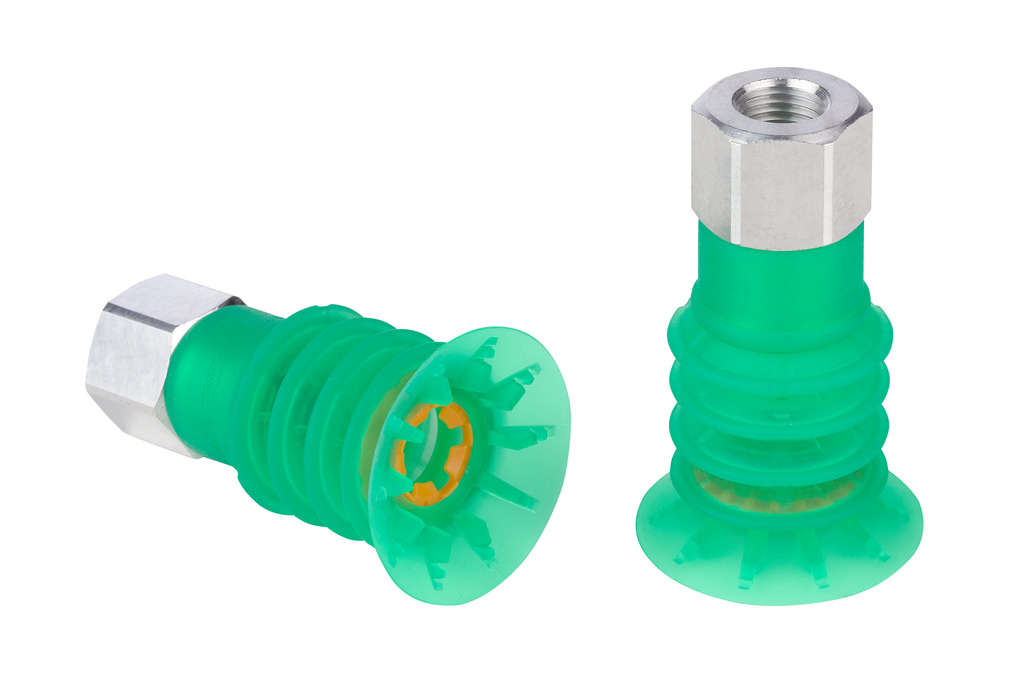

Bellows suction cup (round) for very uneven workpieces
| Size | 40 |
| Suction cup material | Silicone SI |
| Material hardness [Shore A] | 55 (Shore A) |
| Thread G1 | G1/4"-F |
| Number of folds | 4.5 |
| Attribute | Value |
|---|---|
| d2 | 15.3 mm |
| dn | 11 mm |
| Dmax(S) | 42 mm |
| Ds | 39.7 mm |
| G1 | G1/4"-F |
| H | 69.5 mm |
| LG1 | 12 mm |
| SW1 | 22 mm |
| Z (Stroke) | 18 mm |
| Attribute | Value |
|---|---|
| Suction force at -200 mbar | 6.8 N |
| Suction force at -400 mbar | 13.6 N |
| Suction force (-600mbar) | 20.4 N |
| Pull-off force | 23.8 N |
| Volume | 15.12 cm³ |
| Hose inner diameter (recom.) d | 9 mm |
| Number of folds | 4.5 |
| Suction cup material | Silicone SI |
| Material hardness [Shore A] | 55 Shore A |
| Weight | 31.3 g |
| Product family | SPB4f |
| Connection type | 080 |
| Length L1 | 32 (mm) |
| Fitting length | 17.5 (mm) |
| Nominal diameter dn | 11 (mm) |
| Size | 40 |
| Suction cup material | Silicone SI |
| Material hardness [Shore A] | 55 (Shore A) |
| Number of folds | 4.5 |
| Clamping range [mm] | 16.0 ... 27.0 mm |
| Material | Steel |
| Surface | galvanised |
