SAXM 115 ED-85 G3/8-AG

Part no.: 10.01.19.00062

Bell suction cup (round) for best adaptation to strongly curved surfaces

Size	115
Suction cup material	Elastodur ED
Material hardness [Shore A]	85 (Shore A)
Nipple material	Aluminum
Connection	G3/8-AG

Product information

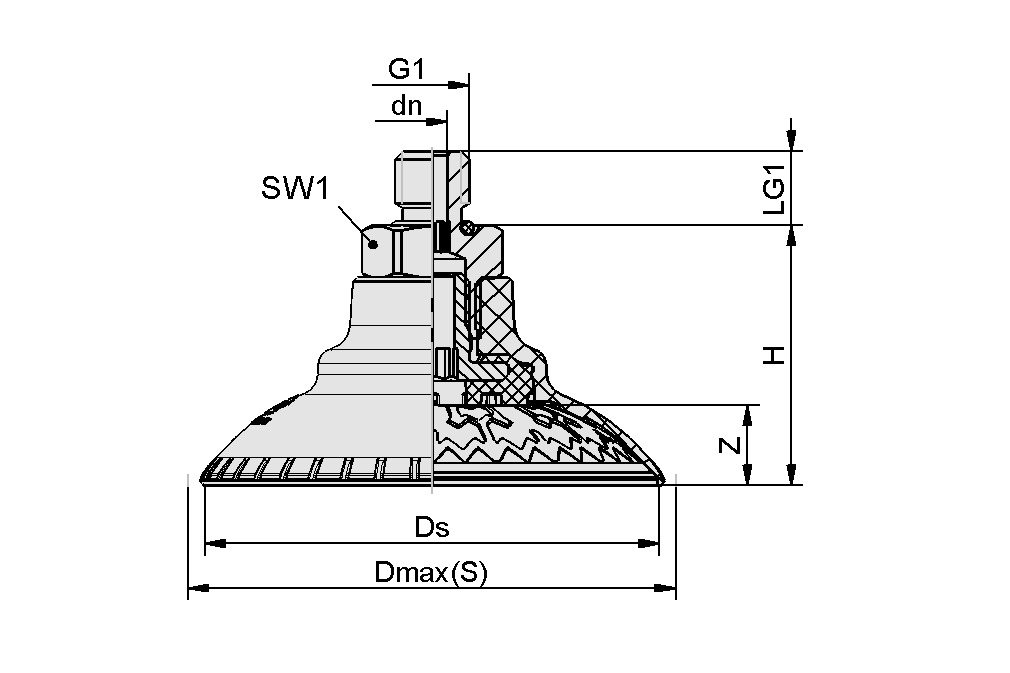

Design Data

Attribute	Value
dn	6.1 mm
Dmax(S)	129.4 mm
Ds	115.2 mm
G1	G3/8"-M
H	50.1 mm
LG1	10 mm
SW1	22 mm
Z (Stroke)	20 mm

Note: Acceptable dimensional tolerances for elastomer parts concerning to DIN ISO 3302-1 M3

Technical Data

Attribute	Value
Suction force (-600mbar)	549 N
Lateral force	320 N
Lateral force oily surface	584 N
Volume	141.5 cm³
Workpiece radius min. (convex)	50 mm
Hose inner diameter (recom.) d	6 mm
Size	115
Connection	G3/8"-M
Number of folds	0
Suction cup material	Elastodur ED
Material hardness [Shore A]	85 Shore A
Weight	94.4 g
Product family	SAXM

Note: Suction force: The specified suction forces are theoretical values at a vacuum of -0.6 bar and with a dry, smooth and even workpiece surface - they do not include a safety factor Lateral force: The specified lateral forces are values measured at a vacuum of -0.6 bar with a dry or oily, smooth, flat workpiece surface. Depending on the workpiece surface and its quality, the actual values may deviate from these values Hose diameter: The recommended hose diameter refers to a hose length of approx. 2 m
