SAXM 115 ED-85 SC065
Part no.: 10.01.19.00010
High-Speed bell shaped suction cup (round) very dynamic handling of smooth and oily workpieces
| Size | 115 |
| Suction cup material | Elastodur ED |
| Material hardness [Shore A] | 85 (Shore A) |

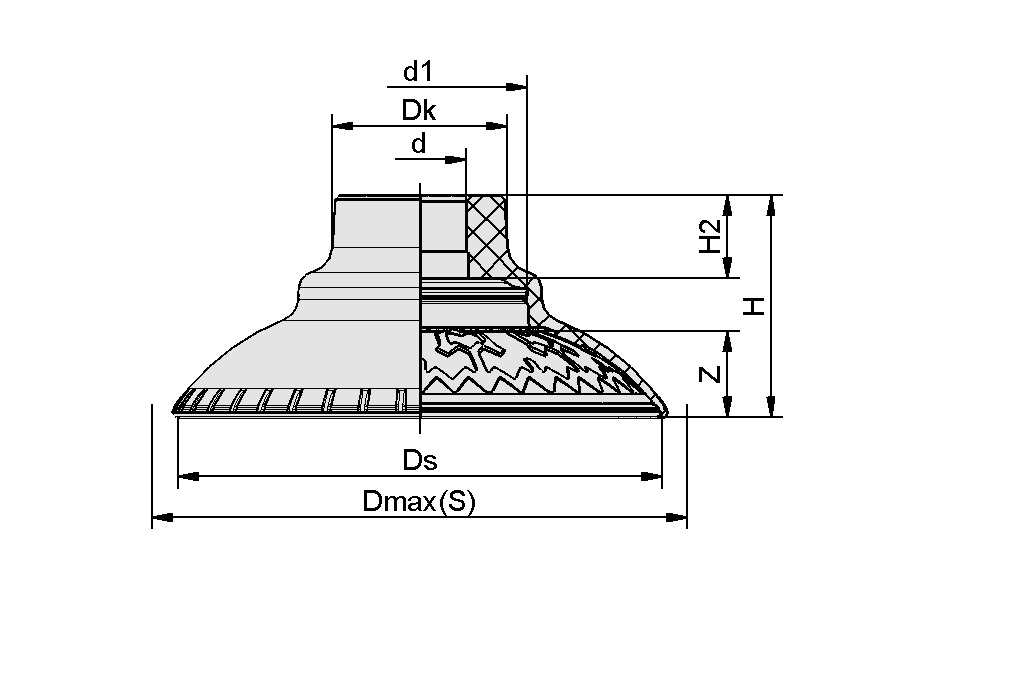

Design Data
Design Data
| Attribute | Value |
|---|---|
| d | 14 mm |
| d1 | 39.6 mm |
| Dk | 28.9 mm |
| Dmax(S) | 129.4 mm |
| Ds | 115.2 mm |
| H | 42.3 mm |
| H2 | 14.3 mm |
| Z (Stroke) | 20 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Suction force (-600mbar) | 549 N |
| Lateral force | 320 N |
| Lateral force oily surface | 584 N |
| Volume | 150.05 cm³ |
| Workpiece radius min. (convex) | 50 mm |
| Hose inner diameter (recom.) d | 6 mm |
| Size | 115 |
| Nipple family | SC 065 |
| Number of folds | 0 |
| Suction cup material | Elastodur ED |
| Material hardness [Shore A] | 85 Shore A |
| Weight | 52.7 g |
| Product family | SAXM |
