Bellows Suction Cups SAOB HT1 (Oval, 1.5 Folds)

Suction area (LxW) from 60 x 30 mm to 140 x 70 mm

Minimal chemical influence on the workpiece surface thanks to the non-marking special material HT1

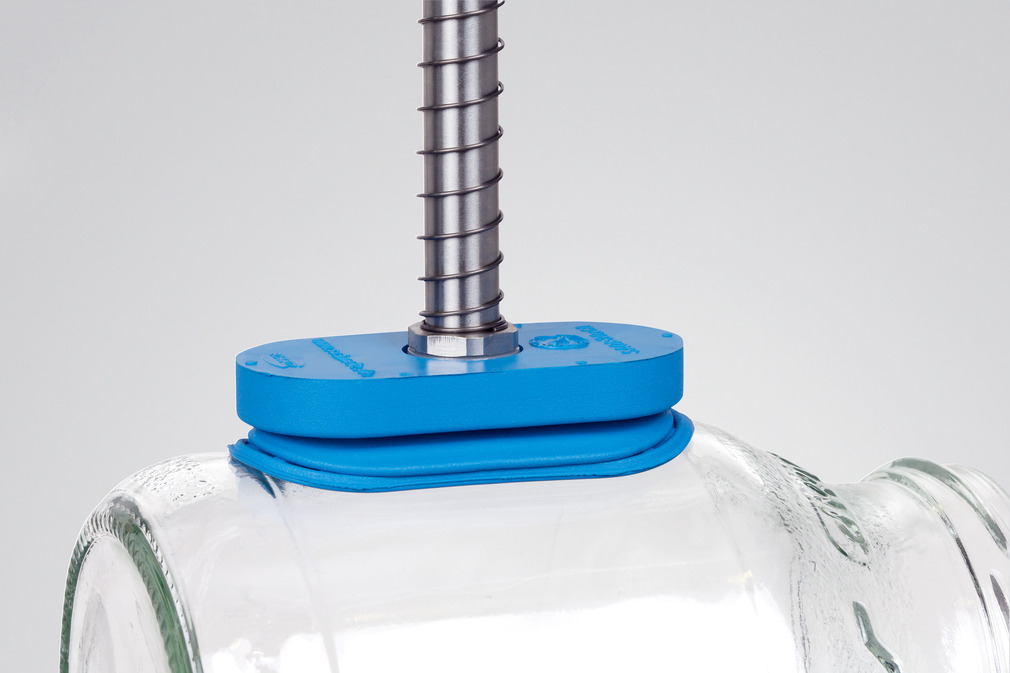

Handling of hot workpieces thanks to high temperature resistance

Structured inner support withstands the highest lateral forces, especially when used with separation powder and on wet workpieces

Design

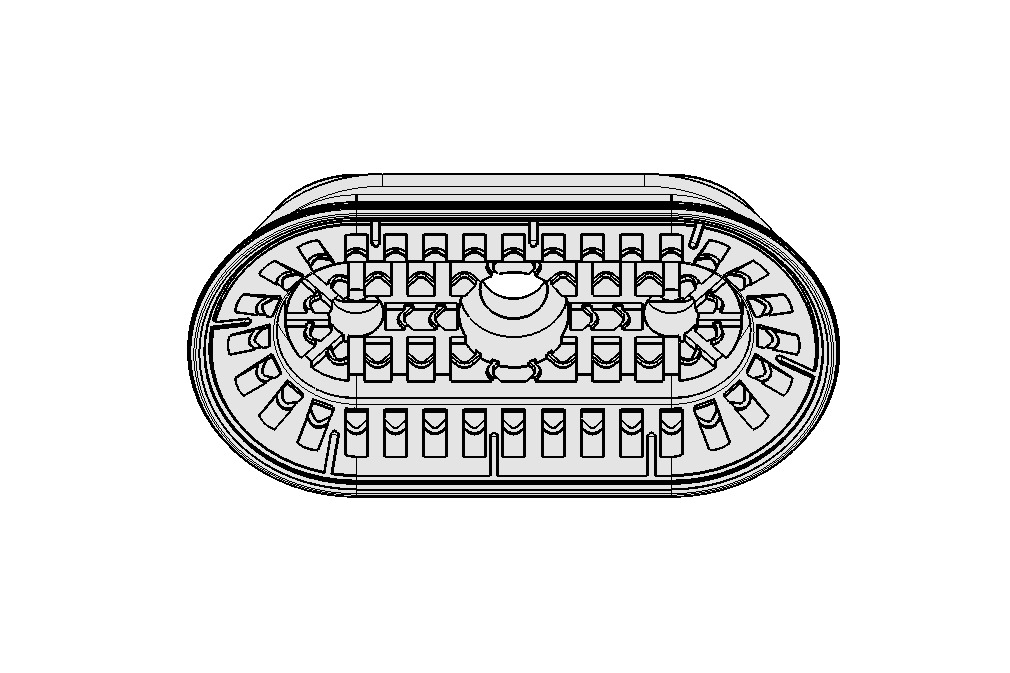

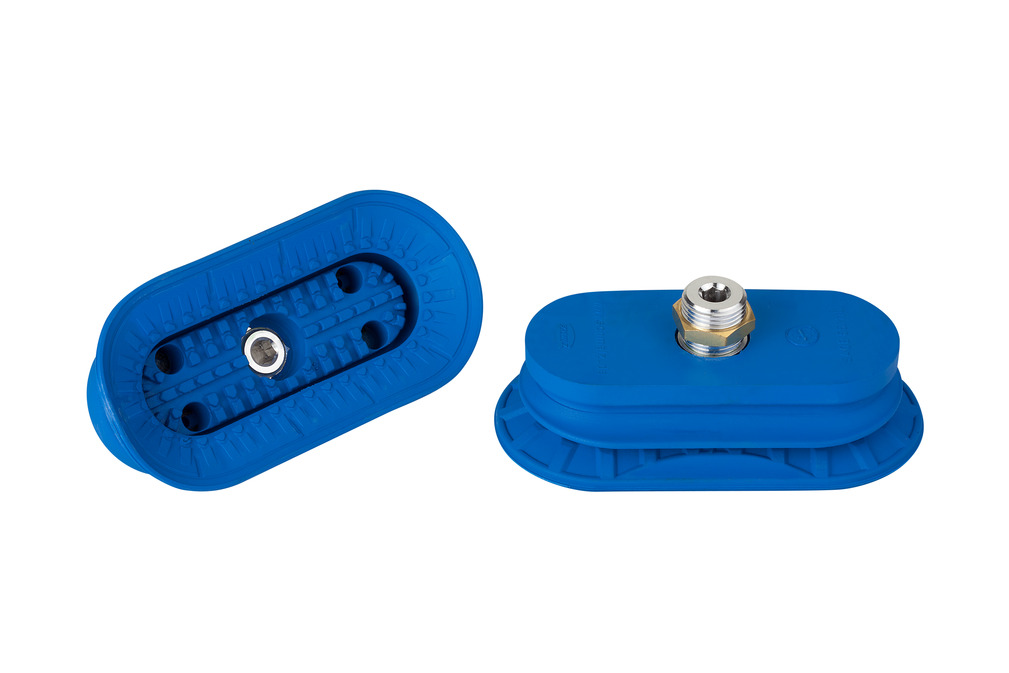

  • Robust wear-resistant oval bellows suction cup SAOB made of HT1 with 1.5 folds, with single sealing lip, special slot and inner support
  • Connection nipple glued to the reinforcing element of the suction cup (very high strength)
  • Special structure of the suction surface for high resistance to lateral forces
Technical Data
  • Dimensions: 60 x 30 to 140 x 70 mm
  • Material: HT1
  • Connection nipple vulcanized to elastomer part
