SGAN 16 SI-55 G1/8-AG

Part no.: 10.01.01.00810

Flat suction cup (round) for particularly sensitive workpieces

Size	16
Suction cup material	Silicone SI
Material hardness [Shore A]	55 (Shore A)
Connection	G1/8"-M

Product information

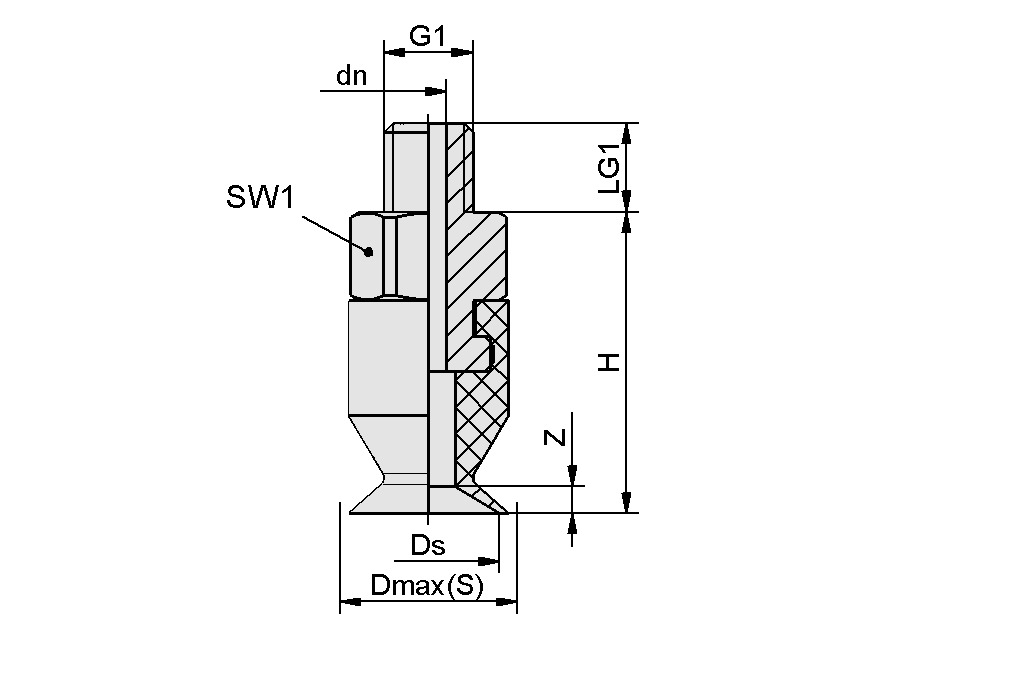

Design Data

Attribute	Value
dn	3 mm
Dmax(S)	17.5 mm
Ds	15 mm
G1	G1/8"-M
H	17 mm
LG1	8 mm
SW1	14 mm
Z (Stroke)	2 mm

Note: Acceptable dimensional tolerances for elastomer parts concerning to DIN ISO 3302-1 M3

Technical Data

Attribute	Value
Suction force (-600mbar)	6.9 N
Volume	0.61 cm³
Workpiece radius min. (convex)	15 mm
Hose inner diameter (recom.) d	4 mm
Size	16
Nipple family	N 029
Suction cup material	Silicone SI
Material hardness [Shore A]	55 Shore A
Weight	5.7 g
Number of folds	0
Product family	SGAN

Note: Suction force: The suction force values are theoretical values at -0.6 bar vacuum and a dry, smooth and even workpiece surface – they are specified without safety factors. Hose inner diameter: The recommended hose diameter refers to a hose length of approx. 2 m
