SGA 16 SI-55 N029

Part no.: 10.01.01.00452

Flat suction cup (round)

Size	16
Suction cup material	Silicone SI
Material hardness [Shore A]	55 (Shore A)

Product information

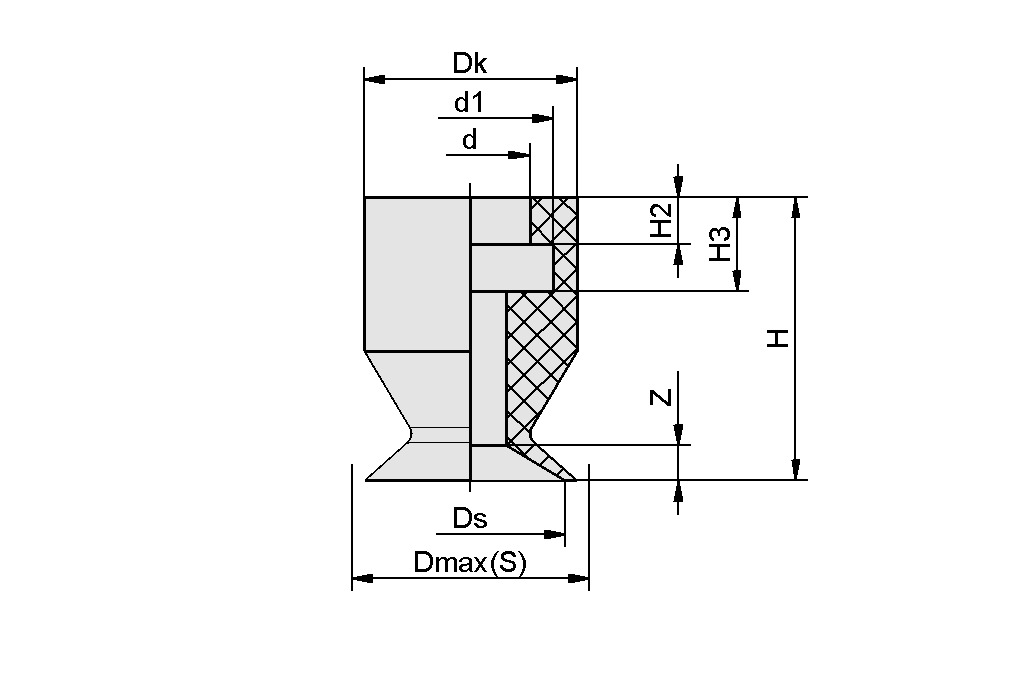

Design Data

Attribute	Value
d	9 mm
d1	12 mm
Dk	16 mm
Dmax(S)	17.5 mm
Ds	15 mm
H	12 mm
H2	2 mm
H3	4 mm
Z (Stroke)	2 mm

Note: Acceptable dimensional tolerances for elastomer parts concerning to DIN ISO 3302-1 M3

Technical Data

Attribute	Value
Size	16
Suction cup material	Silicone SI
Suction force (-600mbar)	6.9 N
Material hardness [Shore A]	55 Shore A
Volume	0.61 cm³
Workpiece radius min. (convex)	15 mm
Number of folds	0
Weight	1.1 g
Product family	SGA

Note: Suction force: The suction force values are theoretical values at -0.6 bar vacuum and a dry, smooth and even workpiece surface – they are specified without safety factors. Hose inner diameter: The recommended hose diameter refers to a hose length of approx. 2 m
