RED-NIP G1/4-AG M10x1.25-AG AL10.01.01.12194Reduction nipple with hexagon
| Thread G1 | G1/4"-M |
| Material | Aluminum |
SHF 70 NK-45 M10x1.25-IG E
Part no.: 10.01.01.12165

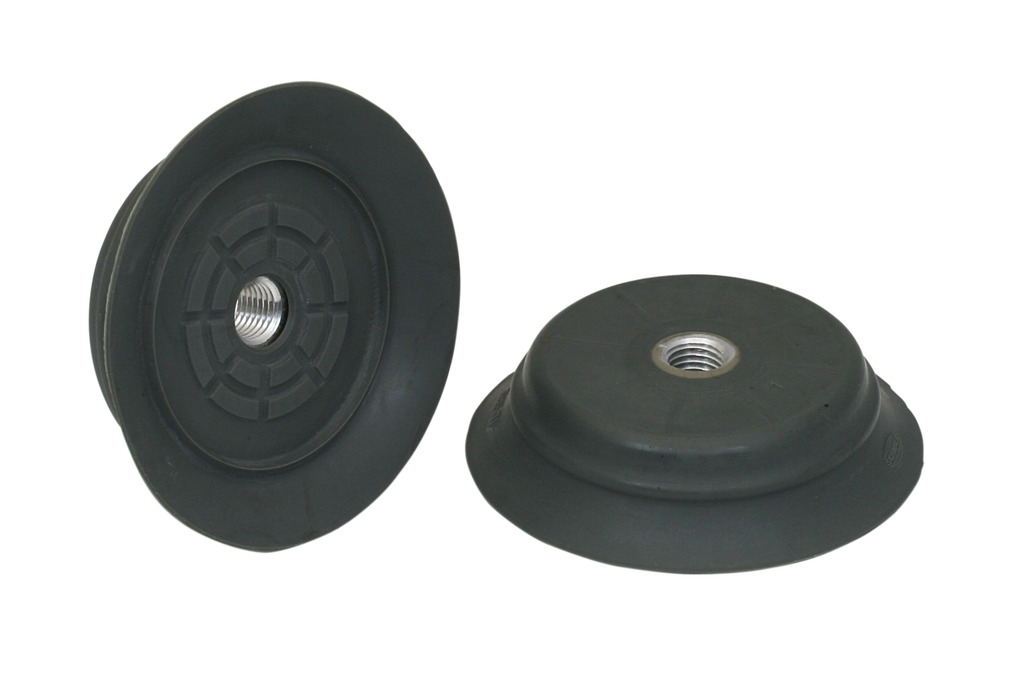

Flat suction cup (round) for highly dynamic handling of wood
| Size | 70 |
| Thread G1 | M10x1.25-F |
| Suction cup material | Natural rubber NK |
| Material hardness [Shore A] | 45 (Shore A) |
| Type | E |

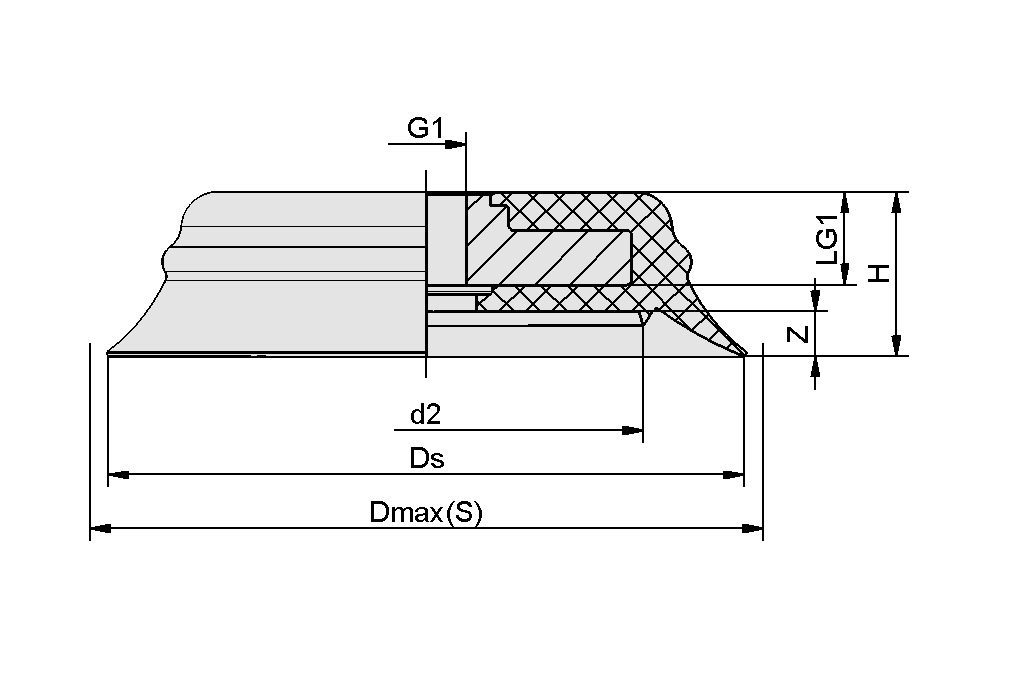

Design Data
Design Data
| Attribute | Value |
|---|---|
| d2 | 48 mm |
| Dmax(S) | 74 mm |
| Ds | 70 mm |
| G1 | M10x1.25-F |
| H | 18.1 mm |
| LG1 | 10 mm |
| Z (Stroke) | 4 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Size | 70 |
| Number of folds | 0 |
| Suction force (-600mbar) | 155 N |
| Suction cup material | Natural rubber NK |
| Volume | 16.1 cm³ |
| Weight | 52.5 g |
| Product family | SHF |
Documentation
Documentation
Accessories

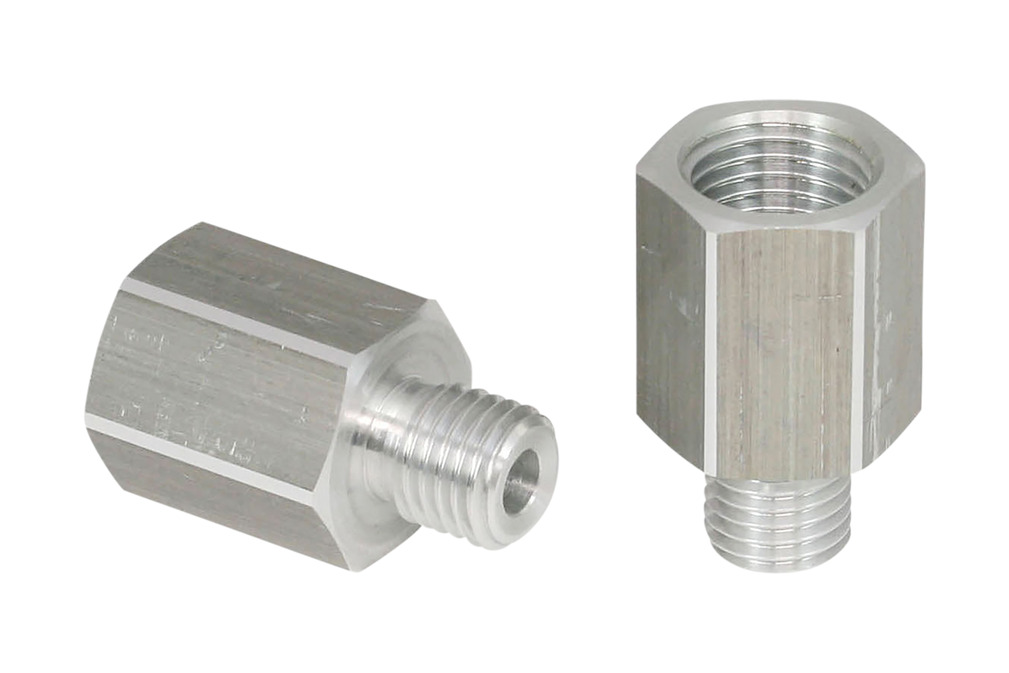

SA-NIP N009 G1/4-IG DN44010.01.01.12192Suction cup connection nipple
| Thread G1 | G1/4"-F |
| Fitting length | 19.3 (mm) |
| Material | Aluminum |

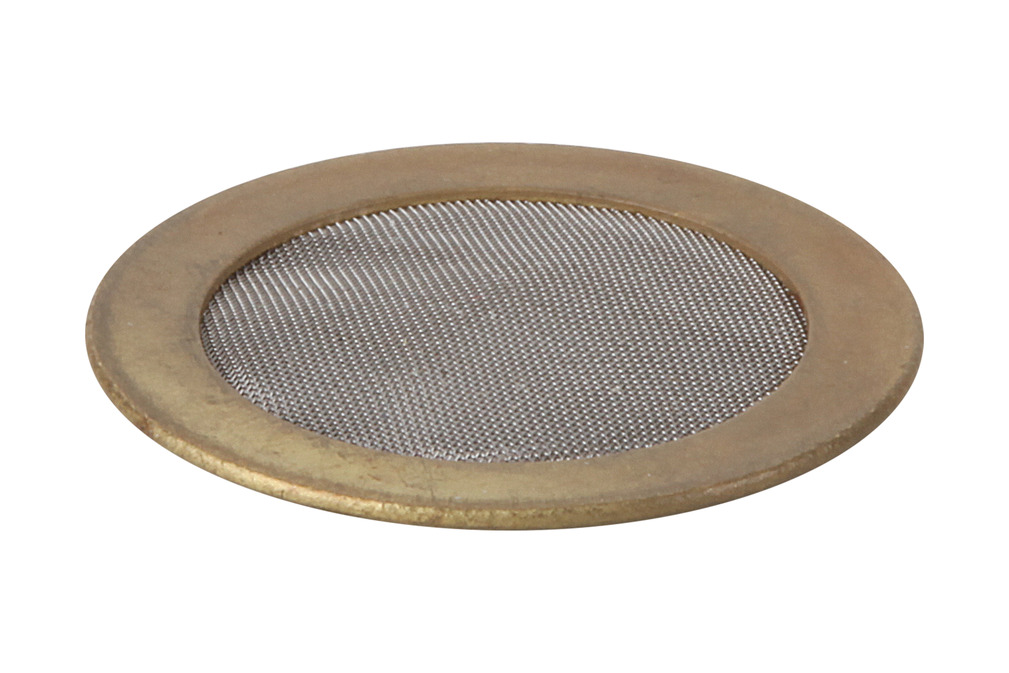

SIEB 14.5x1 MS-A2 0.103/0.1510.05.03.00023Screen protects the vacuum system
from contamination
| Outside diameter D | 14.5 (mm) |
| Length L | 1 (mm) |
| Material | Brass / stainless steel |
| Mesh size | 0.103 (mm) |
| Wire diameter | 0.15 (mm) |
TVN G1/4-AG 9 N00910.05.10.00065Connection nipple with integrated
touch valve
| Thread G1 | G1/4"-M |
| Thread G2 | M10x1.25-M |
| Spring stroke Z | 9 (mm) |
| Nipple | N 009 |
