SA-NIP N009 G1/4-IG DN440
Part no.: 10.01.01.12192
Suction cup connection nipple
| Thread G1 | G1/4"-F |
| Fitting length | 19.3 (mm) |
| Material | Aluminum |

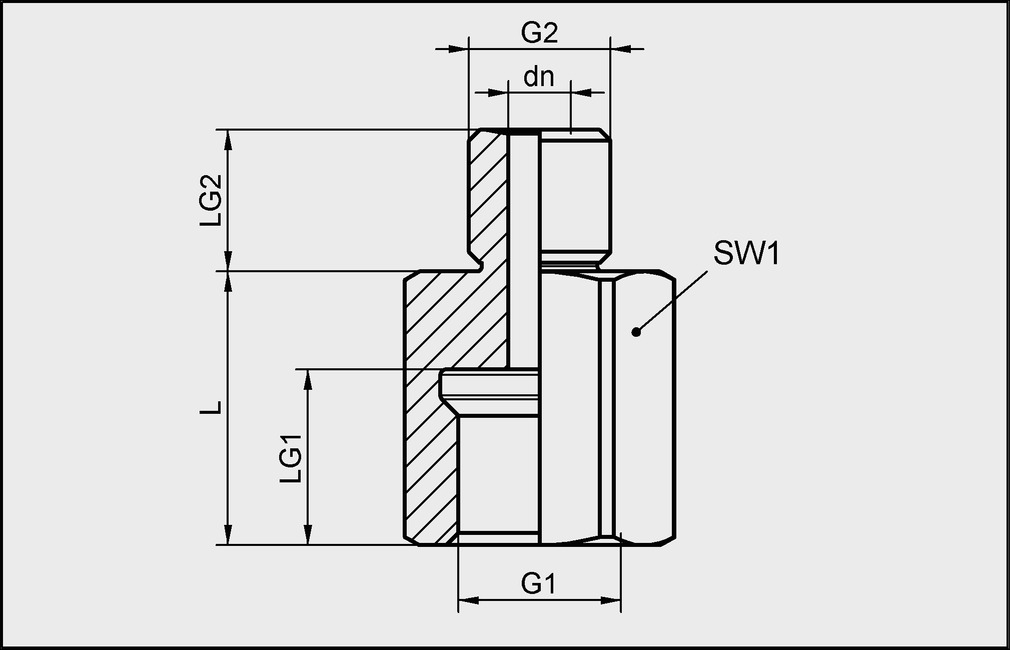

Design Data
Design Data
| Attribute | Value |
|---|---|
| dn | 4.4 mm |
| G1 | G1/4"-F |
| L | 19.3 mm |
| L2 | 10 mm |
| LG1 | 12 mm |
| SW1 | 17 mm |
| G2 | M10-M |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Nipple family | N 009 |
| Material | Aluminum |
| Weight | 9.9 g |
