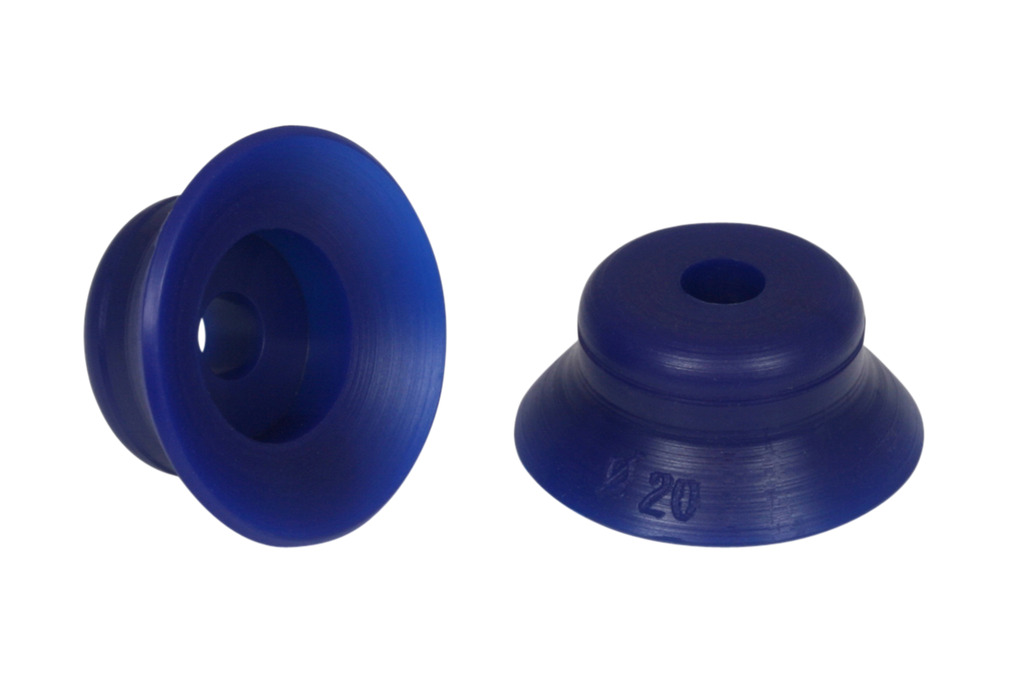

Part no.: 10.01.01.00052
Flat suction cup (round) for smooth or slightly rough surfaces
| Size | 20 |
| Suction cup material | Polyurethane PU |
| Material hardness [Shore A] | 55 (Shore A) |

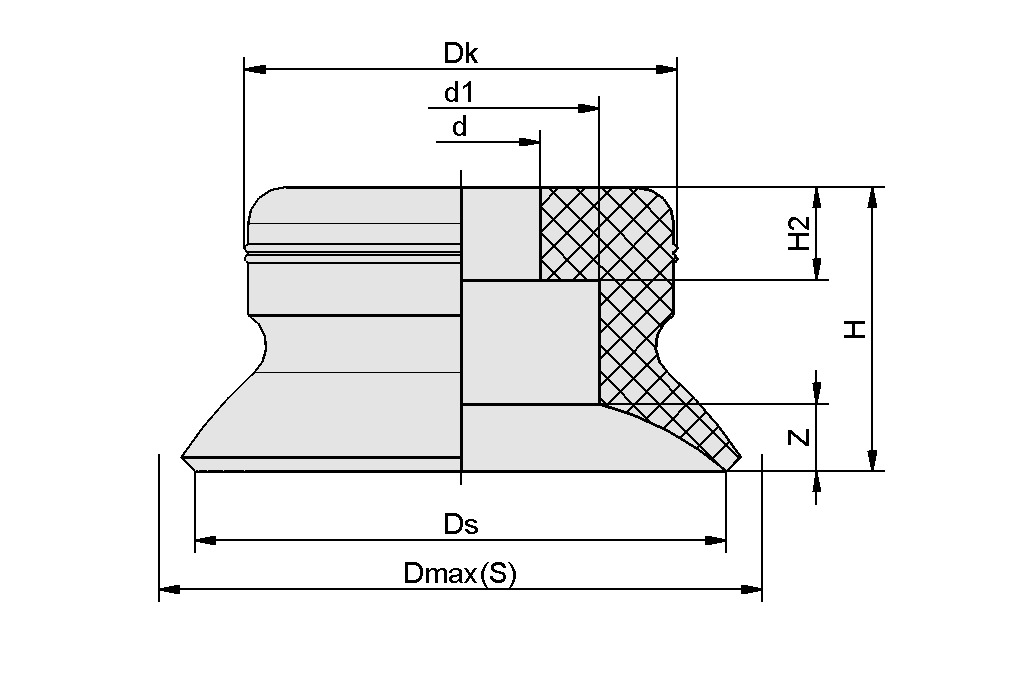

| Attribute | Value |
|---|---|
| d | 4.5 mm |
| d1 | 11 mm |
| Dk | 15.2 mm |
| Dmax(S) | 23 mm |
| Ds | 20 mm |
| H | 10 mm |
| H2 | 4.5 mm |
| Z (Stroke) | 2.2 mm |
| Attribute | Value |
|---|---|
| Suction force (-600mbar) | 15.5 N |
| Volume | 0.86 cm³ |
| Workpiece radius min. (convex) | 20 mm |
| Size | 20 |
| Nipple family | N 006 |
| Suction cup material | Polyurethane PU |
| Material hardness [Shore A] | 55 Shore A |
| Weight | 1.5 g |
| Product family | PFG |

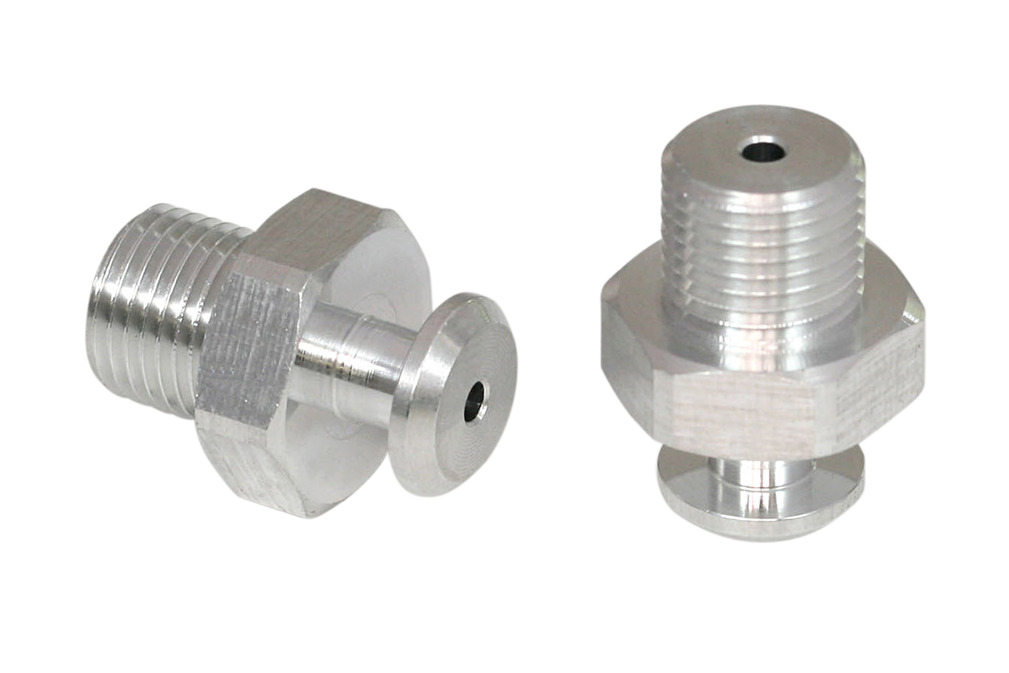

| Thread G1 | G1/8"-M |
| Length L1 | 19.5 (mm) |
| Fitting length | 5 (mm) |
| Nominal size | 2.00 mm |
| Material | Aluminum |

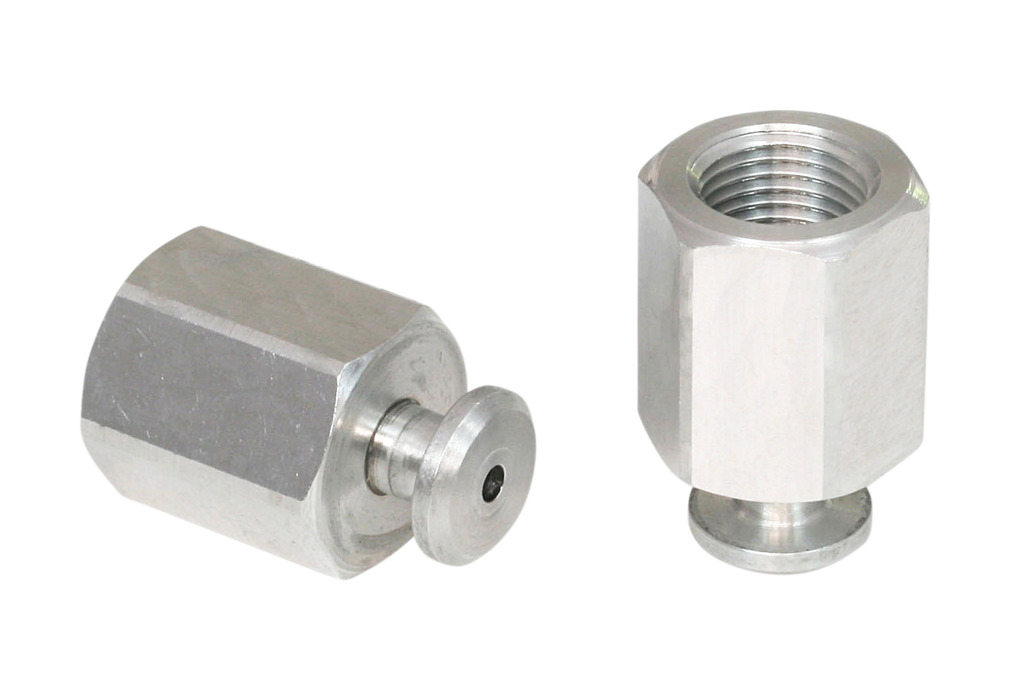

| Thread G1 | G1/8"-F |
| Length L1 | 22.5 (mm) |
| Fitting length | 16 (mm) |
| Nominal size | 2.00 mm |
| Material | Aluminum |
