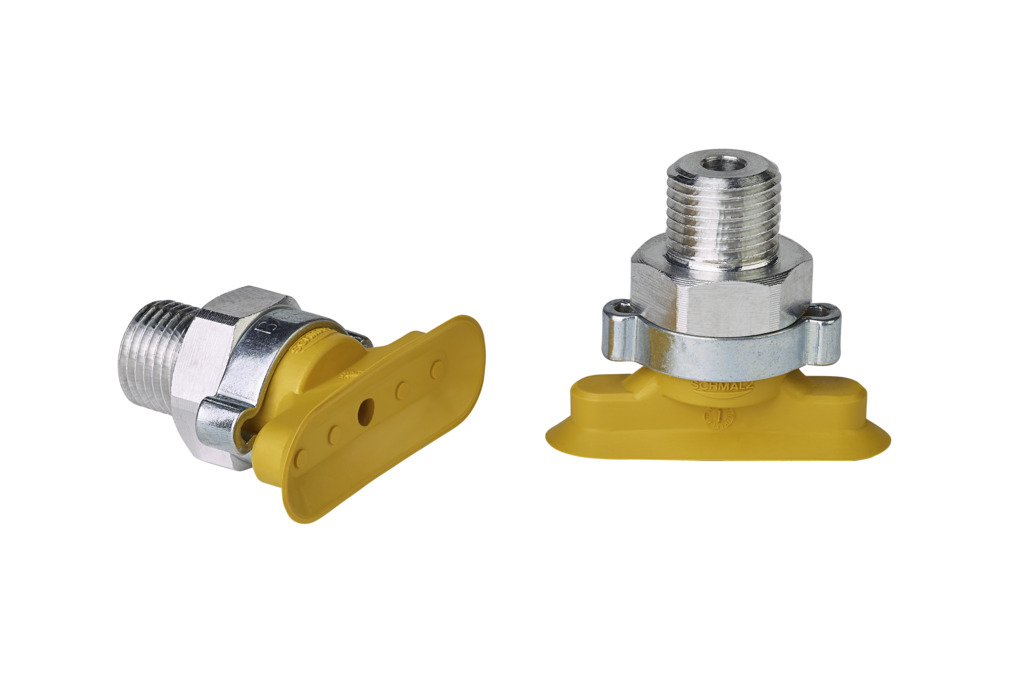

SGON 30x10 NBR-ESD-55 G1/8-AG

Part no.: 10.01.05.00947

Flat suction cup (oval) for long and also curved workpieces

Dimension (LxW)	30x10
Suction cup material	Nitrile rubber NBR-ESD
Material hardness [Shore A]	55 (Shore A)
Nipple material	Aluminum
Connection	G1/8"-M

Product information

Design Data

Attribute	Value
Bmax(S)	11.5 mm
Bs	9.4 mm
dn	2.5 mm
G1	G1/8"-M
H	17 mm
LG1	8 mm
Lmax.(S)	30.5 mm
Ls	29.4 mm
SW1	14 mm
Z (Stroke)	1.5 mm

Note: Acceptable dimensional tolerances for rubber parts concerning to DIN ISO 3302-1 M3.

Technical Data

Attribute	Value
Dimension (LxW)	30x10
Suction force (-600mbar)	12.2 N
Volume	0.52 cm³
Workpiece radius min. (convex)	7.5 mm
Hose inner diameter (recom.) d	4 mm
Number of folds	0
Suction cup material	Nitrile rubber NBR-ESD
Material hardness [Shore A]	55 Shore A
Weight	6.8 g
Product family	SGON

Note: Suction force: The suction force values are theoretical values at -0.6 bar vacuum and a dry, smooth and even workpiece surface – they are specified without safety factors. Hose inner diameter: The recommended hose diameter refers to a hose length of approx. 2 m
