Low spring forces for gently handling very fragile workpieces
Suitable for tight spaces and highly dynamic tasks thanks to its compact size
Internal damping spring protected against dirt and mechanical damage
Very responsive plunger motion for high process safety
Vacuum connection via beam with integrated vacuum feed or rigid hose connection for strain-free movement
Design
Design

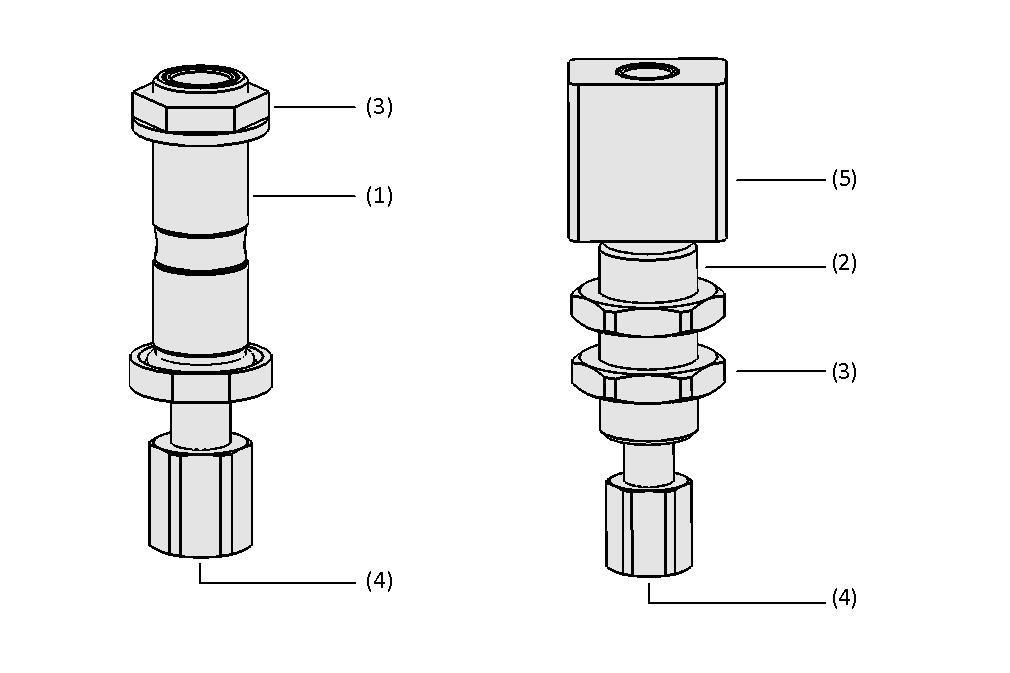

- Modular spring plunger for mounting to vacuum-guiding section (1) or to screw in with a M10 thread (2)
- Lock nuts (3) for mounting
- Suction cup connector (4) for mounting suction cups
- Vacuum connection thread (5)
Technical Data
Technical Data
- Modular suction cup connection
- Stroke: 5 to 10 mm
- Internal damping spring
- Cartridge design
Documentation
Documentation
The matching documentation for this product is available in this section.
Documents | Language |
---|---|
English |
