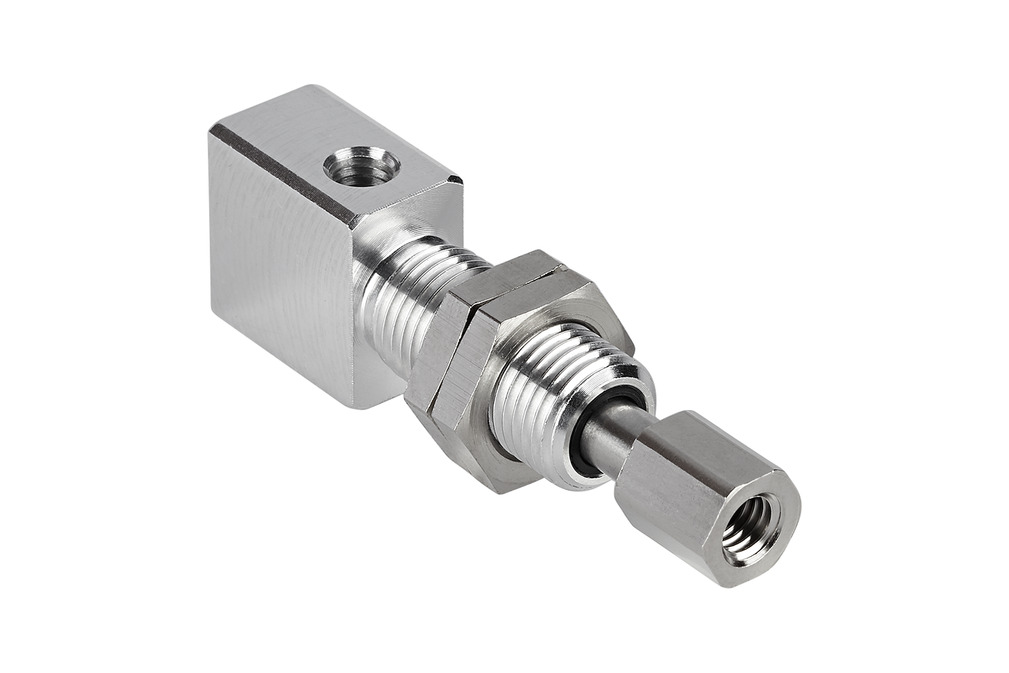

Part no.: 10.01.02.01686

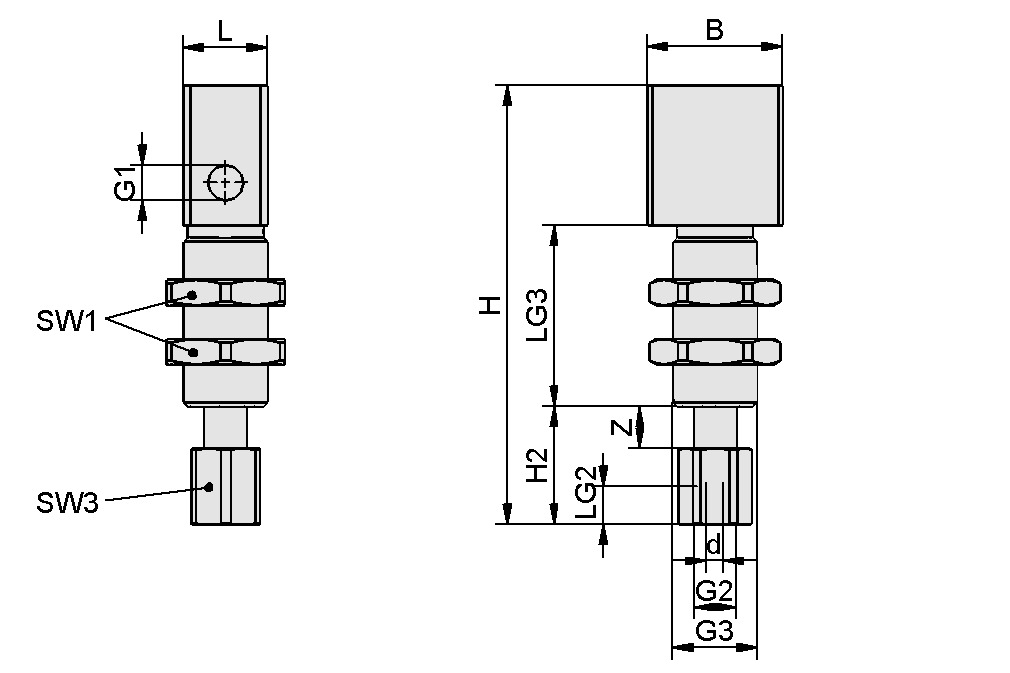

| Attribute | Value |
|---|---|
| B | 16 mm |
| d | 2 mm |
| G1 | M5-F |
| G2 | M5-F |
| G3 | M10x1-M |
| H | 52 mm |
| H2 | 14 mm |
| L | 10 mm |
| LG2 | 4.1 mm |
| LG3 | 21.5 mm |
| SW1 | 14 mm |
| SW3 | 8 mm |
| Z (Stroke) | 5 mm |
| Attribute | Value |
|---|---|
| Shape mounting elements | (electrically) conductive |
| Spring force center | 0.45 N |
| Spring rate | 0.06 N/mm |
| Spring pretension | 0.31 N |
| Horizontal load | 1.5 N |
| Vertical load | 15 N |
| Tightening torque (max) | 4 Nm |
| Operating temperature | 10 ... 45 °C |
| Weight | 22.5 g |
| Product family | FSTIMC |
Design made easy!
Configure the FSTImc spring plunger including mounting element and associated suction cup to suit your application with ease using the new configurator from Schmalz! After the inquiry, you will receive the CAD model of the configuration and can implement this directly in the planning of the application.
| Thread G1 | M5-M |
| Outer hose diameter | 4 (mm) |
| Material | Brass |
| Operating temperature | -20 ... 80 °C |
| Outside diameter D | 7.9 (mm) |
| Length L | 15 (mm) |
| Thread G1 | M5-M |
| Outer hose diameter | 6 (mm) |
| Material | Brass |
| Operating temperature | -20 ... 80 °C |
| Outside diameter D | 9.9 (mm) |
| Length L | 18.8 (mm) |
| Pressure range (operating pressure) [bar] | bar |
| Length L | 20.8 (mm) |
| Height H | 13 (mm) |
| Thread G1 | M5-M |
| Length L | 47 (mm) |
| Connection 1 | Sliding block |
| Suction cup or spring plunger connection | Contour D10 and D16 |
| Shape | flat |
| Connection 1 | 30x30 |
| Suction cup or spring plunger connection | Contour D10 and D16 |
| Shape | angled |
| Connection 1 | 40x40 |
| Suction cup or spring plunger connection | Contour D10 and D16 |
| Shape | angled |
