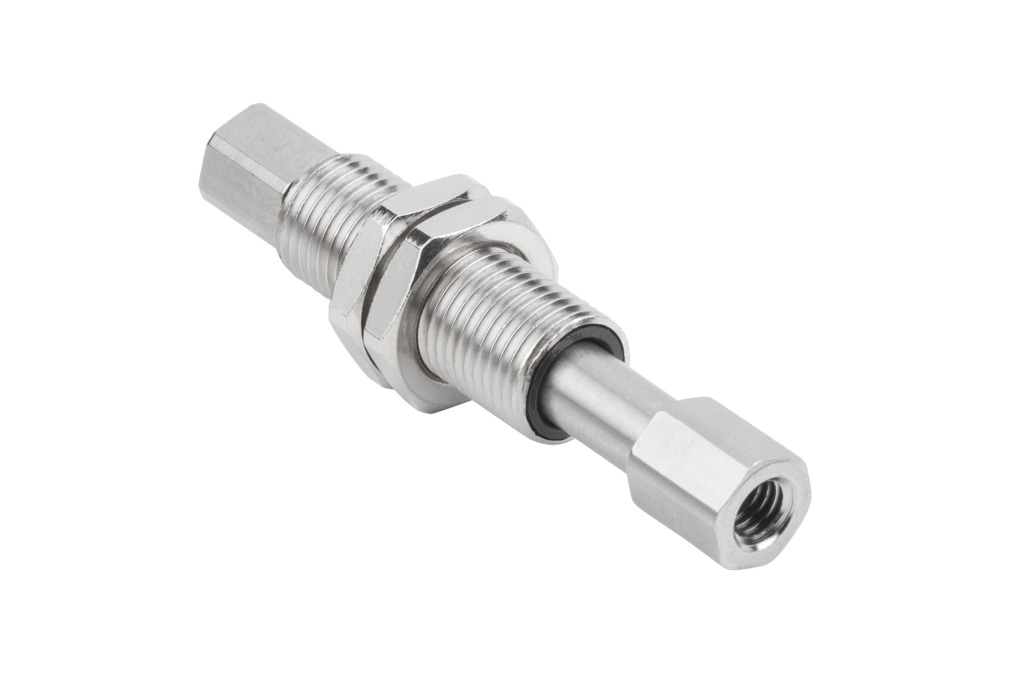

FSTIm M5-IG M5-IG A 20 IN
Part no.: 10.01.02.01477
Spring plunger with internal damping spring and height compensation
| Suction cup connection | M5-F |
| Product family | FSTIm |
| Shape | Axial vacuum guide |
| Spring stroke Z | 20 (mm) |
| Shape mounting elements | (electrically) insulating |
| Tightening torque (max) | 4 (Nm) |

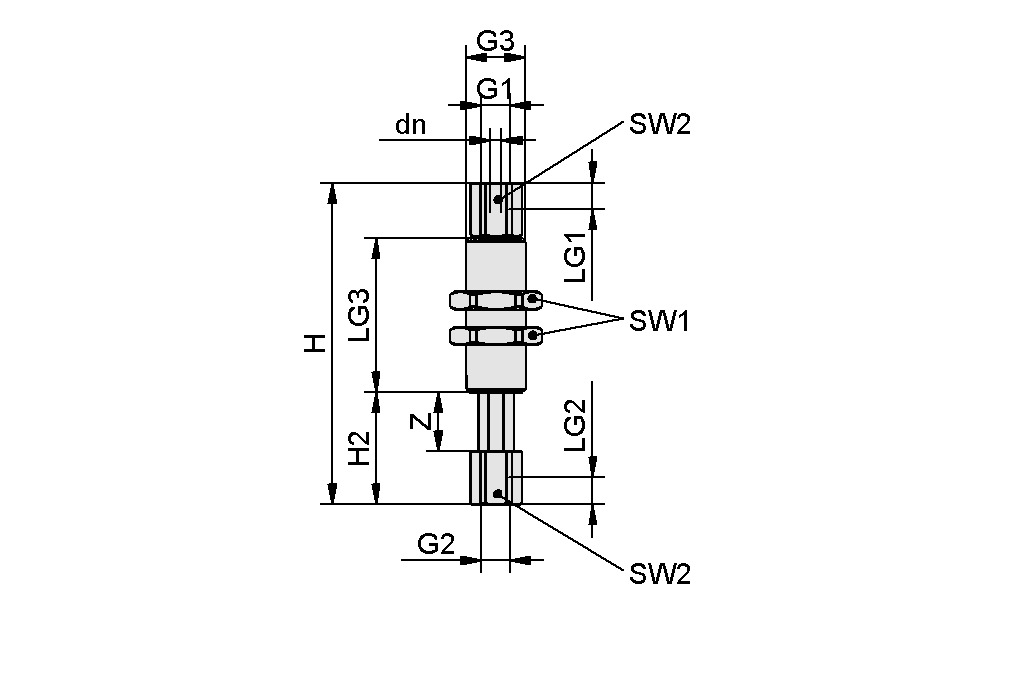

Design Data
Design Data
| Attribute | Value |
|---|---|
| dn | 2 mm |
| G1 | M5-F |
| G2 | M5-F |
| G3 | M10x1-M |
| H | 79.4 mm |
| H2 | 29 mm |
| LG1 | 4.5 mm |
| LG2 | 4.5 mm |
| LG3 | 41 mm |
| SW1 | 14 mm |
| SW2 | 8 mm |
| Z (Stroke) | 20 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Shape mounting elements | (electrically) insulating |
| Spring rate | 0.05 N/mm |
| Spring pretension | 0.5 N |
| Spring force center | 1.02 N |
| Vertical load | 15 N |
| Horizontal load | 10 N |
| Tightening torque (max) | 4 Nm |
| Weight | 23.5 g |
| Operating temperature | 0 ... 80 °C |
| Product family | FSTIm |
Documentation
Documentation
Accessories
HTR-STA 47 1N D10/16 FL10.08.03.00085Holder for flexible mounting of
suction cups/spring plungers on
sections
| Length L | 47 (mm) |
| Connection 1 | Sliding block |
| Suction cup or spring plunger connection | Contour D10 and D16 |
| Shape | flat |
HTR-STS 30x30 D10/16 WI10.08.03.00088Holder for flexible mounting of
suction cups/spring plungers on
square tubes
| Connection 1 | 30x30 |
| Suction cup or spring plunger connection | Contour D10 and D16 |
| Shape | angled |
HTR-STS 40x40 D10/16 WI10.08.03.00089Holder for flexible mounting of
suction cups/spring plungers on
square tubes
| Connection 1 | 40x40 |
| Suction cup or spring plunger connection | Contour D10 and D16 |
| Shape | angled |
