Part no.: 10.01.06.04336

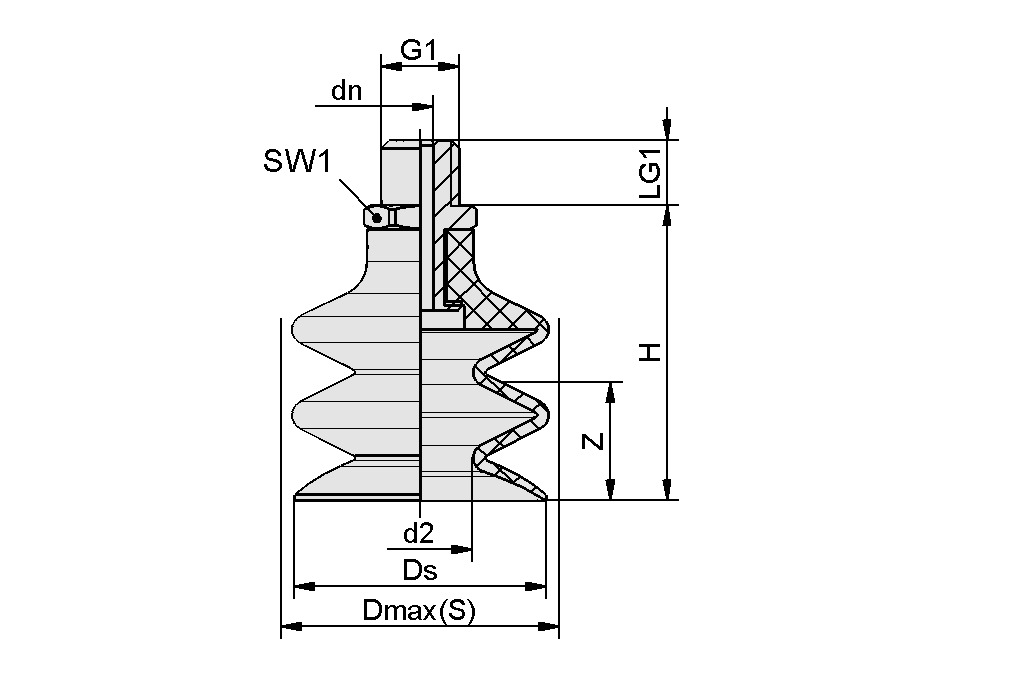

Design Data
Design Data
| Attribute | Value |
|---|---|
| d2 | 1.8 mm |
| dn | 2.5 mm |
| Dmax(S) | 7 mm |
| Ds | 5.9 mm |
| G1 | M5-M |
| H | 19 mm |
| LG1 | 5 mm |
| SW1 | 7 mm |
| Z (Stroke) | 3 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Suction cup material | Nitrile rubber NBR-ESD |
| Material hardness [Shore A] | 55 Shore A |
| Size | 7 |
| Number of folds | 2.5 |
| Connection | M5-AG |
| Workpiece radius min. (convex) | 7.5 mm |
| Volume | 0.04 cm³ |
| Suction force (-600mbar) | 0.15 N |
| Pull-off force | 0.9 N |
| Hose inner diameter (recom.) d | 2 mm |
| Weight | 1.6 g |
| Product family | FSG |
