Flexolink FLK

Connection thread G1/4" and G1/2"

All-round articulated mounting of suction cups and suction plates ideal for inclined workpiece surfaces

Automatic return to the neutral starting position by means of rubber-metal joint

Low swivel point of the suction cup minimizes wear when touching down on sloping surfaces

Vacuum-tight, heavy-duty design with integrated protection against damage

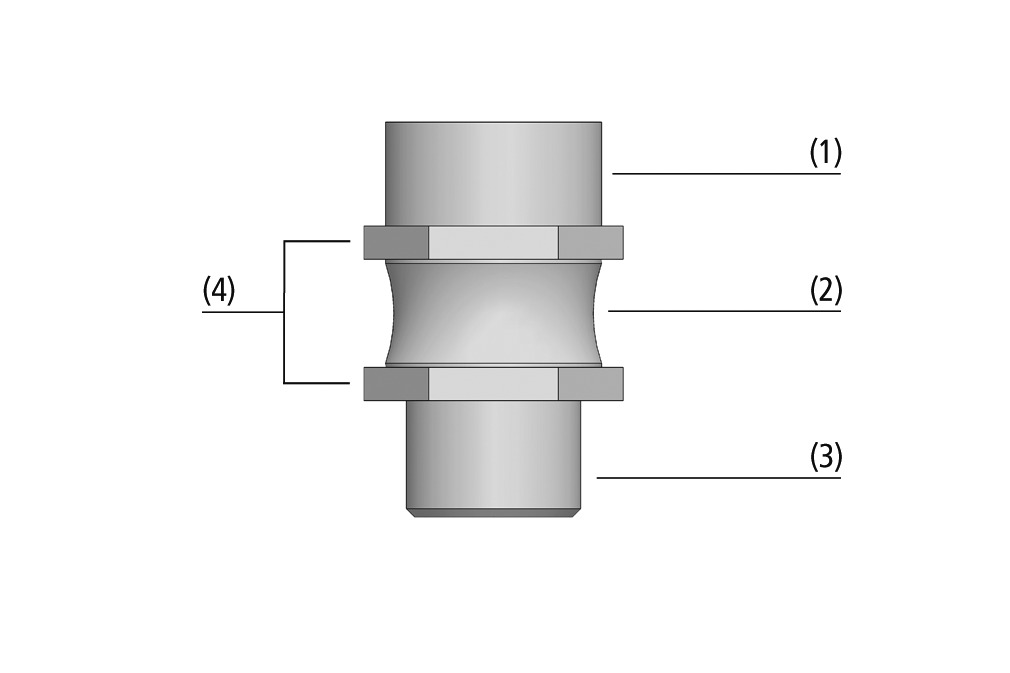

Design
  • Flexible mounting made of high-quality steel with a rubber buffer (vulcanized into position) as a joint (2)
  • Maximum deflection angle limited by a screw-in stop
  • Force is transferred via a shaped metal connection within the joint
  • Flats on upper and lower halves for damage free installation (4)
  • Connection thread for top connection (1) and (3) in various sizes
Technical Data
  • Connection: M10x1.25 to G1/2”
  • Deflection: max. 12°
  • Rubber buffer (vulcanised into position) as a joint
