Suction Plates SPU
- Diameter: 100 to 400 mm
- Material: NBR, SI
- Supporting plate made of aluminum

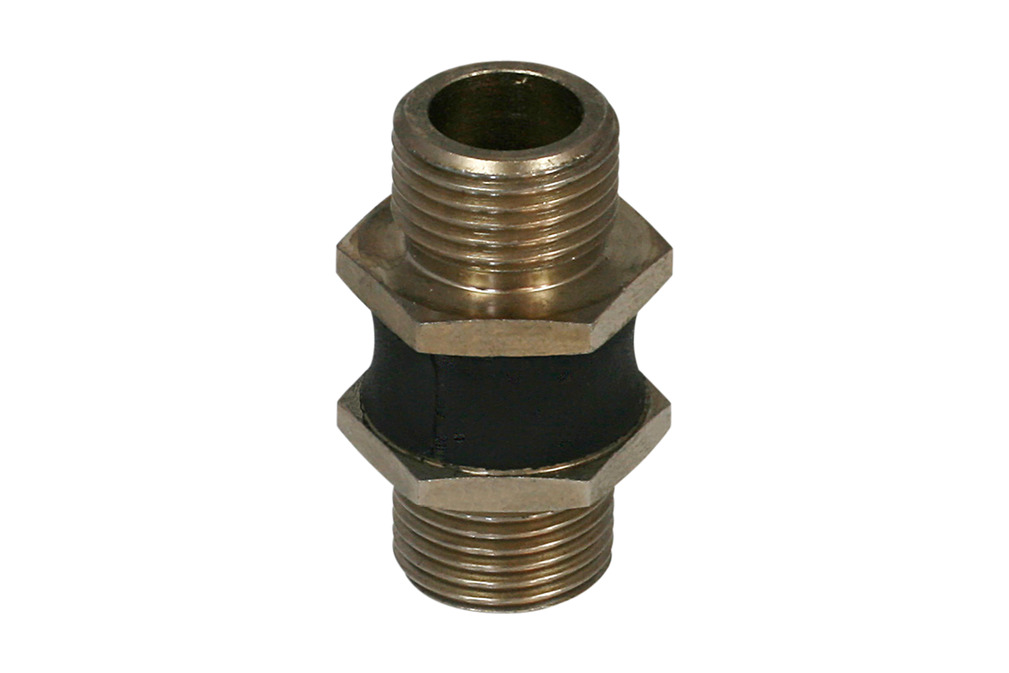

Part no.: 10.01.03.00153

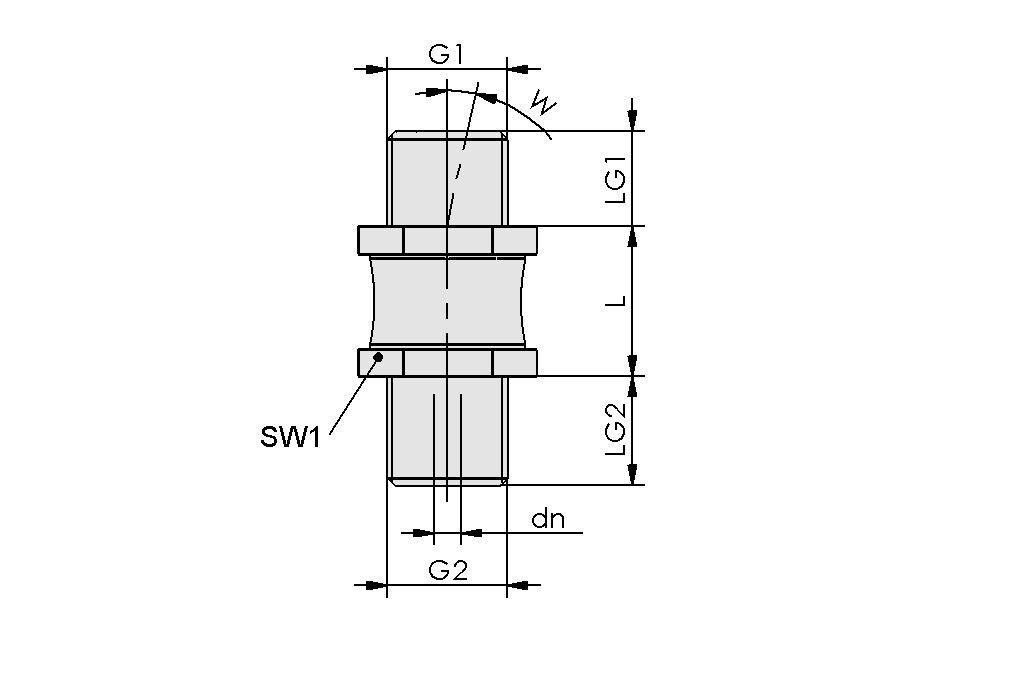

Design Data
Design Data
| Attribute | Value |
|---|---|
| dn | 5.5 mm |
| G1 | G1/2"-M |
| G2 | G1/2"-M |
| L | 21 mm |
| LG1 | 14 mm |
| LG2 | 14 mm |
| SW1 | 27 mm |
| W | 12 ° |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Bending moment | 65 Nm |
| Vertical load | 3,000 N |
| Weight | 100 g |
| Product family | FLK |
