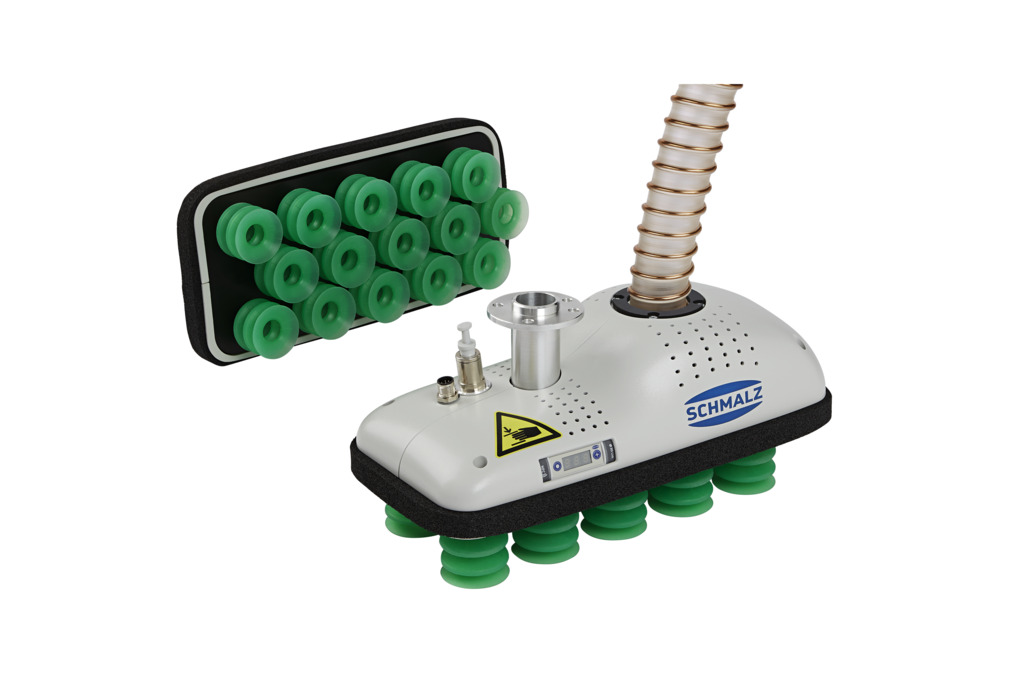

Part no.: 10.01.43.00071

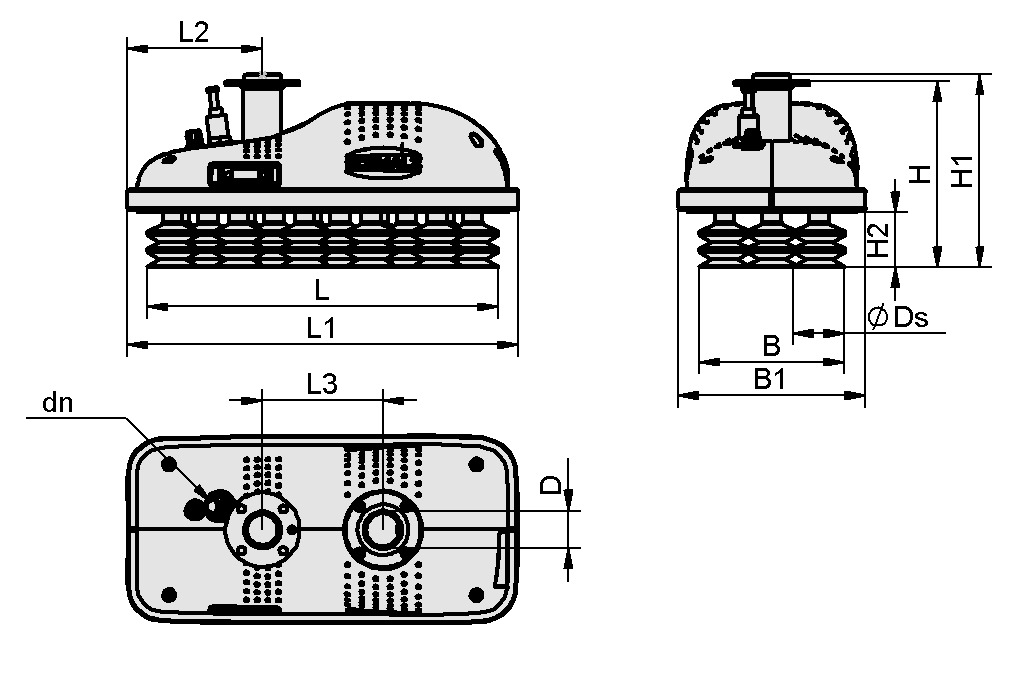

| Attribute | Value |
|---|---|
| B | 123.2 mm |
| B1 | 159 mm |
| dn | 10 mm |
| D | 32 mm |
| H | 158 mm |
| H1 | 164 mm |
| H2 | 47 mm |
| L | 297 mm |
| L1 | 331 mm |
| L2 | 114.4 mm |
| L3 | 102 mm |
| Attribute | Value |
|---|---|
| Weight | 1.67 kg |
| Number of suction cells | 15 |
| Lift capacity (vertical) | 80 N |
| Lift capacity (horizontal) | 350 N |
| Product family | FMCB |
| Size | 40 |
| Suction cup material | Silicone SI |
| Material hardness [Shore A] | 55 (Shore A) |
| Number of folds | 2.5 |
| Shape | Push In |
| Nominal size | 1,50 mm |
| Shape | Push In |
| Length L | 15.5 (mm) |
| Material | Polyoxymethylene |
| Outside diameter D | 7.3 (mm) |
| Length L | 314.6 (mm) |
| Width B | 144.2 (mm) |
| Height H | 91.7 (mm) |
| Utilization design | Vacuum area gripping system FXCB-FMCB |
| Measuring range [bar] | -1,0 ... 0,0 bar |
| Construction vacuum switch | with display |
| Electrical connection | Male connect M8, 4 pole |
| Indication | 2xLED |
| Protection type IP | IP 65 |
| Electrical connection | Fem connect M12, 8 pol |
| Connection 2 | Angle female connector M8, 8-pole |
| Cable length | 280 (mm) |
| Electrical connection | Fem connect M12, 8 pol |
| Connection 2 | Plug M8, 8-pole |
| Electrical connection | Fem connect M12, 8 pol |
| Connection 2 | Plug M8, 8-pole |
| Electrical connection | Fem connect M12, 8 pol |
| Cable length | 5000 (mm) |
| Connection 2 | Cable, 8-pole |
| Material hose | PUR cable |
| Outside diameter D | 42 (mm) |
| Internal diameter d | 32 (mm) |
| Length max. | 20 (m) |
| Material hose | PU, wire spiral, antistatic |
| Bending radius min. | 25 (mm) |
| Pressure range (operating pressure) [bar] | -1.00 ... 3.77 bar |
| Operating temperature | -40 ... 90 °C |
| Color | Transparent |
| Outside diameter D | 10 (mm) |
| Internal diameter d | 7 (mm) |
| Length max. | 50 (m) |
| Material hose | PU |
| Bending radius min. | 60 (mm) |
| Pressure range (operating pressure) [bar] | -0.95 ... 10.00 bar |
| Operating temperature | -40 ... 85 °C |
| Color | Milky-transparent |
| Nominal size | 32 (mm) |
| Nenndurchfluss bei 0,1 bar | 121.4 (m³/h) |
| Voltage DC | 24 V - DC |
| Function valve | 3/2 multiway valve |
| Control valve | Normally open |
| Connection thread | G1-1/4"-F |
| Pressure range (operating pressure) [bar] | -0.95 ... 0.00 bar |
| Weight | 0.5 (kg) |
