FAS 80x39 G3/4-AG10.05.01.00062Filter with mounting kit
| Outside diameter D | 80 (mm) |
| Length L | 39 (mm) |
| Thread G1 | G3/4"-M |
Part no.: 10.05.02.00068
Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 90.5 mm |
| B1 | 101 mm |
| B2 | 61.5 mm |
| D | 80 mm |
| G1 | G1-1/4"-F |
| G2 | G1-1/4"-F |
| G3 | G3/4"-F |
| G4 | G1/8"-F |
| G5 | G1/8"-F |
| H | 101 mm |
| L | 160 mm |
| L1 | 200.5 mm |
| X1 | 33 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Nominal size | 32 mm |
| Control valve | Normally open |
| Nenndurchfluss bei 0,1 bar | 121.4 m³/h |
| Nenndurchfluss bei 0,1 bar | 2,023 l/min |
| Pressure range (operating pressure) [bar] | -0.95 ... 0.00 bar |
| Power consumption DC | 9.8 W |
| Voltage DC | 24 V - DC |
| Closing time | 300 ms |
| Weight | 0.5 kg |
| Product family | EMVP |

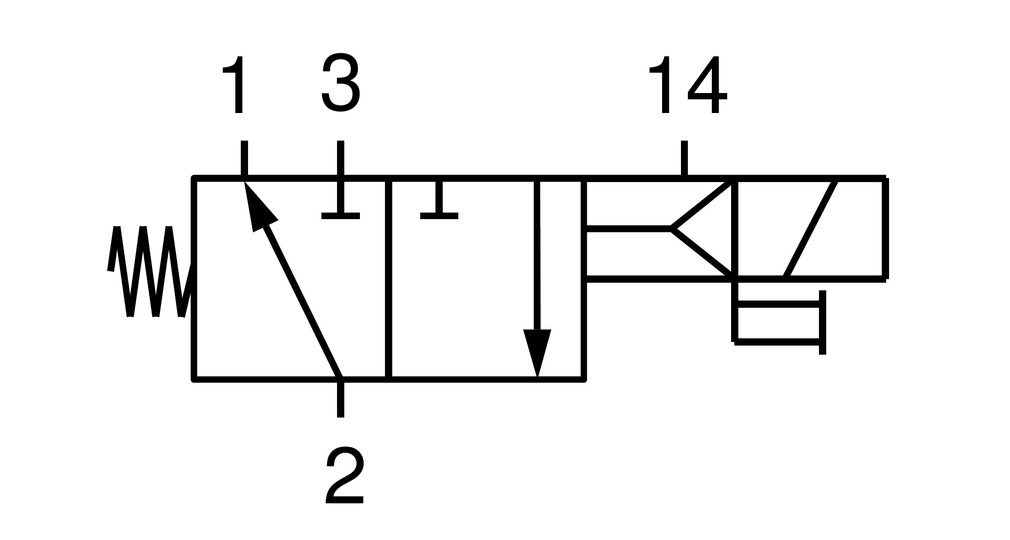

Circuit diagram
Circuit diagram
Documentation
Documentation
Accessories
SSD 65-70 ST-VZ10.07.10.00098Hose clamp for securing
wire-reinforced hoses
| Clamping range [mm] | 65.0 ... 70.0 mm |
| Material | Steel |
| Surface | galvanised |
