VSL 42-32 PU-DS-AS TR

Part no.: 10.07.09.00036

Hose for vacuum and compressed-air systems

Outside diameter D	42 (mm)
Internal diameter d	32 (mm)
Length max.	20 (m)
Material hose	PU, wire spiral, antistatic
Bending radius min.	25 (mm)
Pressure range (operating pressure) [bar]	-1.00 ... 3.77 bar
Operating temperature	-40 ... 90 °C
Color	Transparent

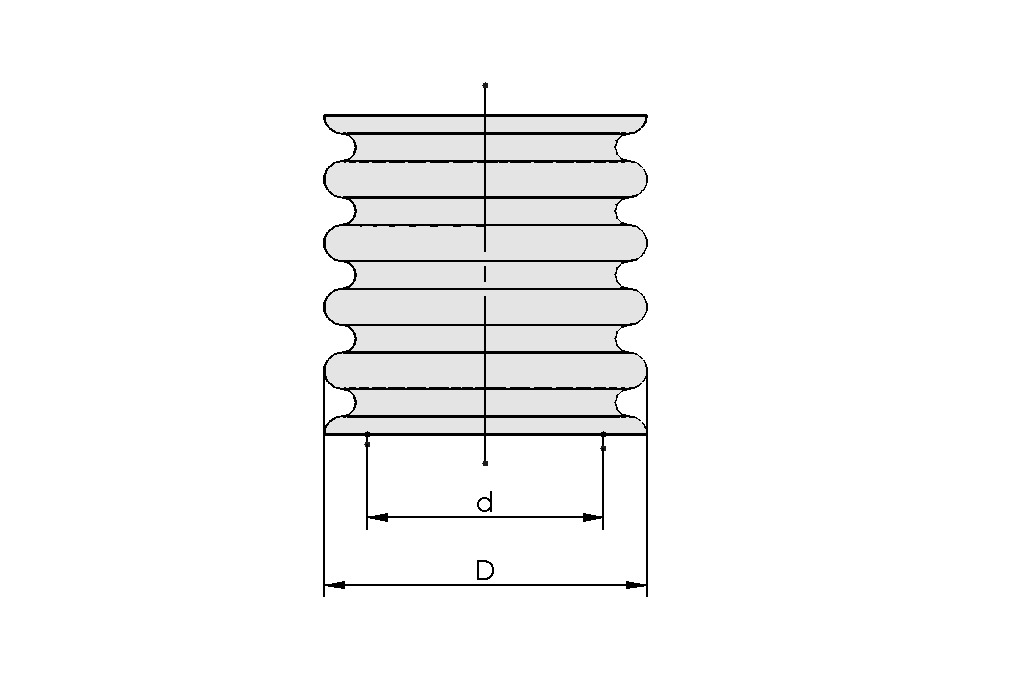

Design Data

Attribute	Value
d	32 mm
D	42 mm

Technical Data

Attribute	Value
Design hose type	42-32
Pressure range (operating pressure) [bar]	-1.00 ... 3.77 bar
Operating temperature	-40 ... 90 °C
Bending radius min.	25 mm
Length max.	20 m
Weight / Meter	440 g/m
Weight / Meter	0.44 kg/m
Material hose	PU, wire spiral, antistatic
Product family	VSL

Note: Operating pressure: In reference to media and ambient temperature of + 20 °C Min. bending radius: Referred to the inner side of the hose bend in a static state Max. length: Please indicate the tube length when placing the order!
