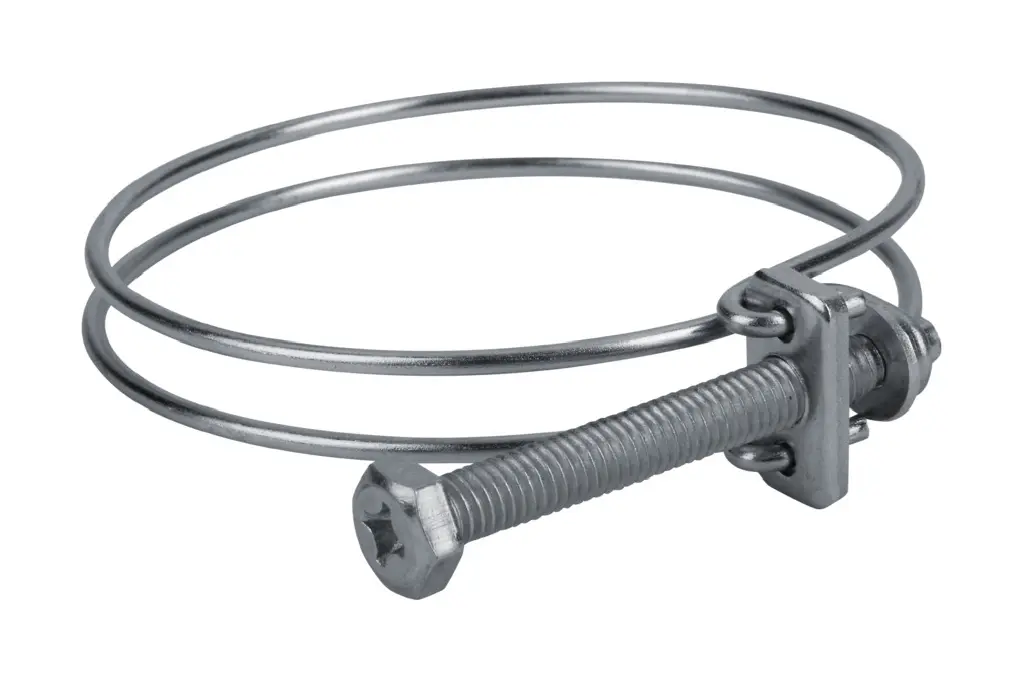

Name: SSD 60-68 ST-VZ
SKU: 10.07.10.00017

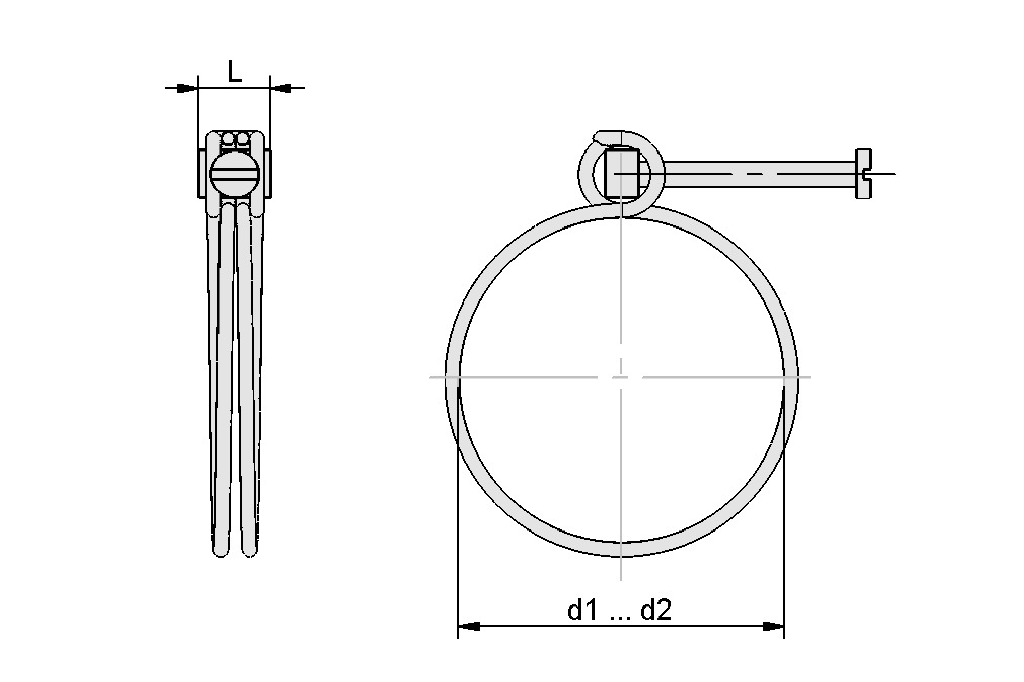

Attribute

Value

60 mm

68 mm

15 mm

Attribute

Value

Clamping range [mm]

60.0 ... 68.0 mm

Material

Steel

Weight

46 g

Product family

SSB / SSD

Accessories

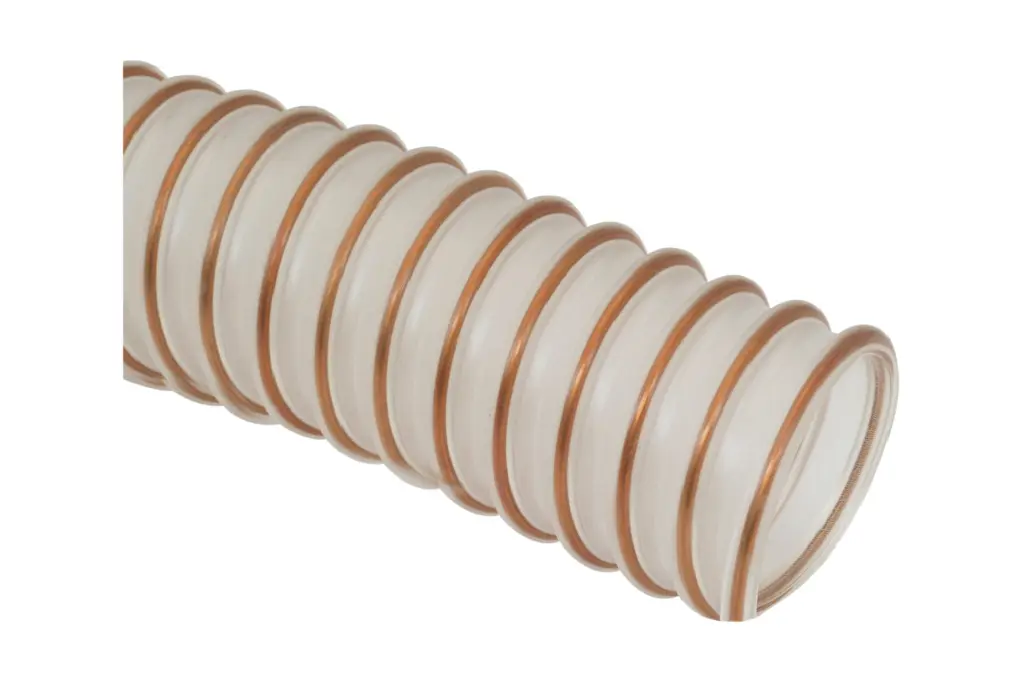

Outside diameter D	60 (mm)
Internal diameter d	50 (mm)
Length max.	20 (m)
Material hose	PU, wire spiral, antistatic
Bending radius min.	35 (mm)
Pressure range (operating pressure) [bar]	-0.82 ... 2.48 bar
Operating temperature	-40 ... 90 °C
Color	Clear-transparent

Outside diameter D	61 (mm)
Internal diameter d	50 (mm)
Length max.	10 (m)
Material hose	PVC with wire spiral
Bending radius min.	90 (mm)
Pressure range (operating pressure) [bar]	-0.78 ... 1.50 bar
Operating temperature	-20 ... 70 °C
Color	grey

Ordering information

SSD 60-68 ST-VZ
