SSD 57-62 ST-VZ10.07.10.00036Hose clamp for securing
wire-reinforced hoses
| Clamping range [mm] | 57.0 ... 62.0 mm |
| Material | Steel |
| Surface | galvanised |
VSL 61-50 PVC-DS GR
Part no.: 10.07.09.00033
Hose for vacuum and compressed-air systems
Industries: Universal
| Outside diameter D | 61 (mm) |
| Internal diameter d | 50 (mm) |
| Length max. | 10 (m) |
| Material hose | PVC with wire spiral |
| Bending radius min. | 90 (mm) |
| Pressure range (operating pressure) [bar] | -0.78 ... 1.50 bar |
| Operating temperature | -20 ... 70 °C |
| Color | grey |

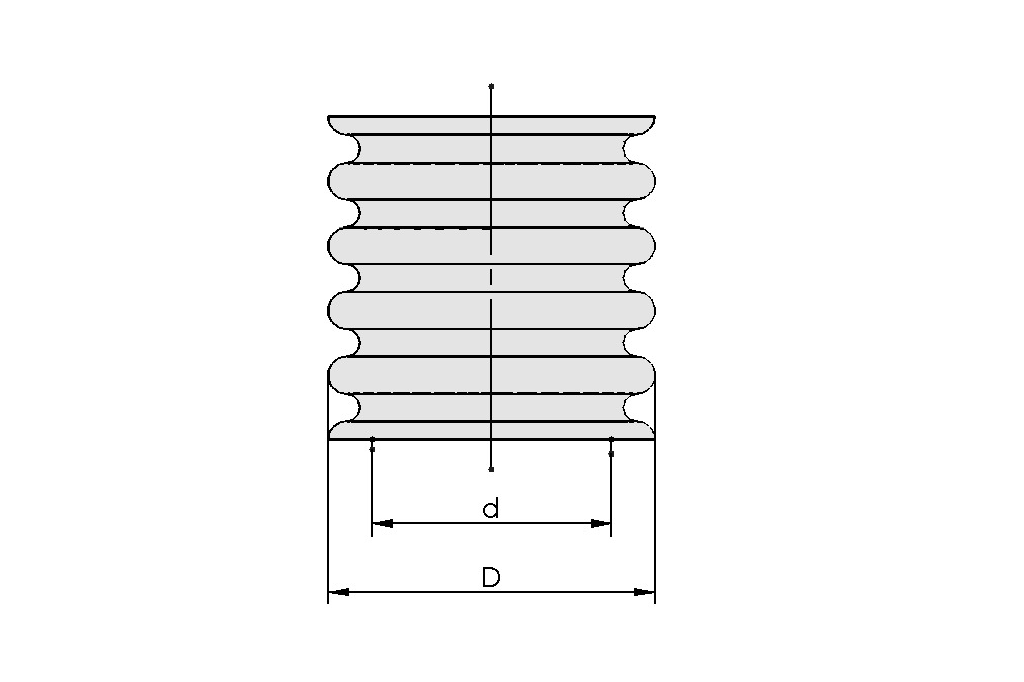

Design Data
Design Data
| Attribute | Value |
|---|---|
| d | 50 mm |
| D | 61 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Design hose type | 61-50 |
| Pressure range (operating pressure) [bar] | -0.78 ... 1.50 bar |
| Operating temperature | -20 ... 70 °C |
| Bending radius min. | 90 mm |
| Length max. | 10 m |
| Weight / Meter | 541 g/m |
| Weight / Meter | 0.54 kg/m |
| Material hose | PVC with wire spiral |
| Product family | VSL |
