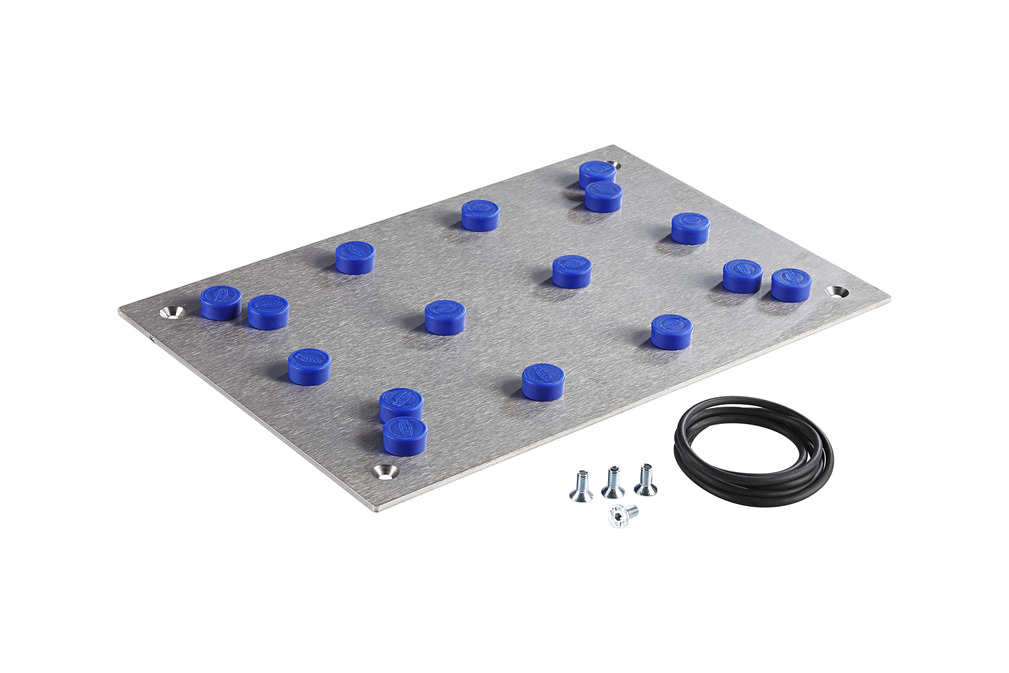

DI-SCHN 3.5 MOS CR-2010.07.04.00091Sealing cord
| Outside diameter D | 3.5 (mm) |
| Sealing material | Chloroprene CR |
| Material hardness [Shore A] | 20 (Shore A) |
Part no.: 10.01.28.00018

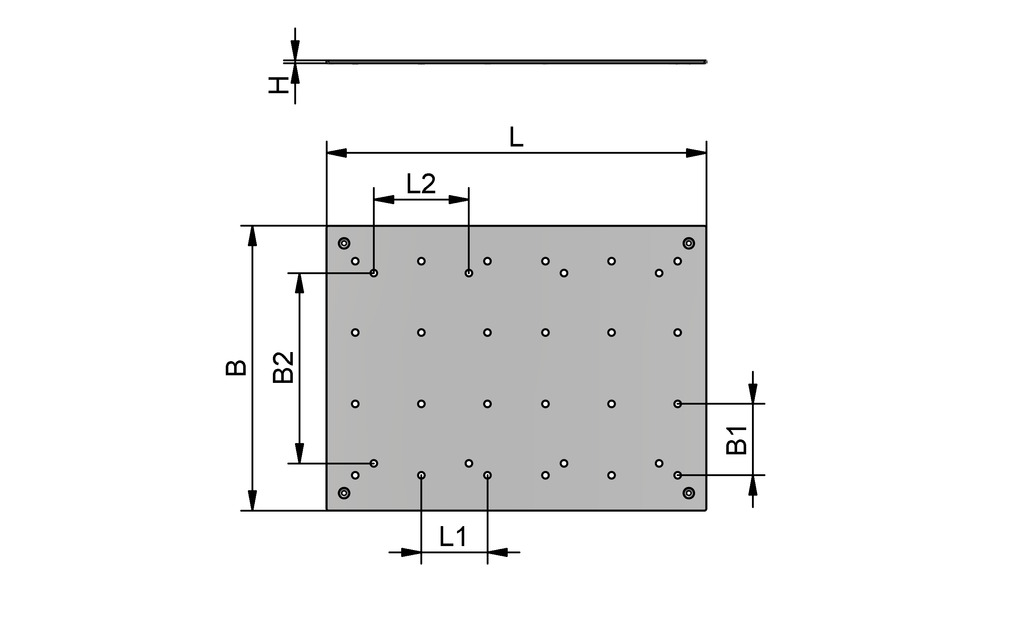

Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 200 mm |
| B1 | 69.5 mm |
| B2 | 100 mm |
| H | 3 mm |
| L | 300 mm |
| L1 | 75 mm |
| L2 | 200 mm |
Documentation
Documentation
Spare parts
DI-SCHN 3 MOS CR-2010.07.04.00088Sealing cord
| Outside diameter D | 3 (mm) |
| Sealing material | Chloroprene CR |
| Material hardness [Shore A] | 20 (Shore A) |
ISMST 19-7 4ISMST10.01.14.00847Sealing magnet for
clamping system Innospann
| Outside diameter D | 7 (mm) |
| Height H | 11.5 (mm) |
Accessories
ISBL-HD 80x80x3810.01.15.00654Innospann vacuum block for
Steelplate and Adapterplate
| Length L | 80 (mm) |
| Width B | 80 (mm) |
| Dimension (LxW) | 80 x 80 |
| Base area | 80 x 80 mm |
| Height H | 38 (mm) |
ISBL-HD 80x40x3810.01.15.00655Innospann vacuum block for
Steelplate and Adapterplate
| Length L | 80 (mm) |
| Width B | 40 (mm) |
| Dimension (LxW) | 80 x 40 |
| Base area | 80 x 80 mm |
| Height H | 38 (mm) |
ISBL-HD 80x28x3810.01.15.00656Innospann vacuum block for
Steelplate and Adapterplate
| Length L | 80 (mm) |
| Width B | 28 (mm) |
| Dimension (LxW) | 80 x 28 |
| Base area | 80 x 80 mm |
| Height H | 38 (mm) |
SFM-298.5x198.510.01.28.00005Elastomer mat for
fixing workpieces
| Material | Plastics |
| Utilization design | Matrix-Plate |
| Length L | 298.5 (mm) |
| Width B | 198.5 (mm) |
| Height H | 2.5 (mm) |
Product recommendations
Matrix-Plate MPL
- Basis of the modular system for metal and plastics processing
- Low-distortion clamping of flat workpieces
- Adaptable to all common machine tables
Innospann Steel-Plate ISST-MPL and FlexMat SFM
- Steel-Plate ISST and elastomer mat with honeycomb suction points for metal and plastic processing
- Extension for the clamping system Matrix-Plate MPL
- For the production of cutouts
- NEW
Vacuum Units VAGG
- Mobile vacuum generation and monitoring with interface to CNC machine
- Manual separation and emptying of cooling lubricant
- Suction rate 10, 21, 40, 63 m³/h
- NEW
Pneumatic Vacuum Generators CVU
- Vacuum generators for use in CNC machines for metal processing
- Suction rate up to 8.6 m³/h
- Degree of evacuation up to 85 %
- Optional with energy-saving control, reservoir or vacuum switch for safety switching
Vacuum Blocks for Metal and Plastic Processing
- Vacuum clamping technology for CNC machining of metal or plastic workpieces
- With special friction pad for high clamping forces
- Tight tolerances for high dimensional requirements
