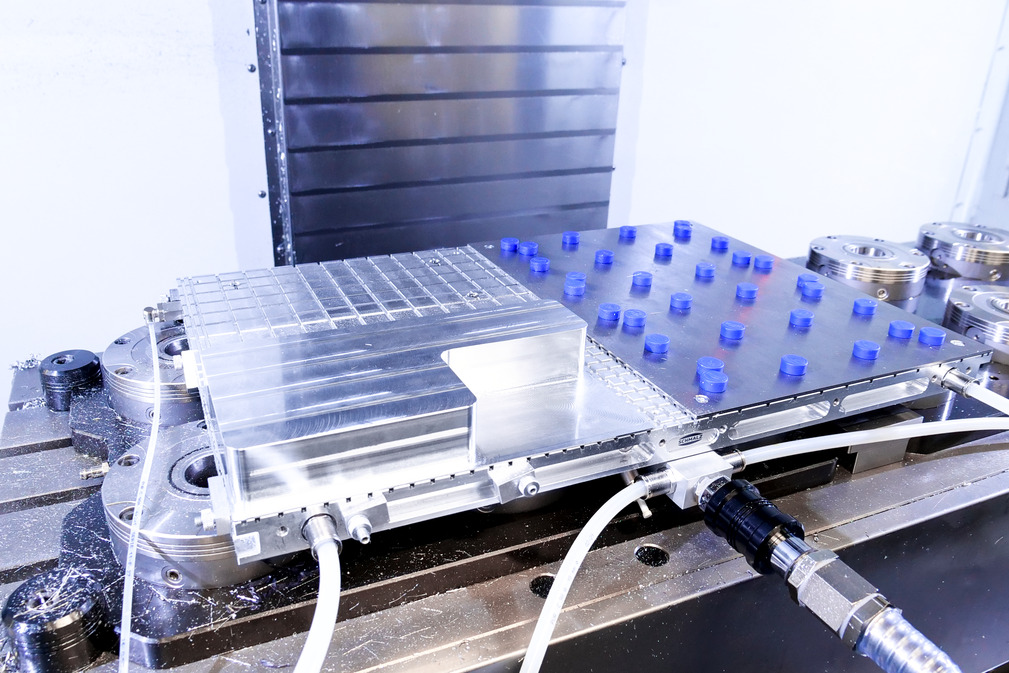

Matrix-Plate MPL
Modular clamping system for CNC machining centers
Low-distortion, low-vibration and damage-free clamping, especially of thin-walled and non-magnetic workpieces
High strength aluminum base body for high precision and flatness
Sophisticated accessories allow fast, comfortable and safe processing
Short set-up times and high flexibility due to compatibility with conventional clamping devices and zero point clamping systems
Patented friction pads increase lateral force absorption and enable shorter machining times or additional safety reserves
Design
Design
- Main body (1) with integrated vacuum distribution made of high-strength aluminum with different grid dimensions
- Optional friction pads (2) for improved lateral force absorption
- Sealing cord (3) for sealing workpiece and Matrix-Plate
- Vacuum connection set (4) for connecting various vacuum generators (e.g. VAGG)
- Vacuum gauge (5) for monitoring the vacuum close to the workpiece
Technical Data
Technical Data
- Basis of the modular system for metal and plastics processing
- Low-distortion clamping of flat workpieces
- Adaptable to all common machine tables
Documentation
Documentation
The matching documentation for this product is available in this section.
