Innospann Steel-Plate ISST-MPL and Vacuum Blocks ISBL
Steel-Plate and vacuum blocks for use on Matrix-Plate MPL
Simple and fast setup by using the modular system on the Matrix-Plate MPL

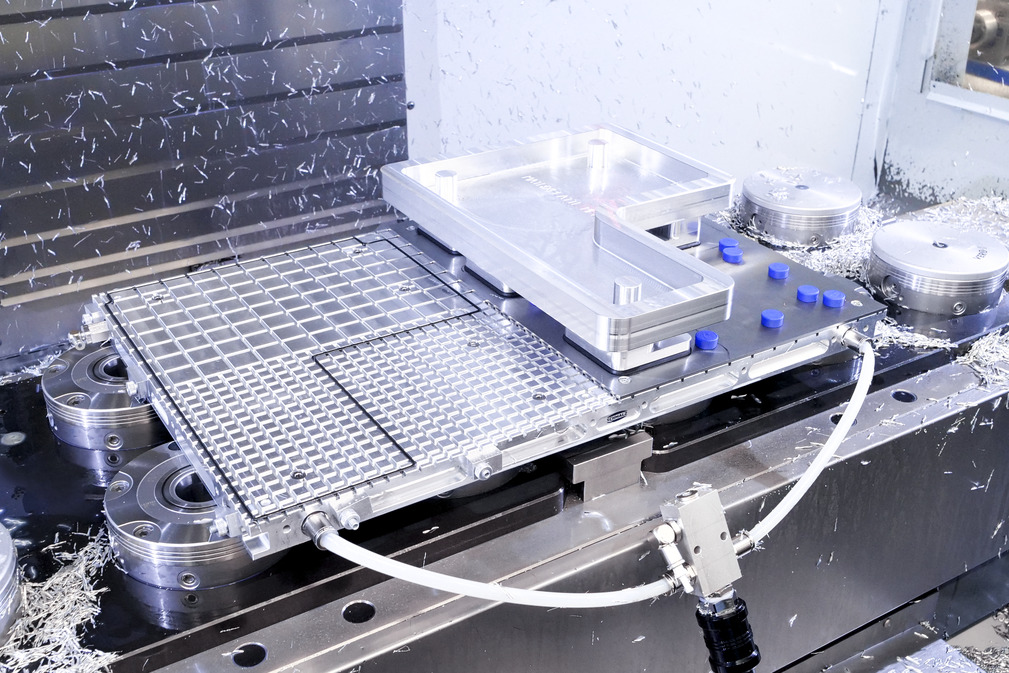

In combination with vacuum blocks ISBL, optimal for cutouts and 5-axis machining with few setups

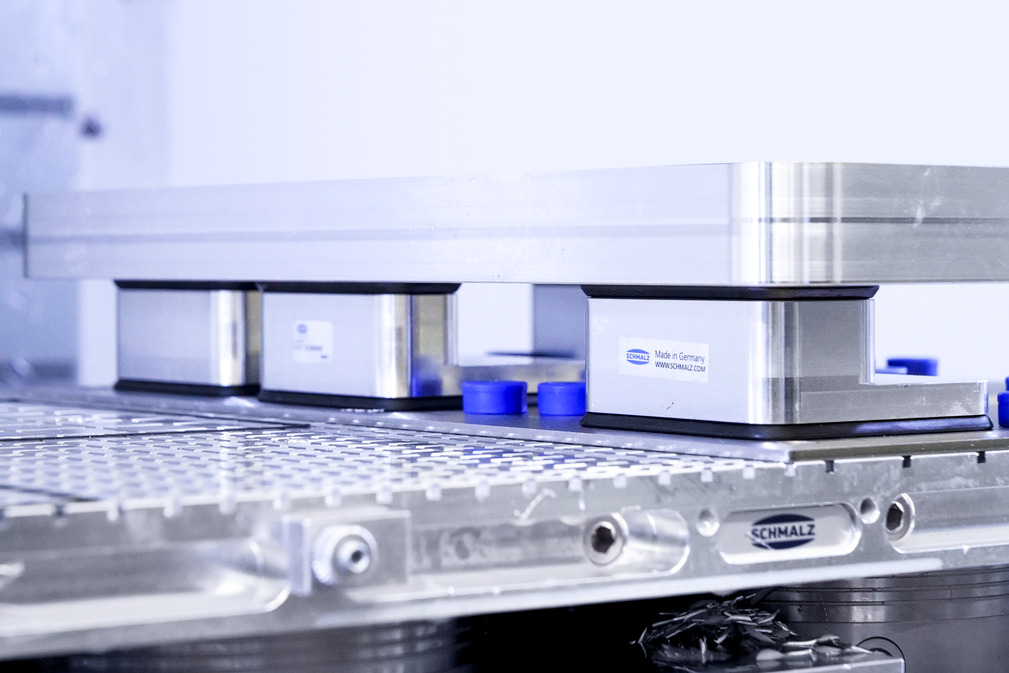

Vacuum blocks ISBL are flexible in terms of position, dimensions and height and thus enable the clamping of a wide variety of workpiece geometries
Durable and resistant to cooling lubricants due to the use of aluminum, stainless steel and robust elastomers
Clamping system can be expanded at any time and thus easily adapted to new requirements and workpieces
Design
Design
- Vacuum blocks ISBL made of aluminum (1) with double seal and magnetic pre-fixation on the Steel-Plate
- Schmalz FlexMat SFM (2) for use directly on the Steel-Plate
- Sealing magnets (3) for unused vacuum openings when used with vacuum blocks ISBL
- Steel-Plate with vacuum openings (4)
- Matrix-Plate MPL (5) as basic unit of the modular clamping system
Technical Data
Technical Data
- Steel-Plate ISST with vacuum blocks ISBL for metal and plastic processing
- Extension for the clamping system Matrix-Plate MPL
- For 5-axis machining and the production of cutouts
