- NEW
- EFFICIENT

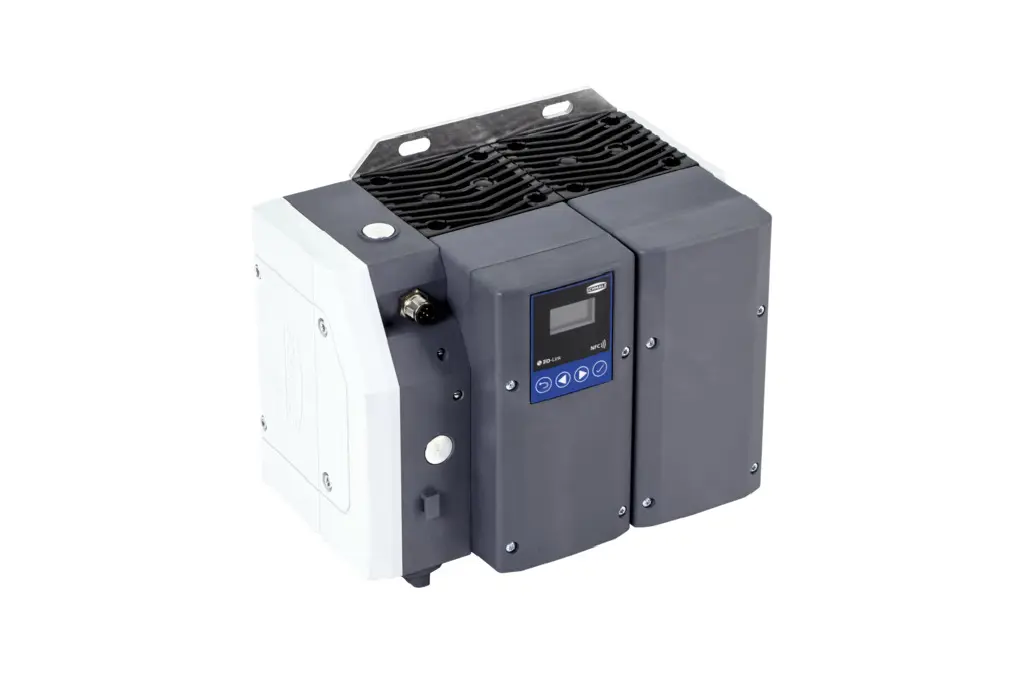

GSPi 100 3xM12-5 24V-DC FB
Part no.: 10.03.01.01008
Electrical vacuum generation with energy saving regulation, IO-Link and external valve control
Industries: Automotive | Glass | Logistics | Metal | Packaging | Universal
| Size | 100 |
| Rated power | 110 (W) |
| Voltage | 24V - DC |
| Rated current | 4.6 (A) |
| Electrical connection | 3xConnect M12, 3x5 pol |
| Suction rate (max.) | 100 (l/min) |
| Max. vacuum | 800 (mbar) |
| Protection type IP | IP 54 |
| Operating temperature | 0 ... 40 °C |
| with | Unit with safety valve |
| Filter pore size | 50 (µm) |

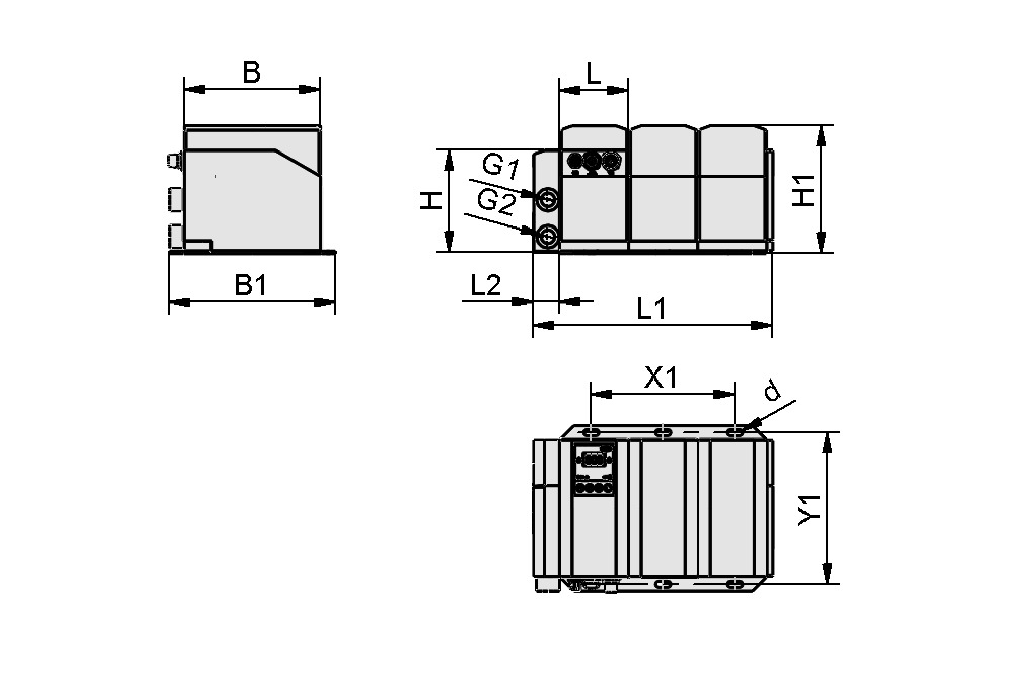

Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 150 mm |
| B1 | 180 mm |
| d | 6.4 mm |
| G1 | G3/8"-F |
| G2 | G3/8"-F |
| H | 111 mm |
| H1 | 139 mm |
| L | 74.6 mm |
| L1 | 209.7 mm |
| L2 | 53.1 mm |
| X1 | 80 mm |
| Y1 | 165 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Suction rate (max.) | 100 l/min |
| Max. vacuum | 800 mbar |
| Voltage | 24V - DC |
| Rated power | 110 W |
| Rated current | 4.6 A |
| Electrical connection | 3xConnect M12, 3x5 pol |
| Protection type IP | IP 54 |
| Operating temperature | 0 ... 40 °C |
| with | Unit with safety valve |
| Filter pore size | 50 µm |
| Weight | 4,305 g |
Performance Data
Performance Data
Documentation
Documentation
Spare parts
FILT-EINS 50 28x51 PAP VF-3/810.07.01.00014Filter insert (round)
| Filter pore size | 50 (µm) |
| Outside diameter D | 27.5 (mm) |
| Length L | 50.5 (mm) |
| Filter material | Paper |
| Utilization design | Filter VF |
| Size | 3/8 |
SIEB 14x2 A2 0.415/0.2210.02.02.03377Screen protects the vacuum system
from contamination
| Outside diameter D | 14 (mm) |
| Length L | 2 (mm) |
| Material | Austenitic stainless steel |
| Mesh size | 0.415 (mm) |
| Wire diameter | 0.22 (mm) |
Accessories
STV-GE G3/8-AG 1010.08.02.00252Push-in Fitting, straight
| Thread G1 | G3/8"-M |
| Outer hose diameter | 10 (mm) |
| Material | Brass |
| Operating temperature | -20 ... 80 °C |
| Outside diameter D | 16.5 (mm) |
| Length L | 20.1 (mm) |
STV-GE G3/8-AG 1210.08.02.00209Push-in Fitting, straight
| Thread G1 | G3/8"-M |
| Outer hose diameter | 12 (mm) |
| Material | Brass |
| Operating temperature | -20 ... 80 °C |
| Outside diameter D | 19.5 (mm) |
| Length L | 23.6 (mm) |
STV-GE G3/8-AG 1410.08.02.00211Push-in Fitting, straight
| Thread G1 | G3/8"-M |
| Outer hose diameter | 14 (mm) |
| Material | Brass |
| Operating temperature | -20 ... 80 °C |
| Outside diameter D | 21.5 (mm) |
| Length L | 30.5 (mm) |
VSL 10-7 PE MI-TR10.07.09.00083Hose for vacuum and
compressed-air systems
| Outside diameter D | 10 (mm) |
| Internal diameter d | 7 (mm) |
| Length max. | 50 (m) |
| Material hose | PE |
| Bending radius min. | 60 (mm) |
| Pressure range (operating pressure) [bar] | -0.95 ... 10.00 bar |
| Operating temperature | -30 ... 70 °C |
| Color | Milky-transparent |
VSL 12-9 PU MI-TR10.07.09.00037Hose for vacuum and
compressed-air systems
| Outside diameter D | 12 (mm) |
| Internal diameter d | 9 (mm) |
| Length max. | 50 (m) |
| Material hose | PU |
| Bending radius min. | 70 (mm) |
| Pressure range (operating pressure) [bar] | -0.95 ... 10.00 bar |
| Operating temperature | -20 ... 90 °C |
| Color | Milky-transparent |
VSL 14-11 PU MI-TR10.07.09.00038Hose for vacuum and
compressed-air systems
| Outside diameter D | 14 (mm) |
| Internal diameter d | 11 (mm) |
| Length max. | 50 (m) |
| Material hose | PU |
| Bending radius min. | 100 (mm) |
| Pressure range (operating pressure) [bar] | -0.95 ... 10.00 bar |
| Operating temperature | -20 ... 90 °C |
| Color | Milky-transparent |
VF-10 G3/8-IG 5010.07.01.00004Vacuum filter with replaceable
filter cartridge
| Connection | G3/8"-F |
| Shape | Aluminum housing |
| Nominal flow rate | 10 (m³/h) |
| Filter pore size | 50 (µm) |
LQEi 8 24V-DC 3/2 IMP IOL-B10.05.11.00014Direct operated 3/2-way compact
valve with intelligent process
monitoring
| Nominal size | 8 (mm) |
| Control valve | Impulse valve |
| Communication | IO-Link (Class B) |
| Electrical connection | Male connect M12, 5 pol |
| Power consumption DC | 3.2 (W) |
| Nominal flow rate | 6.54 (m³/h) |
| Nominal flow at 0.1 bar | 130 (l/min) |
| Pressure range (operating pressure) [bar] | -0.9 ... 0.0 bar |
| Operating temperature | 0 ... 50 °C |
| Protection type IP | IP 40 |
| Weight | 400 (g) |
VFT G1/4-IG 10010.07.01.00120Vacuum cup filter with transparent
housing and replaceable filter
| Connection | G1/4"-F |
| Shape | short filter insert |
| Nominal flow rate | 140 (l/min) |
| Nominal flow rate | 8.4 (m³/h) |
| Filter pore size | 100 (µm) |
ZUB GCPi GUMMI-PUFF10.03.01.00809Accessories
| contains | Rubber buffer |
| Utilization design | Compact Pump GCPi |
ZUB GCPi GUMMI-PUFF10.03.01.00810Accessories
| Utilization design | Compact Pump GCPi |
| contains | Rubber buffer |
P-LEIT-LK S-M12-5 1.5m B-M12-521.04.05.00606Power cable M12 L-coded
| Rated current | 16 (A) |
| Voltage DC | 63 V - DC |
| Protection type IP | IP 68 |
| Electrical connection | Male connect M12, 5 pol |
| Cable length Lk | 1.5 (m) |
| Connection 2 | Female connector M12, 5-pole |
| Number of poles | 5 |
| Number of wires | 5 |
| Wire area | 2.5 (cm²) |
| Material hose | PUR cable |
| Color |
P-LEIT-LK S-M12-5 3m B-M12-521.04.05.00607Power cable M12 L-coded
| Rated current | 16 (A) |
| Voltage DC | 63 V - DC |
| Protection type IP | IP 68 |
| Electrical connection | Male connect M12, 5 pol |
| Cable length Lk | 3 (m) |
| Connection 2 | Female connector M12, 5-pole |
| Number of poles | 5 |
| Number of wires | 5 |
| Wire area | 2.5 (cm²) |
| Material hose | PUR cable |
| Color |
P-LEIT-LK B-M12-5 1.5m OK21.04.05.00351Power cable M12 L-coded
| Rated current | 16 (A) |
| Voltage DC | 63 V - DC |
| Protection type IP | IP 68 |
| Electrical connection | Fem connect M12, 5 pol |
| Cable length Lk | 1.5 (m) |
| Connection 2 | Open cable end |
| Number of poles | 5 |
| Number of wires | 5 |
| Wire area | 2.5 (cm²) |
| Material hose | PUR cable |
| Color |
P-LEIT-LK B-M12-5 5m OK21.04.05.00352Power cable M12 L-coded
| Rated current | 16 (A) |
| Voltage | 63V-DC |
| Protection type IP | IP 68 |
| Electrical connection | Fem connect M12, 5 pol |
| Cable length Lk | 5 (m) |
| Connection 2 | Open cable end |
| Number of poles | 5 |
| Number of wires | 5 |
| Wire area | 2.5 (cm²) |
| Material hose | PUR cable |
| Color |
ASK B-M12-5 5000 K-5P21.04.05.00080Connection cable
| Electrical connection | Fem connect M12, 5 pol |
| Cable length | 5000 (mm) |
| Connection 2 | Cable, 5-pole |
| Material hose | PUR cable |
ASK B-M12-5 2000 S-M12-521.04.05.00211Connection cable
| Pressure range (operating pressure) [bar] | bar |
| Electrical connection | Fem connect M12, 5 pol |
| Cable length | 2000 (mm) |
| Connection 2 | Plug M12, 5-pole |
| Material hose | PUR cable |
SD G3/8-AG 20x56 SEG10.02.01.00905Silencer for vacuum generators
| Thread G1 | G3/8"-M |
| Outside diameter D | 20 (mm) |
| Length L | 56 (mm) |
| Utilization design | Basic ejector SEG |
