SSB 10-16 ST-VZ10.07.10.00001Hose clamp for securing smooth
hoses
| Clamping range [mm] | 10.0 ... 16.0 mm |
| Material | Steel |
| Surface | galvanised |
- NEW
VSL 12-9 PU MI-TR
Part no.: 10.07.09.00037
Hose for vacuum and compressed-air systems
Industries: Universal
| Outside diameter D | 12 (mm) |
| Internal diameter d | 9 (mm) |
| Length max. | 50 (m) |
| Material hose | PU |
| Bending radius min. | 70 (mm) |
| Pressure range (operating pressure) [bar] | -0.95 ... 10.00 bar |
| Operating temperature | -20 ... 90 °C |
| Color | Milky-transparent |

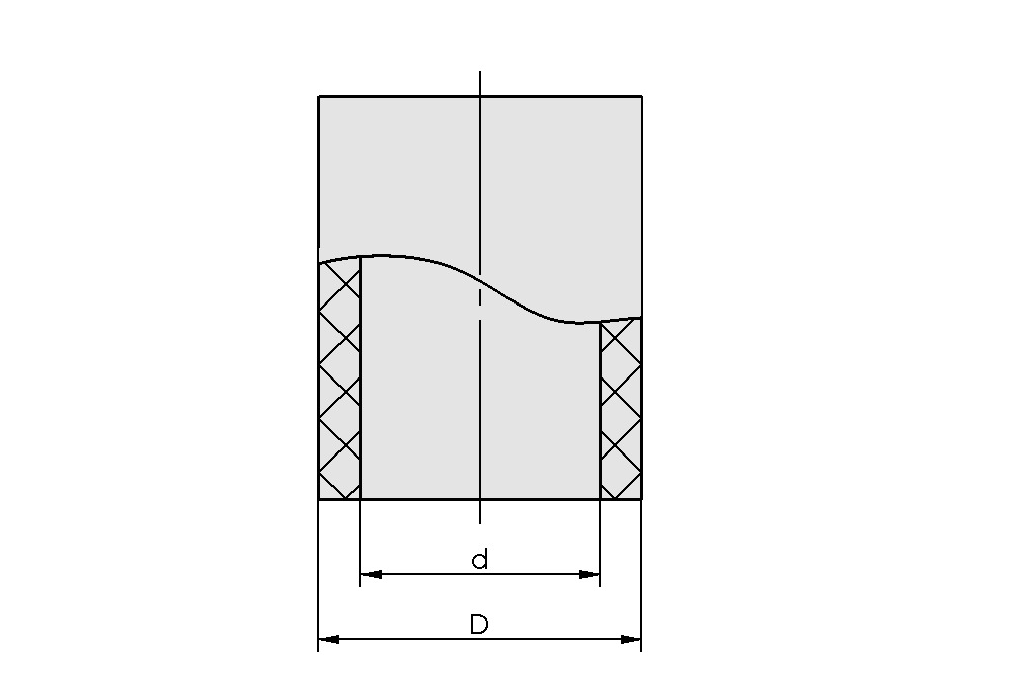

Design Data
Design Data
| Attribute | Value |
|---|---|
| d | 9 mm |
| D | 12 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Design hose type | 12-9 |
| Pressure range (operating pressure) [bar] | -0.95 ... 10.00 bar |
| Operating temperature | -20 ... 90 °C |
| Bending radius min. | 70 mm |
| Length max. | 50 m |
| Weight / Meter | 58 g/m |
| Weight / Meter | 0.06 kg/m |
| Material hose | PU |
| Product family | VSL |
Documentation
Documentation
Accessories
ST G1/2-AG 9 MS-V10.08.03.00161Hose sleeve
| Thread G1 | G1/2"-M |
| Hose inner diameter (recom.) d | 9 (mm) |
| Material | Brass |
| Surface | nickel plated |
| Length L | 6.1 (mm) |
| Nominal diameter dn | 7.5 (mm) |

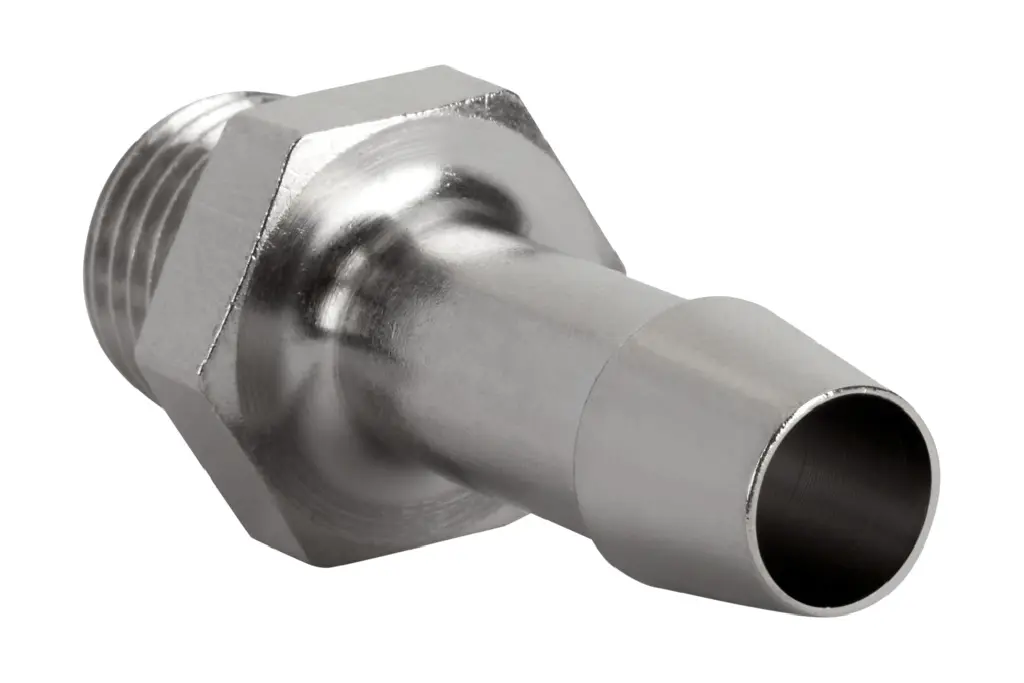

ST G1/4-AG 9 MS-V10.08.03.00157Hose sleeve
| Thread G1 | G1/4"-M |
| Hose inner diameter (recom.) d | 9 (mm) |
| Material | Brass |
| Surface | nickel plated |
| Length L | 5 (mm) |
| Nominal diameter dn | 7.5 (mm) |
ST G1/8-AG 9 MS-V10.08.03.00155Hose sleeve
| Thread G1 | G1/8"-M |
| Hose inner diameter (recom.) d | 9 (mm) |
| Material | Brass |
| Surface | nickel plated |
| Length L | 5 (mm) |
| Nominal diameter dn | 4 (mm) |
ST G3/8-AG 9 MS-V10.08.03.00159Hose sleeve
| Thread G1 | G3/8"-M |
| Hose inner diameter (recom.) d | 9 (mm) |
| Material | Brass |
| Surface | nickel plated |
| Length L | 6 (mm) |
| Nominal diameter dn | 7.4 (mm) |
STV-GE G1/2-AG 1210.08.02.00210Push-in Fitting, straight
| Thread G1 | G1/2"-M |
| Outer hose diameter | 12 (mm) |
| Material | Brass |
| Operating temperature | -20 ... 80 °C |
| Outside diameter D | 19.5 (mm) |
| Length L | 24 (mm) |
STV-GE G1/4-AG 1210.08.02.00208Push-in Fitting, straight
| Thread G1 | G1/4"-M |
| Outer hose diameter | 12 (mm) |
| Material | Brass |
| Operating temperature | -20 ... 80 °C |
| Outside diameter D | 19.5 (mm) |
| Length L | 29 (mm) |
STV-GE G3/8-AG 1210.08.02.00209Push-in Fitting, straight
| Thread G1 | G3/8"-M |
| Outer hose diameter | 12 (mm) |
| Material | Brass |
| Operating temperature | -20 ... 80 °C |
| Outside diameter D | 19.5 (mm) |
| Length L | 23.6 (mm) |
STV-T G1/4-AG 1210.09.02.00045Push-in Fitting, T
| Thread G1 | G1/4"-M |
| Outer hose diameter | 12 (mm) |
| Material | Brass |
| Operating temperature | °C |
| Length L | 69 (mm) |

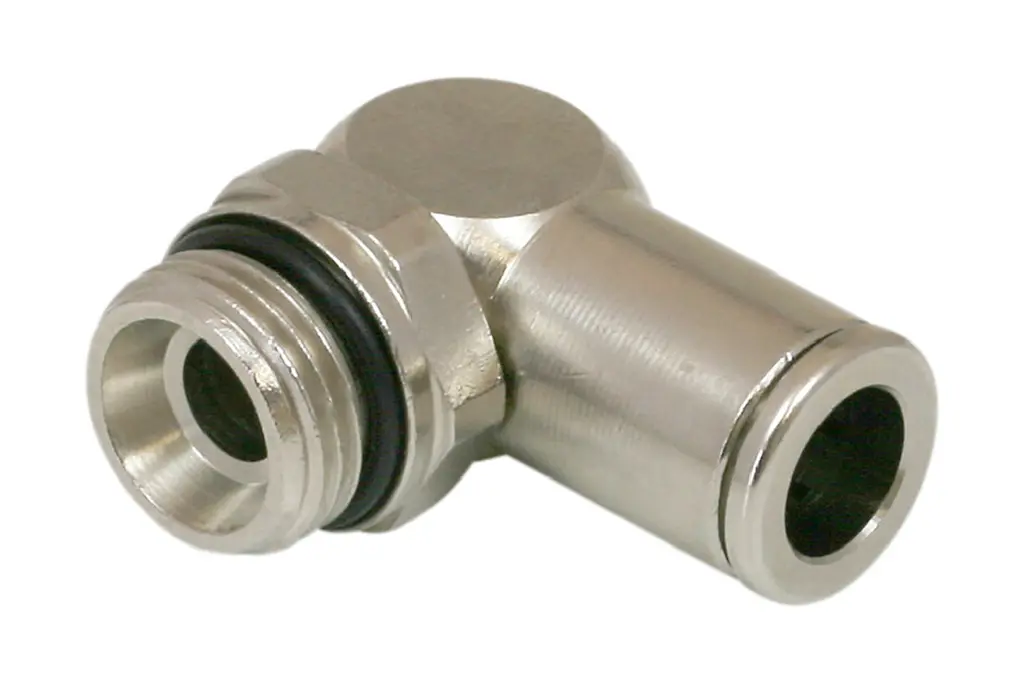

STV-W G1/2-AG 1210.08.02.00164Push-in Fitting, swivelling
elbow
| Thread G1 | G1/2"-M |
| Outer hose diameter | 12 (mm) |
| Material | Nickel plated |
| Operating temperature | -20 ... 80 °C |
| Length L | 34.3 (mm) |
STV-W G1/4-AG 1210.08.02.00162Push-in Fitting, swivelling
elbow
| Thread G1 | G1/4"-M |
| Outer hose diameter | 12 (mm) |
| Material | Nickel plated |
| Operating temperature | -20 ... 80 °C |
| Length L | 34.5 (mm) |
STV-W G3/8-AG 1210.08.02.00163Push-in Fitting, swivelling
elbow
| Thread G1 | G3/8"-M |
| Outer hose diameter | 12 (mm) |
| Material | Nickel plated |
| Operating temperature | -20 ... 80 °C |
| Length L | 34.1 (mm) |

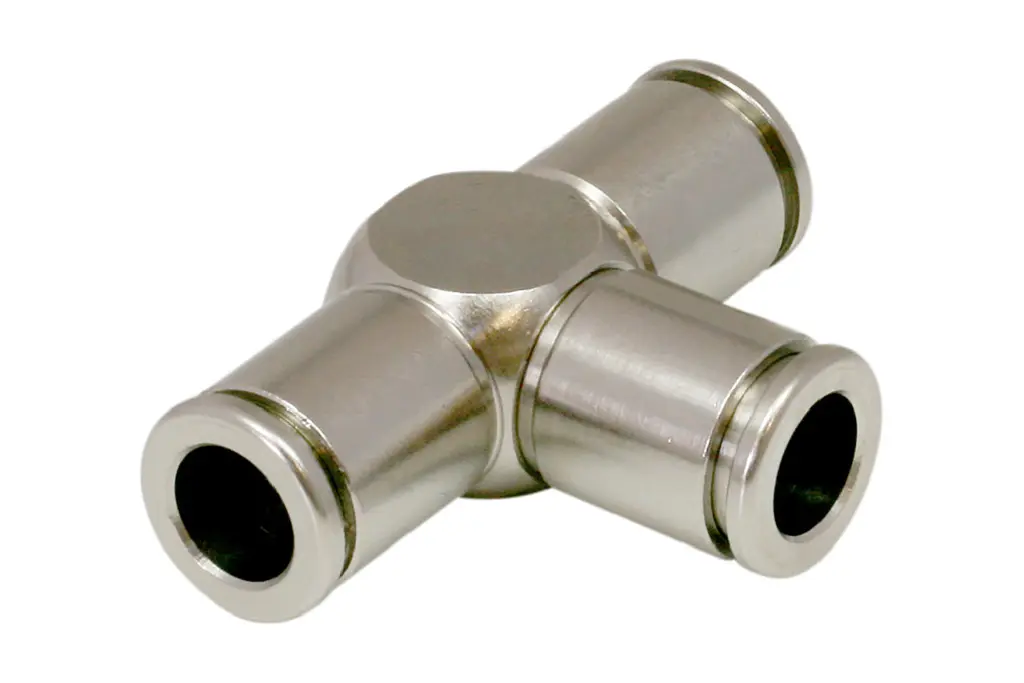

SVB-T 1210.09.02.00023Plug connection, T
| Outer hose diameter | 12 (mm) |
| Material | Brass |
| Operating temperature | -20 ... 80 °C |
| Length L | 69 (mm) |
Product recommendations
MO-PROF 25x30x3000 1TN AL26.07.01.00498Aluminium profile for construction
of vacuum-gripping systems
| Length L | 3000 (mm) |
| Width B | 25 (mm) |
| Height H | 30 (mm) |
| Form | with 1 T-slot |
KAPP 30x3 PXT 8-D30-I25.09.06.00129Cap (round)
| Utilization design | Modular gripper system |
| Length L | 3 (mm) |
| Outside diameter D | 30 (mm) |
| Connection 1 | Profil 8D30-I |
HTR-D30-I AR PXT10.01.49.00098Holder system
| Utilization design | Modular gripper system |
| Cross-beam connection | Profile D30-ITEM |
| Shape | Anti Rotation |
| Outside diameter D | 30 (mm) |
| Length L | 68 (mm) |
VTR G1/4-IG 9xG1/8 POM10.09.03.00098Vacuum/compressed-air distributor
| Inlet | G1/4"-IG |
| Outlets | 9 x thread G1/8"-F |
| Length L | 90 (mm) |
| Width B | 35 (mm) |
| Height H | 20 (mm) |
| Material | Polyoxymethylene |
VTR G1/4-IG 5xG1/8 POM10.09.03.00097Vacuum/compressed-air distributor
| Inlet | G1/4"-IG |
| Outlets | 5 x thread G1/8"-F |
| Length L | 60 (mm) |
| Width B | 35 (mm) |
| Height H | 20 (mm) |
| Material | Polyoxymethylene |
SVB-Y 8-6/6-410.09.02.00090Plug connection, Y
| Length L | 36 (mm) |
| Material | Plastics |
| Operating temperature | -20 ... 60 °C |
| Nominal size | 6 (mm) |
SVB-Y 8-6/6-410.09.02.00091Plug connection, Y
| Length L | 37 (mm) |
| Material | Plastics |
| Operating temperature | -20 ... 60 °C |
| Nominal size | 6 (mm) |
VSL 6-4 PU MI-TR10.07.09.00002Hose for vacuum and
compressed-air systems
| Outside diameter D | 6 (mm) |
| Internal diameter d | 4 (mm) |
| Length max. | 500 (m) |
| Material hose | PU |
| Bending radius min. | 35 (mm) |
| Pressure range (operating pressure) [bar] | -0.95 ... 10.00 bar |
| Operating temperature | -20 ... 90 °C |
| Color | Milky-transparent |
- NEW
VSL 8-6 PU MI-TR10.07.09.00003Hose for vacuum and
compressed-air systems
| Outside diameter D | 8 (mm) |
| Internal diameter d | 6 (mm) |
| Length max. | 500 (m) |
| Material hose | PU |
| Bending radius min. | 45 (mm) |
| Pressure range (operating pressure) [bar] | -0.95 ... 10.00 bar |
| Operating temperature | -35 ... 60 °C |
| Color | Milky-transparent |
- NEW
VSL 10-7 PU MI-TR10.07.09.00084Hose for vacuum and
compressed-air systems
| Outside diameter D | 10 (mm) |
| Internal diameter d | 7 (mm) |
| Length max. | 50 (m) |
| Material hose | PU |
| Bending radius min. | 60 (mm) |
| Pressure range (operating pressure) [bar] | -0.95 ... 10.00 bar |
| Operating temperature | -40 ... 85 °C |
| Color | Milky-transparent |
STV-W G1/8-AG 610.08.02.00288Push-in Fitting, swivelling
elbow
| Thread G1 | G1/8"-M |
| Outer hose diameter | 6 (mm) |
| Material | Plastics |
| Operating temperature | °C |
| Length L | 20.8 (mm) |
STV-GE G1/8-AG 610.08.02.00204Push-in Fitting, straight
| Thread G1 | G1/8"-M |
| Outer hose diameter | 6 (mm) |
| Material | Brass |
| Operating temperature | -20 ... 80 °C |
| Outside diameter D | 11.4 (mm) |
| Length L | 16.4 (mm) |
STV-GE G1/4-AG 1010.08.02.00251Push-in Fitting, straight
| Thread G1 | G1/4"-M |
| Outer hose diameter | 10 (mm) |
| Material | Brass |
| Operating temperature | -20 ... 80 °C |
| Outside diameter D | 16.5 (mm) |
| Length L | 23.4 (mm) |
STVI-GE G1/4-IG 810.08.02.00154Push-in Fitting, straight
| Thread G1 | G1/4"-F |
| Outer hose diameter | 8 (mm) |
| Material | Brass |
| Operating temperature | -20 ... 80 °C |
| Outside diameter D | 14.5 (mm) |
| Length L | 33.5 (mm) |
- NEW
SCHR 4762 M4x10 A220.01.02.00267Machine screw
| Standard | ISO 4762 |
| Thread G | M4 |
| Material | Austenitic stainless steel |
