Vacuum Technology for the Packaging Industry
Handling Products with Different Properties
The packaging industry is one of the largest growth markets in the world. Packed items such as food, beverages and other consumer goods require a wide variety of packaging. Goods must be protected from spoilage, damage and contamination, while being presented in an attractive and appropriate manner. The food and beverage and pharmaceutical sectors have the most influence on packaging, and their choices are ultimately based on the consumer.
At the same time, the packaged items themselves have many different requirements for packaging materials. Solid, liquid or powdery goods require individual packaging materials such as bottles, tubes, buckets, cardboard boxes and blister packs. This means a wide variety of materials, machines and technologies are required for the packaging industry.
The processes in the packaging industry are essentially divided into primary packaging, secondary packaging and end-of-line palletizing. Vacuum technology from Schmalz is used in all areas of the packaging industry: in suction cups for putting chocolates into trays (primary packaging), in compact end effectors for placing filled bags in a cardboard box (secondary packaging) and in vacuum systems for automated palletizing (EOLP).
Product Inquiry
Process Steps and Vacuum Solutions in the Packaging Industry
Click on the individual areas to learn more.
1
Vacuum Technology for Processes in the Primary Packaging Sector
2
Vacuum Technology for Processes in the Secondary Packaging Sector
3
Vacuum Technology for Processes in the End of Line Palletizing Sector
Vacuum Technology for Processes in the Primary Packaging Sector
Vacuum Technology for Processes in the Primary Packaging Sector
Requirements for Vacuum Technology
Suction cup materials suitable for use with food and beverages
The food and beverage and pharmaceutical industries have the highest standards for suction cup materials. Schmalz offers suction cups made of FDA-compliant materials. These materials can be cleaned with the standard cleaning agents typically used the food and beverage and pharmaceutical industries.
Product recommendations for the primary packaging sector
Bellows Suction Cups SPB4f (4.5 Folds)
- Diameter: 30 to 50 mm
- Material: SI
- Modular connection nipple or push-in function
Show category
Bellows Suction Cups SPB2f (2.5 Folds)
- Diameter: 15 to 50 mm
- Material: SI (use in the food industry)
Show category
Bellows Suction Cups SPOB1f (Oval, 1.5 Folds)
- Dimensions: 35 x 15 to 80 x 35 mm
- Material: SI (use in the food industry)
Show category
Chocolate Suction Cups SPG
- Diameter: 33 mm
- Material: SI, SI-HD (use in the food industry)
Show category
Flow Grippers SCG
- Suction rate: 270 l/min to 650 l/min
- Diameter suction plate: 20 mm to 50 mm
Show category
Vacuum Technology for Processes in the Secondary Packaging Sector
Vacuum Technology for Processes in the Secondary Packaging Sector
Requirements for Vacuum Technology
Handling both rigid and flexibly packed products

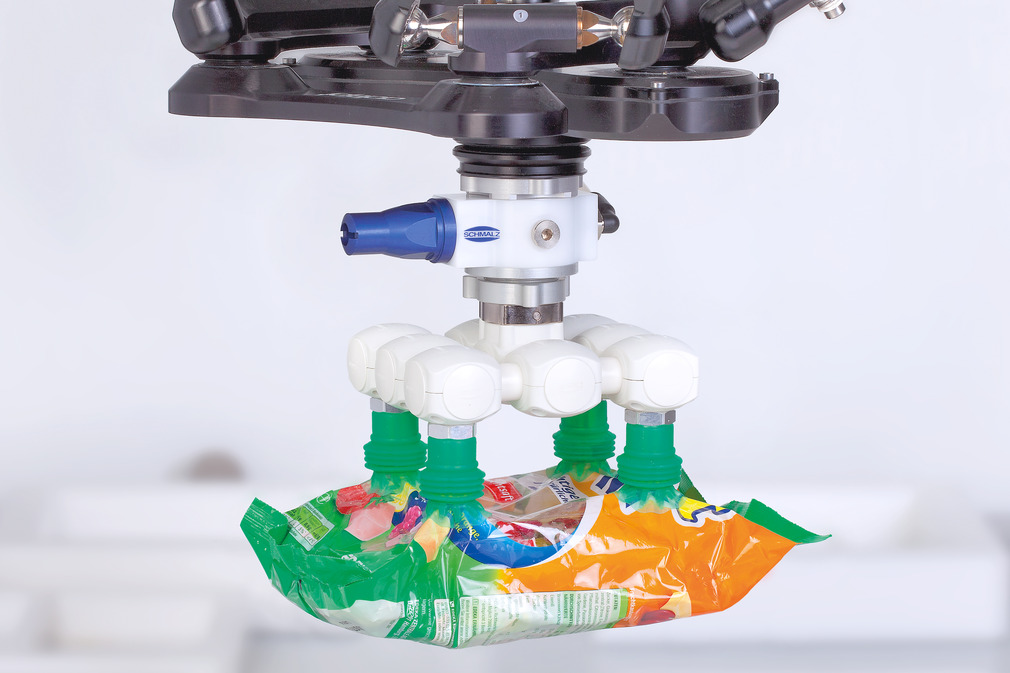

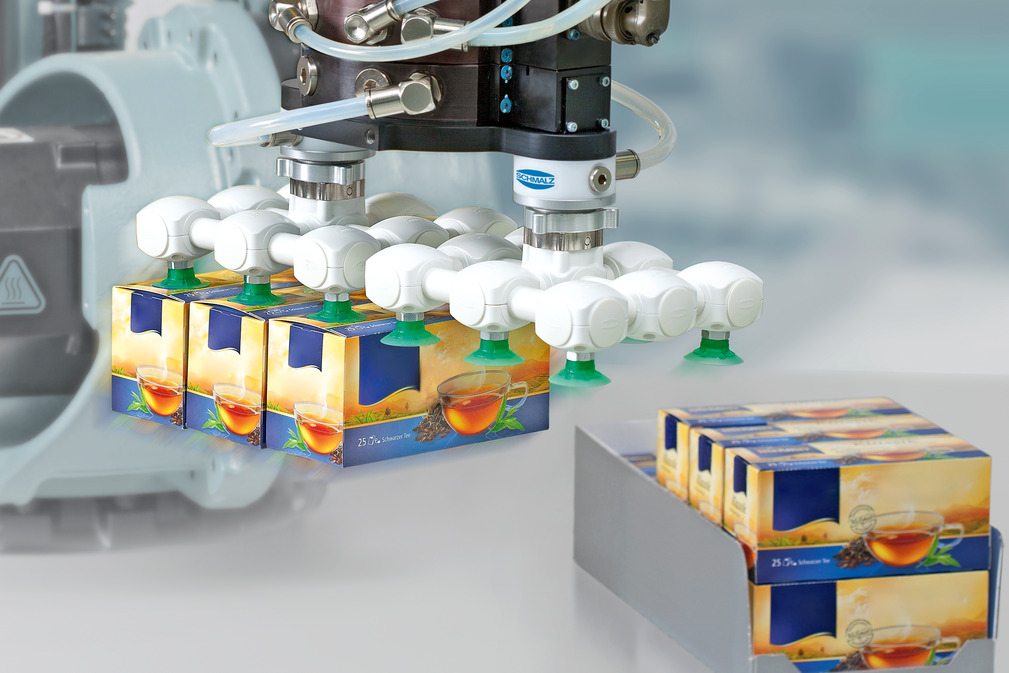

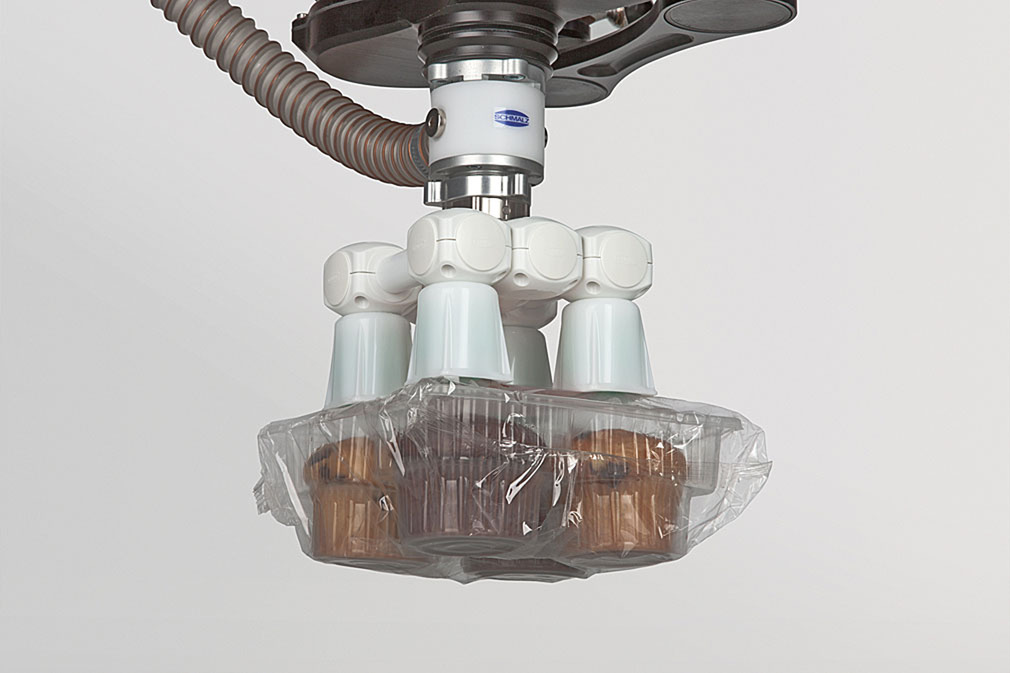

The grippers have to flexibly adapt to different packaging materials. Plastic films can only be gripped by suction cups with particularly flexible sealing lips. Porous, abrasive cardboard boxes require suction cups with excellent sealing properties and particularly long service lives.
Handling blister packs, ampouls, vials and syringes in the pharmaceutical industry
Blister packs, ampules and vials require suction cups with small diameters. At the same time, the products must be safely moved or held in place. The broad range of suction cups also meets the high hygienic requirements.
Product recommendations for the secondary packaging sector
Starter Set VEE
- 120 VEE components
- Including eight suction cups SPB4-30
- Build up to two turnkey VEE configurations
Show category
Flat Suction Cups SPF
- Diameter: 10 mm to 60 mm
- Material: ED
- Connection element modular
Show category
Bellows Suction Cups SPB1 (1.5 Folds)
- Diameter: 10 to 80 mm
- Material: ED
- Connection element modular
Show category
Bellows Suction Cups SPOB1 (Oval, 1.5 Folds)
- Dimensions: 60 x 20, 100 x 40 mm
- Material: ED
- Connection element modular
Show category
Bellows Suction Cups SPOB1f (Oval, 1.5 Folds)
- Dimensions: 35 x 15 to 80 x 35 mm
- Material: SI (use in the food industry)
Show category
Bellows Suction Cups SPB4 (4.5 Folds)
- Diameter: 20 to 50 mm
- Material: SI (use in the food industry)
Show category
Bellows Suction Cups SPB4f (4.5 Folds)
- Diameter: 30 to 50 mm
- Material: SI
- Modular connection nipple or push-in function
Show category
Bellows Suction Cups SPB2f (2.5 Folds)
- Diameter: 15 to 50 mm
- Material: SI (use in the food industry)
Show category
Bellows Suction Cups FGA PVC (1.5 Folds)
- Diameter: 13 to 22 mm
- Material: PVC (use in the food industry)
Show category
Suction Cups SFF / SFB1
- Suction area (Ø) from 10 mm to 40 mm
- Material: SI, EPDM, HT1, NBR-ESD
Show category
Vacuum Technology for Processes in the End of Line Palletizing Sector
Vacuum Technology for Processes in the End of Line Palletizing Sector
Requirements for the End-of-Line-Process
Palletizing and depalletizing
Entire product layers can be moved automatically with a layer gripping system SPZ or the area gripping systems FXP and FMP. The gripping system doesn’t have to be completely covered with products. The gripping system can be adapted to the individual requirements of the process. In addition, the area gripping systems are so flexible that they can move different products without requiring a gripper change.
Product recommendations for the End of Line Palletizing Sector
Vacuum Area Gripping System FXP / FMP
- Universal gripper for automated palletizing and depalletizing, commissioning and sorting
- Dimensions: 442 x 130 to 1,432 x 130 mm
- Sealing element: sealing foam, suction cups
Show category
Layer Gripping Systems
- High-performance palletizers for warehousing and intralogistics
- Combination of different gripping principles (vacuum and mechanic)
Show category
