Simple clamping enables fast assembly
Low profile flange ensures low interference contour
Flange patterns suitable for common lightweight robots
Different flange inserts allow quick change between different robot types
Configure instead of construct
Assemble an individual PXT gripper easily and quickly in just a few steps from the modular system.

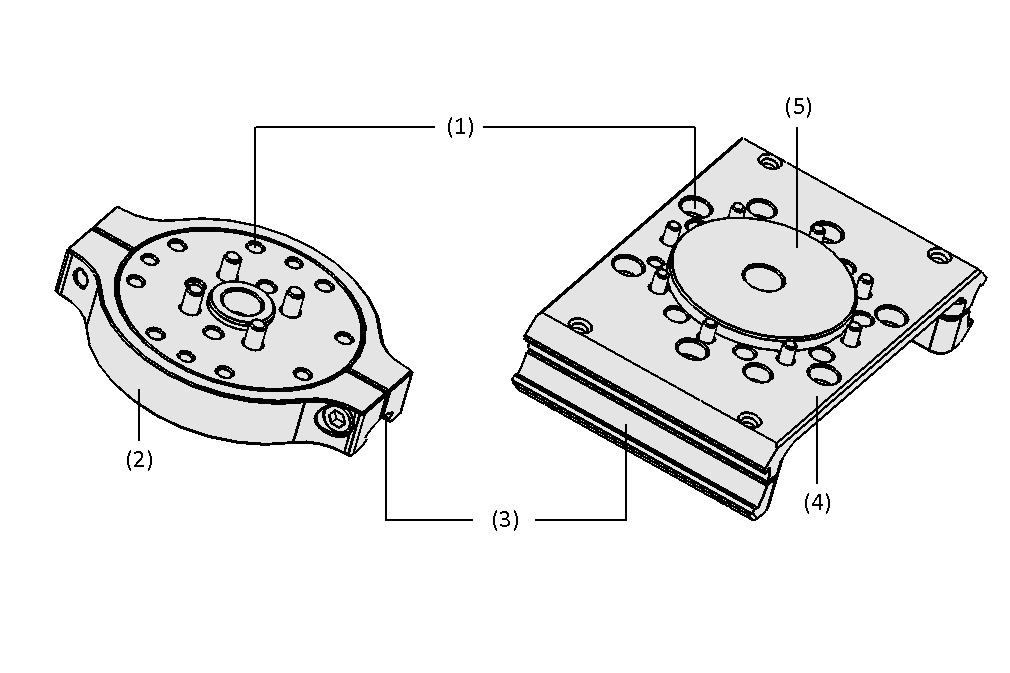

Design
Design
- Suitable flange pattern (1) for common lightweight robots
- Flange ring for the connection of a single beam (2)
- Clamping (3) for easy mounting
- Flange for connecting double beams (4)
- Robot specific centering disk (5) as mounting aid
Technical Data
Technical Data
- Flange patterns suitable for common lightweight robots
- Connection for single or double parallel beam
- Suitable for tube profile D30
- Clamping rings and clamping strips for easy mounting
Industries
Industries
- •Universal
Documentation
Documentation
The matching documentation for this product is available in this section.
| Documents | Language |
|---|---|
| English |
1 - 2 from 2 results
SET PXT 63 9409-1 2LT YASKAWA
Part no.: 10.01.49.00027
Complete flange for connection to lightweight robots
| Utilization design | Modular gripper system |
| Dmk | 63 (mm) |
| Number of longitudinal beams | 2 |
| for | YASKAWA |
| Type | hc10dt |
| Standard | DIN EN ISO 9409-1 |
| Weight | 322.6 (g) |
| Utilization design | Modular gripper system |
| Dmk | 50 (mm) |
| Number of longitudinal beams | 1 |
| for | Universal Robots |
| Type | ISO 9409-1 |
| Standard | DIN EN ISO 9409-1 |
| Weight | 221 (g) |
