SW 25 G1/8-AG
Part no.: 10.05.04.00034
Flow resistor for reduction of the volume flow rate
Industries: Universal
| Length L | 6 (mm) |
| Thread G1 | G1/8"-M |
| Material | Aluminum |

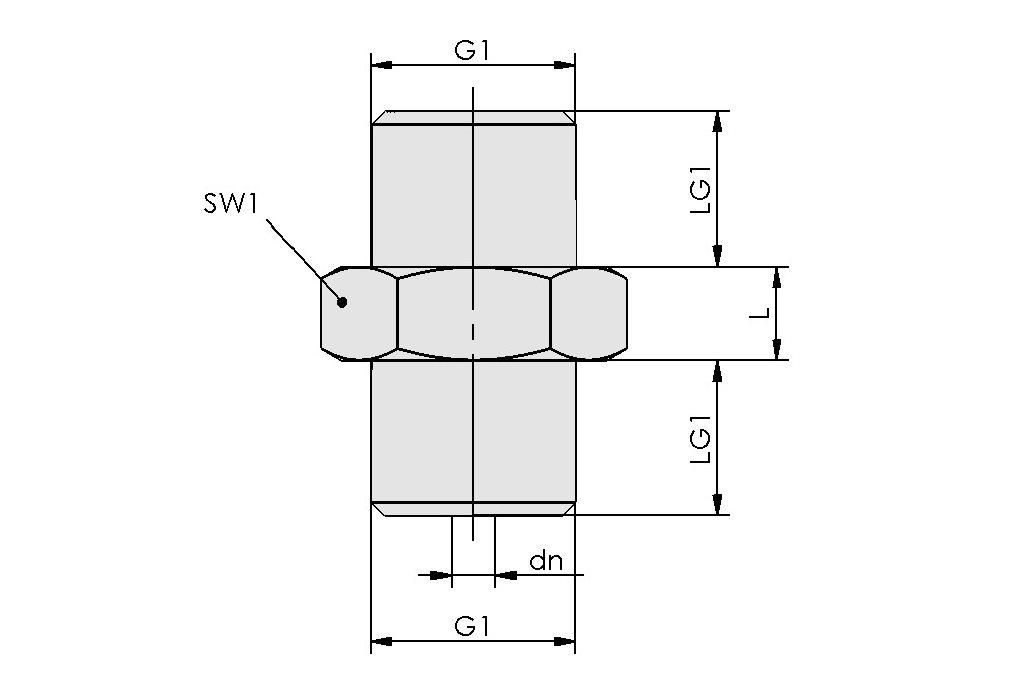

Design Data
Design Data
| Attribute | Value |
|---|---|
| G1 | G1/8"-M |
| dn | 0.25 mm |
| L | 6 mm |
| LG1 | 9.5 mm |
| SW1 | 14 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Required suction capacity for pu = -0.3 bar | 0.01 m³/h |
| Required suction capacity for pu = -0.3 bar | 0.2 l/min |
| Required suction capacity for pu = -0.6 bar | 0.02 m³/h |
| Required suction capacity for pu = -0.6 bar | 0.3 l/min |
| Weight | 5.9 g |
| Product family | SW |
