Part no.: 10.01.30.00135

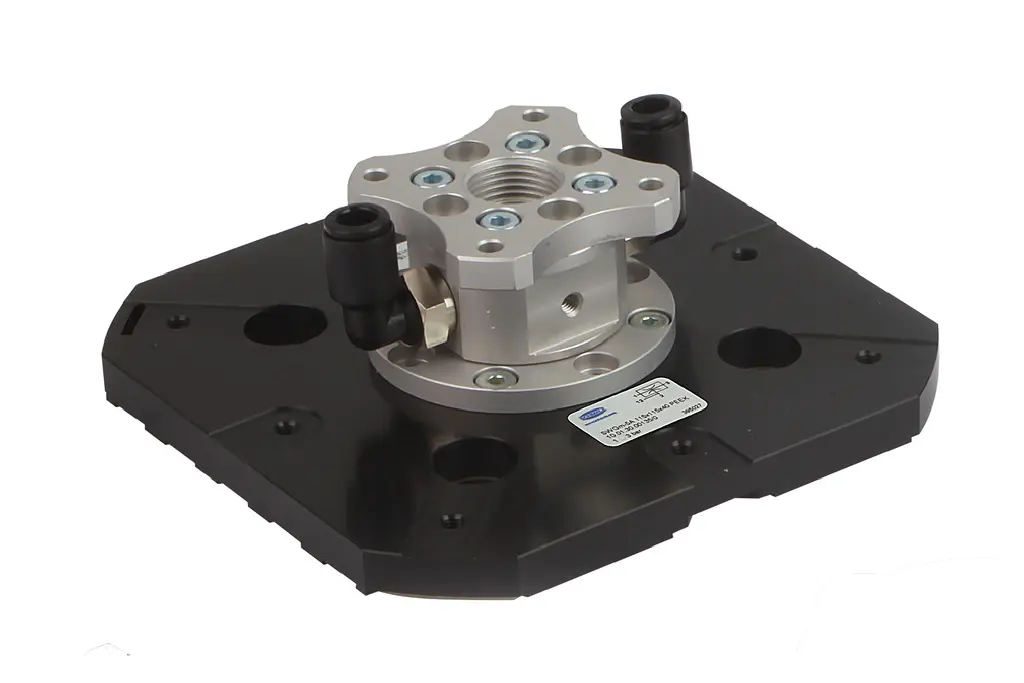

Wafer gripper for fast and careful handling of photovoltaic components
Industries: Solar
| Shape | Axial exhaust air |
| Length L | 115 (mm) |
| Width B | 115 (mm) |
| Height H | 40 (mm) |
| Number of ejectors | 1 |
| Performance class | E100 |
| Shape compact ejectors | Blow-off function |
| Material | Polyetheretherketon |

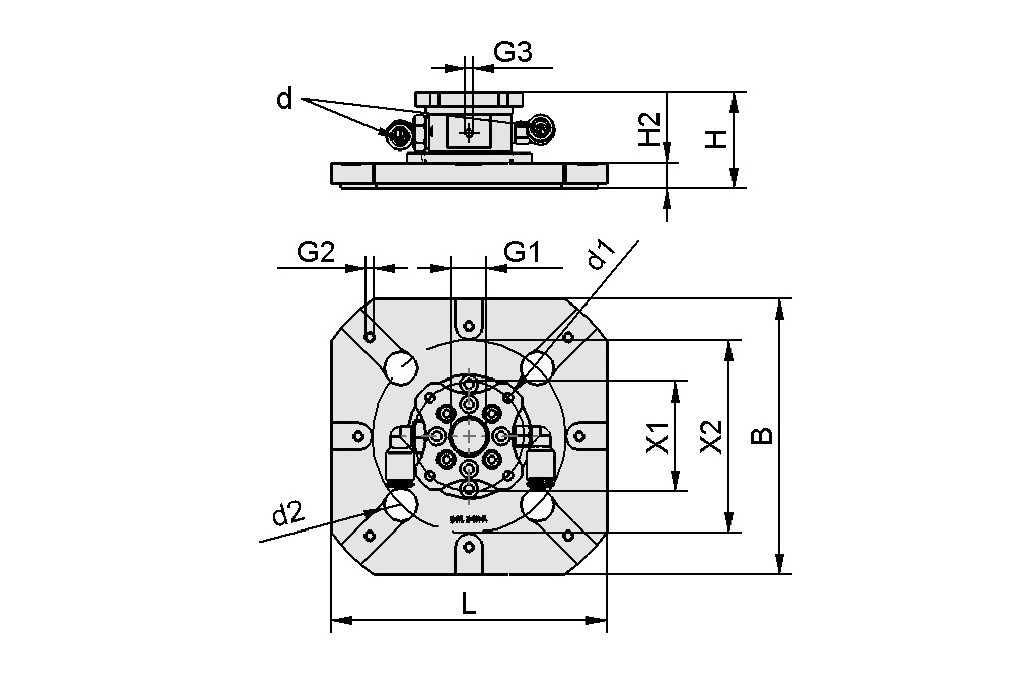

| Attribute | Value |
|---|---|
| B | 115 mm |
| d | 6 mm |
| d1 | 4 mm |
| d2 | 14 mm |
| G1 | G3/8"-F |
| G2 | M4-F |
| G3 | M4-F |
| H | 40 mm |
| H2 | 10.5 mm |
| L | 115 mm |
| X1 | 46 mm |
| X2 | 80.6 mm |
| Attribute | Value |
|---|---|
| Pressure range (operating pressure) [bar] | 1.0 ... 3.0 bar |
| Size | 5 |
| Holding force | 10 ... 35 N |
| Suction rate [m³/h] | m³/h |
| Suction rate | 190 ... 350 l/min |
| Air consumption [m³/h] | m³/h |
| Air consumption | 60 ... 120 l/min |
| Operating temperature | 5 ... 75 °C |
| Weight | 210 g |
| Shape | Axial exhaust air |
| Product family | SWGM |
| Length L | 110 (mm) |
| Width B | 110 (mm) |
| Height H | 3 (mm) |
| Suction cup material | Polyetheretherketone PEEK |
| Utilization design | Wafer gripper |
| Width B | 14 (mm) |
| Length L | 30.9 (mm) |
| Utilization design | Wafer gripper |
| Cross-beam connection | Universal holder |
| Width B | 14 (mm) |
| Length L | 30.9 (mm) |
| Thread G1 | M8x1-F |
| Utilization design | Wafer gripper |
| Width B | 14 (mm) |
| Length L | 30.9 (mm) |
| Thread G1 | M12x1-F |
| Utilization design | Wafer gripper |
| Width B | 15 (mm) |
| Length L | 32 (mm) |
| Utilization design | Wafer gripper |
| Width B | 14 (mm) |
| Number of holes | 3 |
| Length L | 30.85 (mm) |
| Angle of radiation | 90 (°) |
| Connection | Hose 4/2 |
| Slewing angle W | 0 (°) |
| Nominal size | 1.5 (mm) |
| Voltage DC | 24 V - DC |
| Function valve | 3/2 multiway valve |
| Control valve | Normally closed |
| Connection thread | M5-M |
| Pressure range (operating pressure) [bar] | 2.5 ... 7.0 bar |
| Power consumption DC | 2.8 (W) |
| Interface electrical connection | Cable, 2-pole |
| Weight | 0.065 (kg) |
| Nominal size | 2.5 (mm) |
| Voltage DC | 24 V - DC |
| Function valve | 3/2 multiway valve |
| Control valve | Normally closed |
| Connection thread | G1/8"-M |
| Pressure range (operating pressure) [bar] | 2.0 ... 8.0 bar |
| Power consumption DC | 4.5 (W) |
| Interface electrical connection | Cable, 2-pole |
| Weight | 0.1 (kg) |
| Outside diameter D | 63 (mm) |
| Length L | 10.5 (mm) |
| Size | AD1 |
| Outside diameter D | 63 (mm) |
| Length L | 11.5 (mm) |
| Size | UNI |
| Outside diameter D | 55 (mm) |
| Length L | 9.5 (mm) |
| Size | JP1 |
| Thread G1 | G3/8"-F |
| Utilization design | Wafer- / Composite gripper |
| Outside diameter D | 18 (mm) |
| Length L1 | 46 (mm) |
