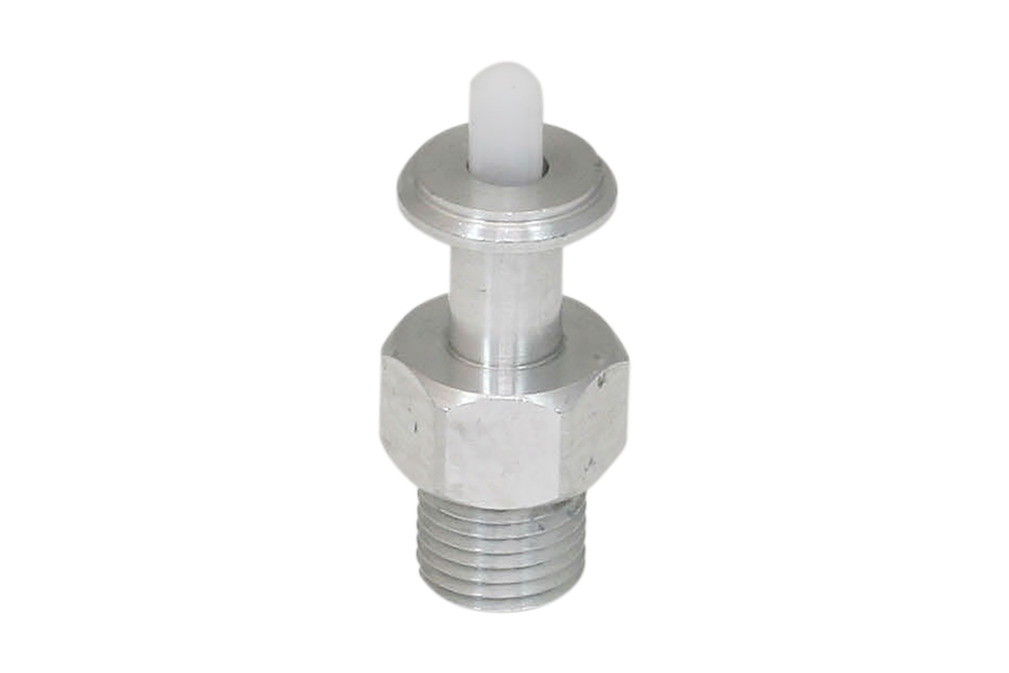

Part no.: 10.05.10.00058

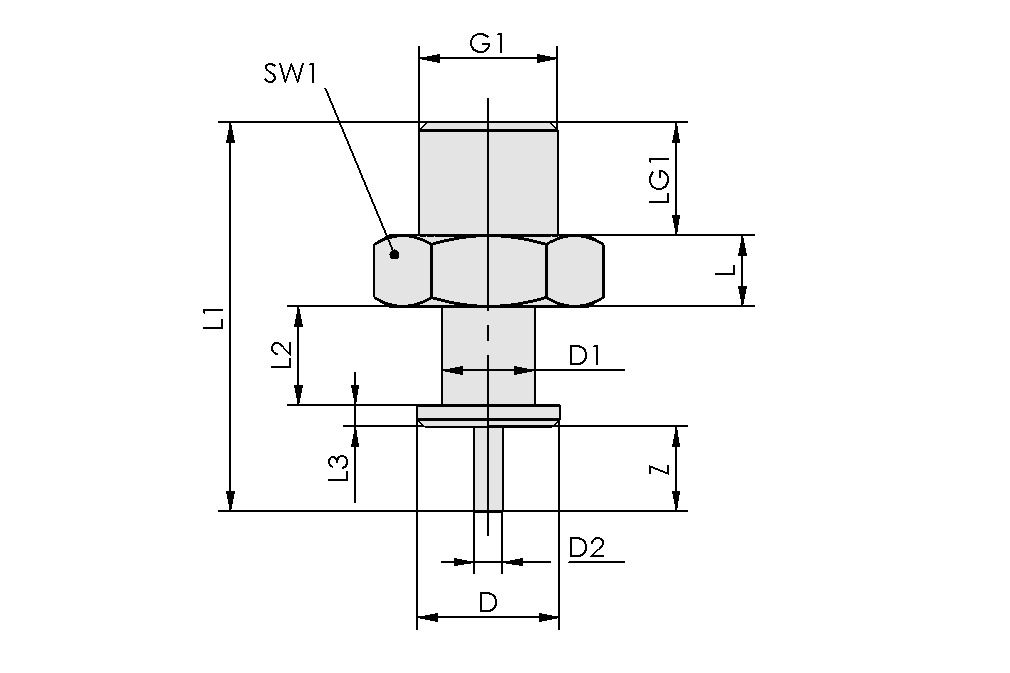

Design Data
Design Data
| Attribute | Value |
|---|---|
| D | 16.8 mm |
| D1 | 8.7 mm |
| D2 | 6 mm |
| G1 | G1/4"-M |
| L | 10 mm |
| L1 | 45.7 mm |
| L2 | 12.3 mm |
| L3 | 3 mm |
| LG1 | 11 mm |
| SW1 | 17 mm |
| Z (Stroke) | 8.4 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Nominal flow rate | 78 l/min |
| Nominal flow rate | 4.6 m³/h |
| Weight | 9.8 g |
| Product family | TV |
