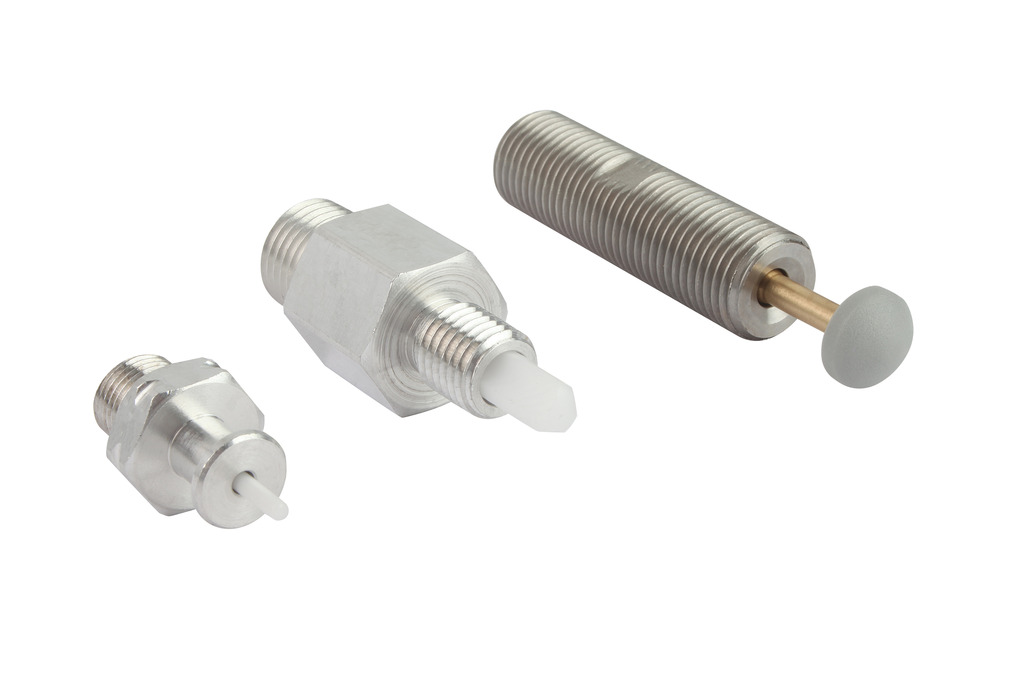

Touch Valves TV / TVN
Nominal flow from 12 l/min to 160 l/min
Mechanically actuated valve with spring loaded plunger opens vacuum line only when the suction cups are occupied
Suitable for all workpiece materials, even porous materials
Minimum size allows use in the tightest of spaces
Design
Design
- Touch valve with spring loaded plunger and protective cap
- Type TVN with molded-on suction cup nipple for direct mounting
- Does not react if the suction cup is only partially in contact with the workpiece
Technical Data
Technical Data
- Nominal flow: 0.7 to 9.6 m³/h
- Connection: G1/8” to G1/2”
Documentation
Documentation
The matching documentation for this product is available in this section.
| Documents | Language |
|---|---|
| English |
