FAS 80x38 G1-AG EMVP10.05.01.00063Filter with mounting kit
| Outside diameter D | 80 (mm) |
| Length L | 38 (mm) |
| Thread G1 | G1"-M |
| Utilization design | Solenoid valve |
EMV 20 230V-AC 3/2 NO
Part no.: 10.05.01.00075
Solenoid valve EMV for direct control of vacuum and compressed air
| Nominal size | 20 (mm) |
| Nominal flow at 0.1 bar | 61.7 (m³/h) |
| Voltage DC | 230 V - AC |
| Function valve | 3/2 multiway valve |
| Control valve | Normally open |
| Connection thread | G1"-F |
| Pressure range (operating pressure) [bar] | -1.00 ... 15.00 bar |
| Weight | 6.375 (kg) |

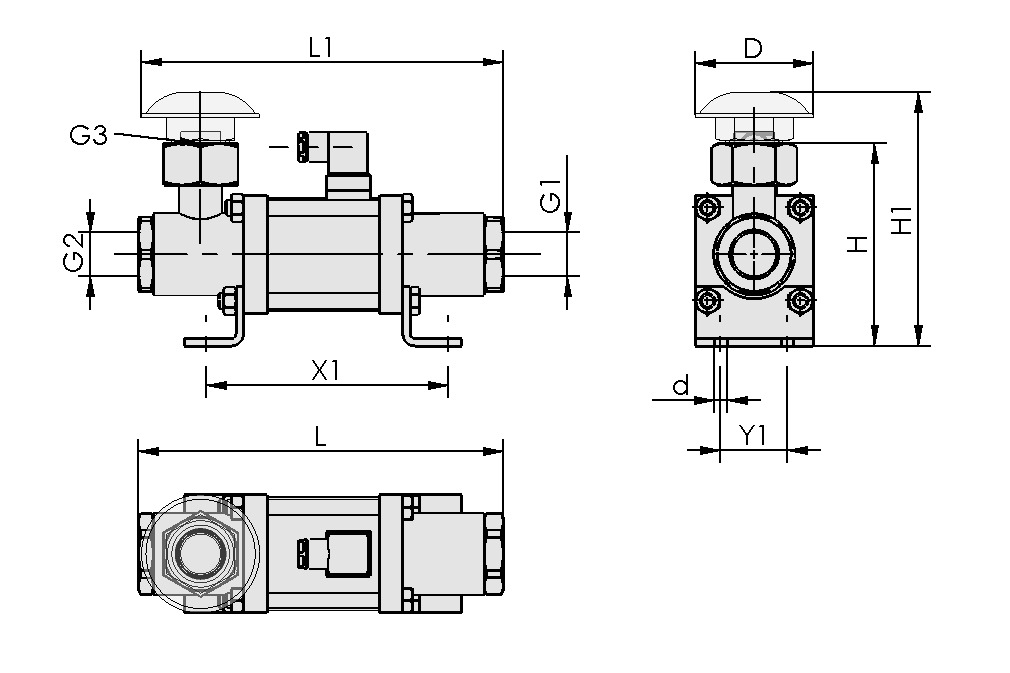

Design Data
Design Data
| Attribute | Value |
|---|---|
| d | 8.5 mm |
| D | 80 mm |
| G1 | G1"-F |
| G2 | G1"-F |
| G3 | G1"-F |
| H | 137 mm |
| H1 | 172 mm |
| L | 247 mm |
| L1 | 245 mm |
| X1 | 148 mm |
| Y1 | 45 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Nominal size | 20 mm |
| Nominal flow at 0.1 bar | 1,029 l/min |
| Nominal flow at 0.1 bar | 61.7 m³/h |
| Pressure range (operating pressure) [bar] | -1.00 ... 15.00 bar |
| Control valve | Normally open |
| Voltage DC | 230 V - AC |
| Closing time | 110 ms |
| Weight | 6.38 kg |
| Product family | EMV |

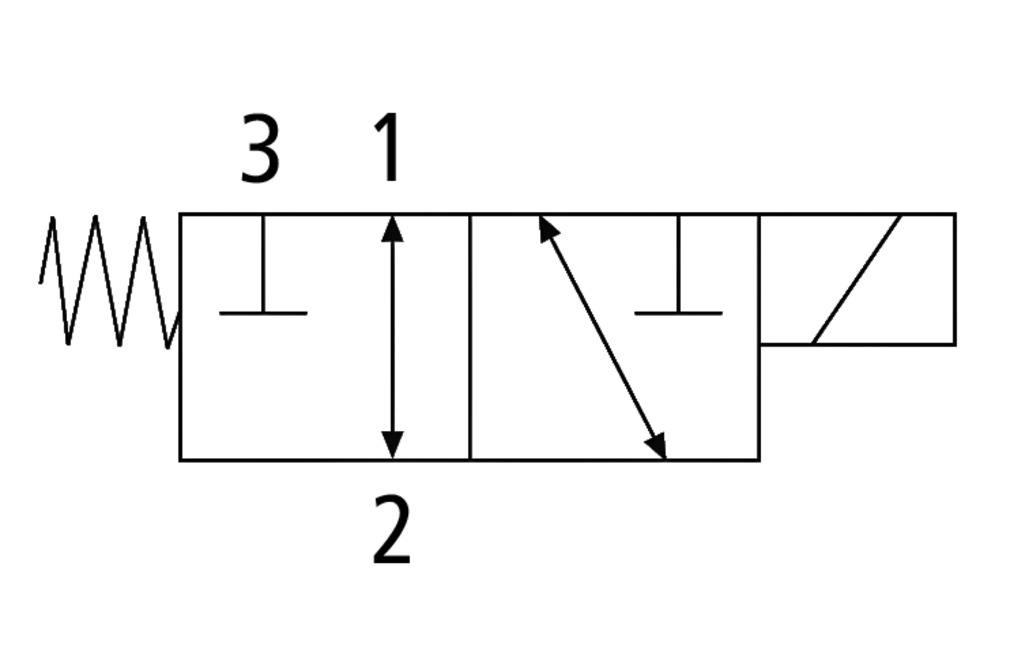

Circuit diagram
Circuit diagram
Documentation
Documentation
Spare parts
Accessories
