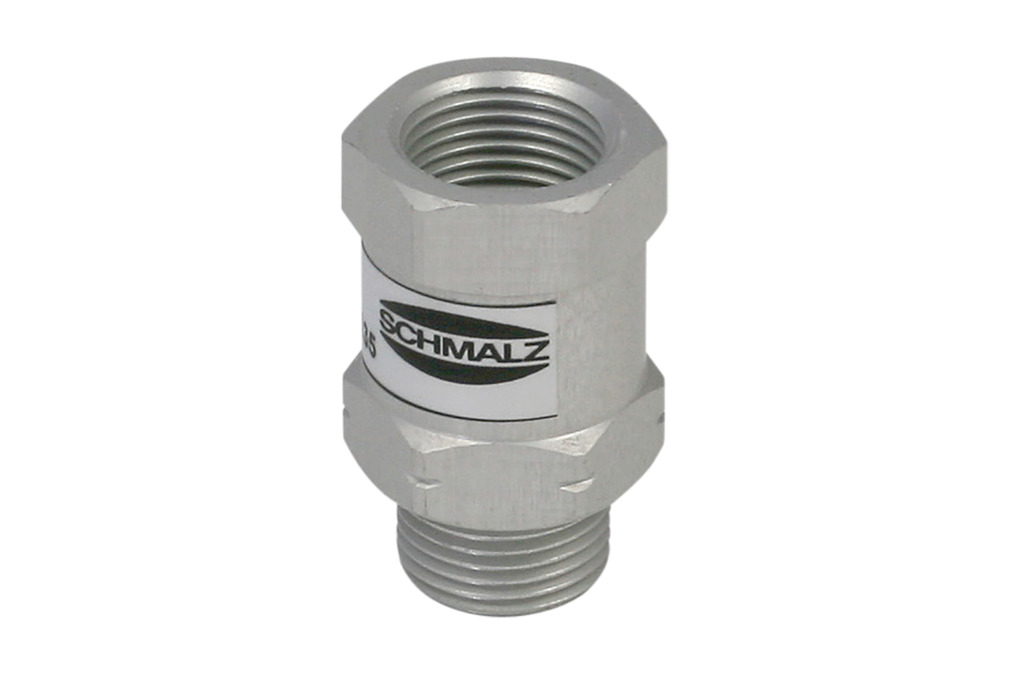

Part no.: 10.05.03.00135

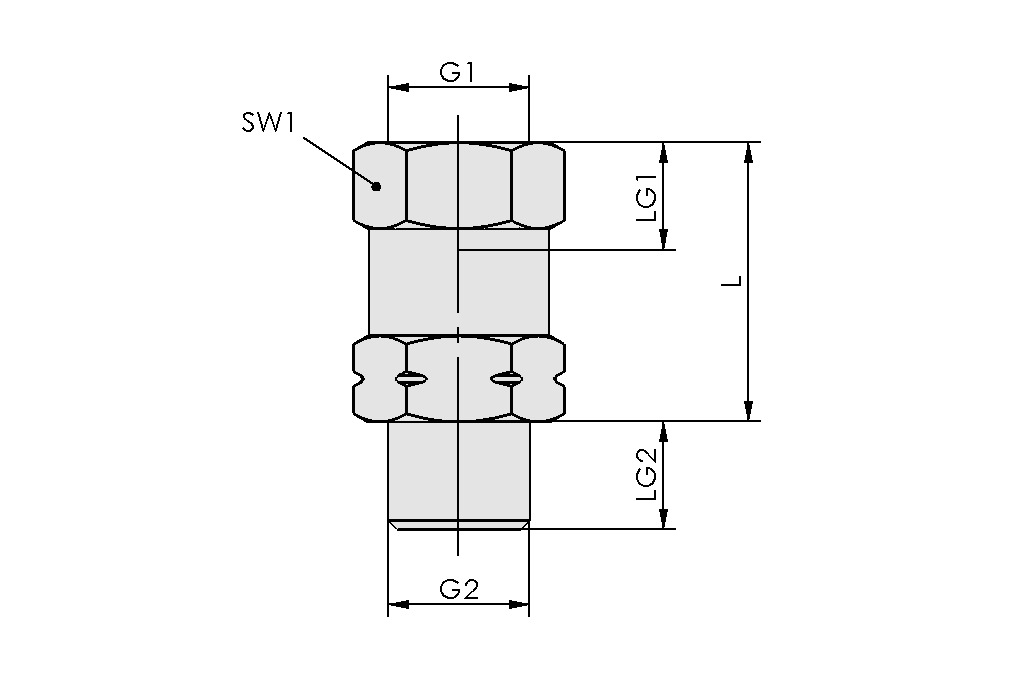

Design Data
Design Data
| Attribute | Value |
|---|---|
| G1 | G3/8"-F |
| G2 | G3/8"-M |
| L | 29 mm |
| LG1 | 12 mm |
| LG2 | 10 mm |
| SW1 | 22 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Required suction capacity for pu = -0.3 bar | 0.44 m³/h |
| Required suction capacity for pu = -0.3 bar | 7.3 l/min |
| Required suction capacity for pu = -0.6 bar | 0.48 m³/h |
| Required suction capacity for pu = -0.6 bar | 8 l/min |
| Flow rate max. | 35.4 m³/h |
| Flow rate max. vacuum | 590 l/min |
| Weight | 30.3 g |
| Product family | SVK |
