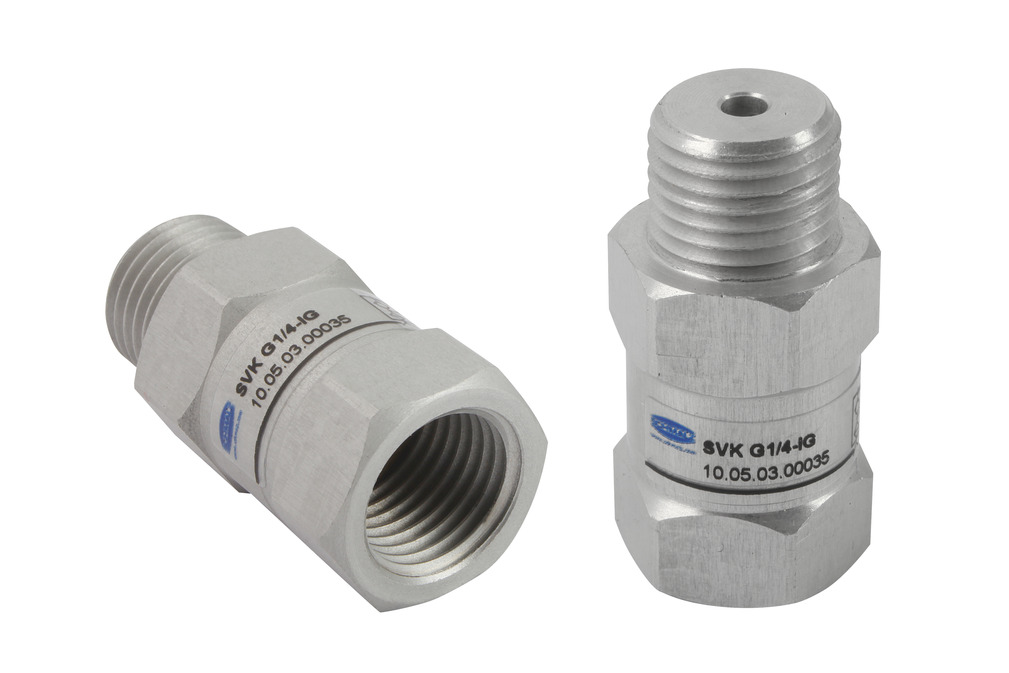

Check Valves SVK, SVKG, SVV
Connection thread from M5 to G1/2"
Ball seat valve closes the line when the suction cups are not occupied, thus maintaining the system vacuum
Low leakage can be compensated by bypass
Wide range of nominal sizes, also for high nominal flow
With male thread at the top (type SVK) or bottom (type SVKG) suitable for all common suction cups and plates
Design
Design
- Ball seat valve
- Ball in brass seat, installed in a space saving manner in an aluminum housing
- On the type SVV, the flow rate can be adjusted continuously with an adjusting screw
- Suitable for installation in any orientation
Technical Data
Technical Data
- Max. blow off flow rate: 4.8 to 47.4 m³/h
- Connection: M5 to G1/2”
Documentation
Documentation
The matching documentation for this product is available in this section.
| Documents | Language |
|---|---|
| English |
