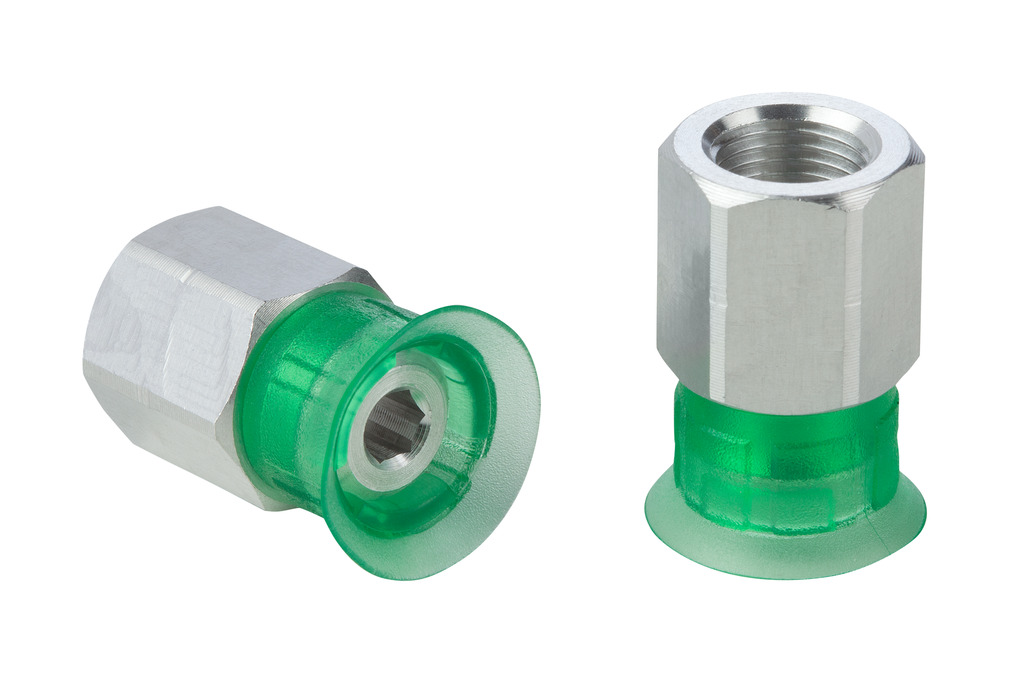

Part no.: 10.01.01.13254

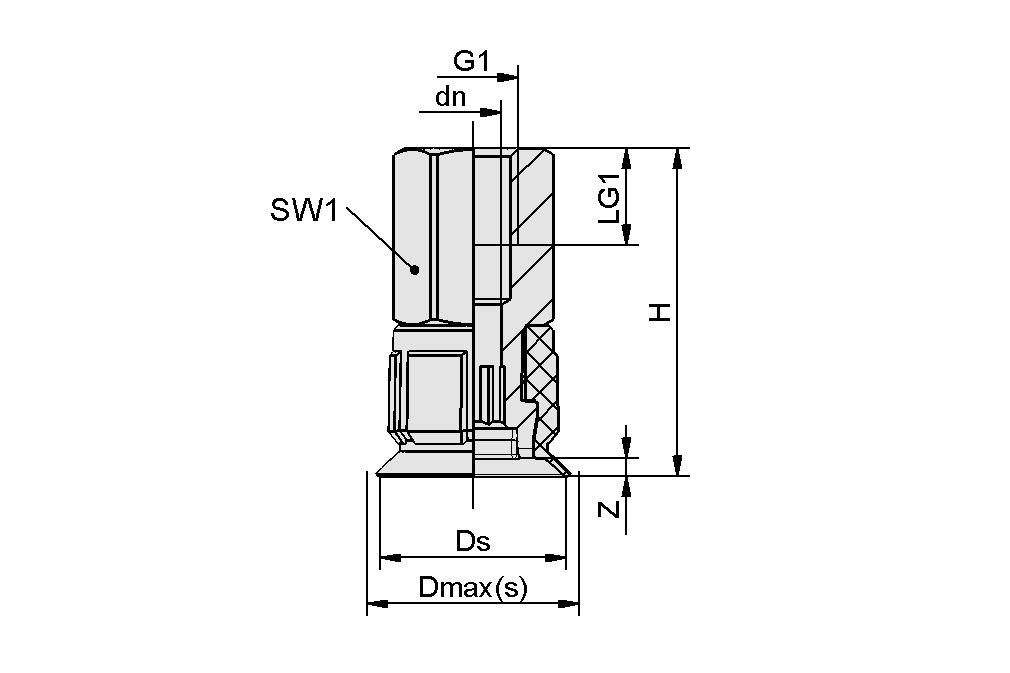

| Attribute | Value |
|---|---|
| dn | 3.1 mm |
| Dmax(S) | 12 mm |
| Ds | 10.5 mm |
| G1 | M5-F |
| H | 18.5 mm |
| LG1 | 5.5 mm |
| SW1 | 8 mm |
| Z (Stroke) | 1 mm |
| Attribute | Value |
|---|---|
| Suction force (-600mbar) | 4.4 N |
| Pull-off force | 5.2 N |
| Lateral force | 3.5 N |
| Volume | 0.3 cm³ |
| Workpiece radius min. (convex) | 8 mm |
| Hose inner diameter (recom.) d | 4 mm |
| Size | 10 |
| Number of folds | 0 |
| Suction cup material | Elastodur ED |
| Material hardness [Shore A] | 65 Shore A |
| Weight | 1.5 g |
| Product family | SPF |
| Connection type | 030 |
| Connection | M5-F |
| Length L1 | 15.8 (mm) |
| Fitting length | 10 (mm) |
| Nominal diameter dn | 3.1 (mm) |
| Size | 10 |
| Suction cup material | Elastodur ED |
| Material hardness [Shore A] | 65 (Shore A) |
| Height H | 8.5 (mm) |
