Part no.: 10.01.06.03526

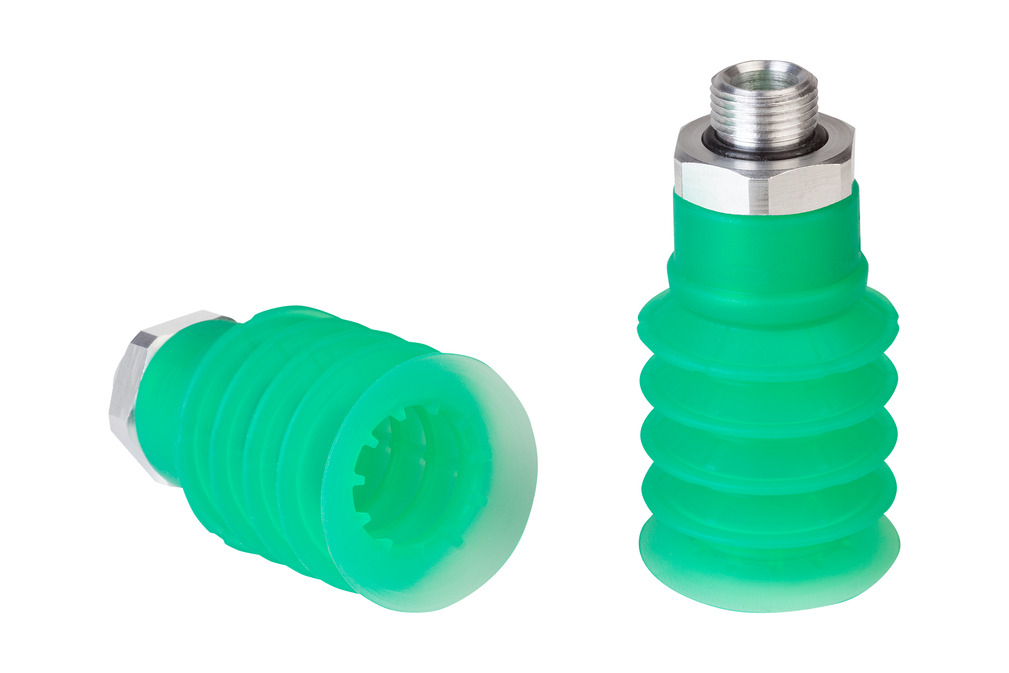

Bellows suction cup (round) for very uneven workpieces
| Size | 40 |
| Suction cup material | Silicone SI |
| Material hardness [Shore A] | 55 (Shore A) |
| Thread G1 | G1/4"-M |
| Number of folds | 4.5 |
| Attribute | Value |
|---|---|
| d2 | 23 mm |
| dn | 8 mm |
| Dmax(S) | 41.5 mm |
| Ds | 40.5 mm |
| G1 | G1/4"-M |
| H | 73.1 mm |
| LG1 | 10 mm |
| SW1 | 27 mm |
| Z (Stroke) | 27 mm |
| Attribute | Value |
|---|---|
| Suction force (-600mbar) | 25 N |
| Pull-off force | 39 N |
| Volume | 35.74 cm³ |
| Hose inner diameter (recom.) d | 12 mm |
| Number of folds | 4.5 |
| Suction cup material | Silicone SI |
| Material hardness [Shore A] | 55 Shore A |
| Size | 40 |
| Weight | 40.7 g |
| Product family | SPB4 |
| Connection type | 090 |
| Length L1 | 33.5 (mm) |
| Fitting length | 7.5 (mm) |
| Nominal diameter dn | 8 (mm) |
| Size | 40 |
| Suction cup material | Silicone SI |
| Material hardness [Shore A] | 55 (Shore A) |
| Number of folds | 4.5 |
| Clamping range [mm] | 20.0 ... 32.0 mm |
| Material | Steel |
| Surface | galvanised |
| Size | 32 |
| Material | Polyethylene |
| Utilization | SPB4-40 |
