Part no.: 10.01.06.04870

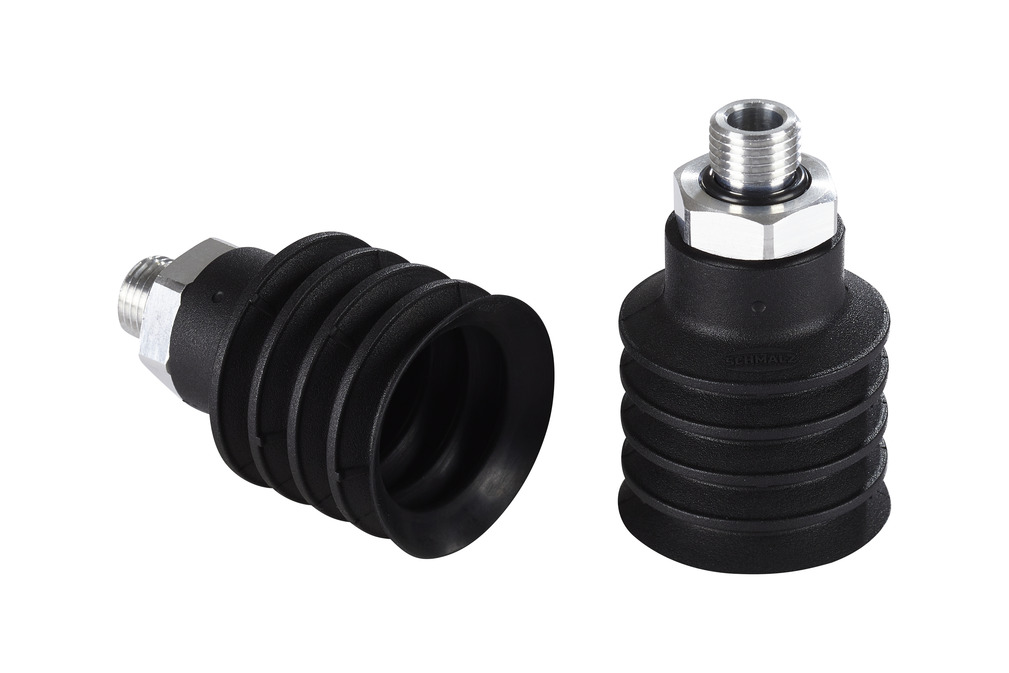

Bellow suction cup (round) for logistics applications for handling a wide range of workpieces
| Size | 40 |
| Suction cup material | Nitrile rubber NBR |
| Material hardness [Shore A] | 55 (Shore A) |
| Nipple material | Aluminum |
| Product family | FSGC |
| Number of folds | 4.5 |

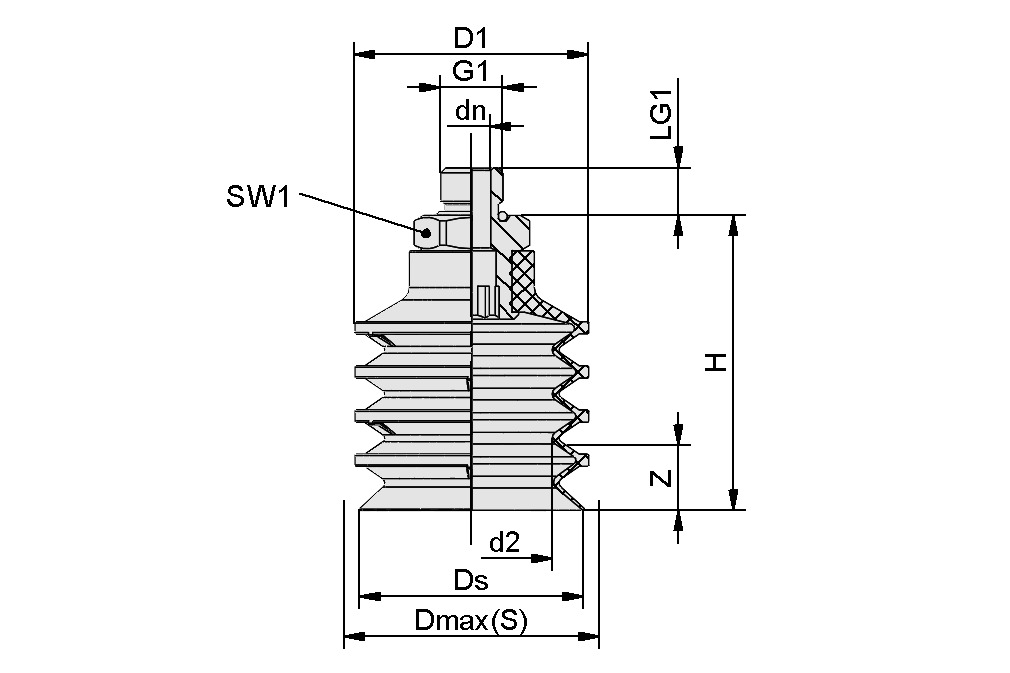

| Attribute | Value |
|---|---|
| Z (Stroke) | 25 mm |
| H | 54.5 mm |
| D1 | 39 mm |
| d2 | 27.5 mm |
| Ds | 39 mm |
| Dmax(S) | 41 mm |
| dn | 8 mm |
| G1 | G1/4"-M |
| G1 | G1/4-AG |
| LG1 | 10 mm |
| SW1 | 22 mm |
| Attribute | Value |
|---|---|
| Number of folds | 4.5 |
| Size | 40 |
| Suction cup material | Nitrile rubber NBR |
| Suction force (-600mbar) | 35 N |
| Product family | FSGC |
| Material hardness [Shore A] | 55 Shore A |
| Nipple material | Aluminum |
| Pull-off force (real) | 37 N |
| Volume | 29.1 cm³ |
| Hose inner diameter (recom.) d | 9 mm |
| Size | 40 |
| Suction cup material | Nitrile rubber NBR |
| Material hardness [Shore A] | 55 (Shore A) |
| Interface nipple family | SC080 |
| Number of folds | 4.5 |
| Connection type | 080 |
| Length L1 | 32 (mm) |
| Fitting length | 7.5 (mm) |
| Nominal diameter dn | 8 (mm) |
