- NEW
FSG 52 SI-MD-55 G1/4-IG
Part no.: 10.01.06.05725
Bellows suction cup (round) for very uneven workpieces
| Size | 52 |
| Suction cup material | Silicone SI metal detectable |
| Material hardness [Shore A] | 55 (Shore A) |
| Material characteristics | FDA-compatible |
| Nipple material | Aluminum |
| Connection | G1/4"-F |
| Number of folds | 2.5 |

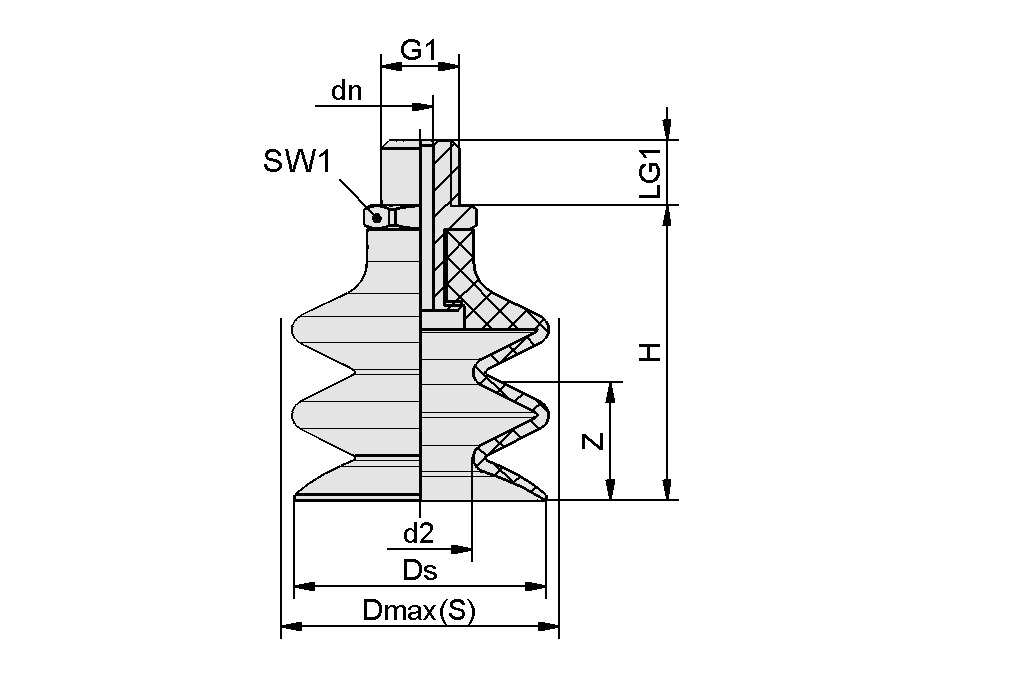

Design Data
Design Data
| Attribute | Value |
|---|---|
| d2 | 24.6 mm |
| Dmax(S) | 55 mm |
| dn | 4.4 mm |
| Ds | 52.5 mm |
| G1 | G1/4"-F |
| H | 63.7 mm |
| LG1 | 12 mm |
| SW1 | 17 mm |
| Z (Stroke) | 25 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Suction cup material | Silicone SI metal detectable |
| Material hardness [Shore A] | 55 Shore A |
| Size | 52 |
| Number of folds | 2.5 |
| Connection | G1/4-IG |
| Workpiece radius min. (convex) | 75 mm |
| Volume | 35 cm³ |
| Suction force (-600mbar) | 28.52 N |
| Pull-off force | 96 N |
| Hose inner diameter (recom.) d | 6 mm |
| Weight | 32 g |
| Product family | FSG |
