Part no.: 10.01.06.05723

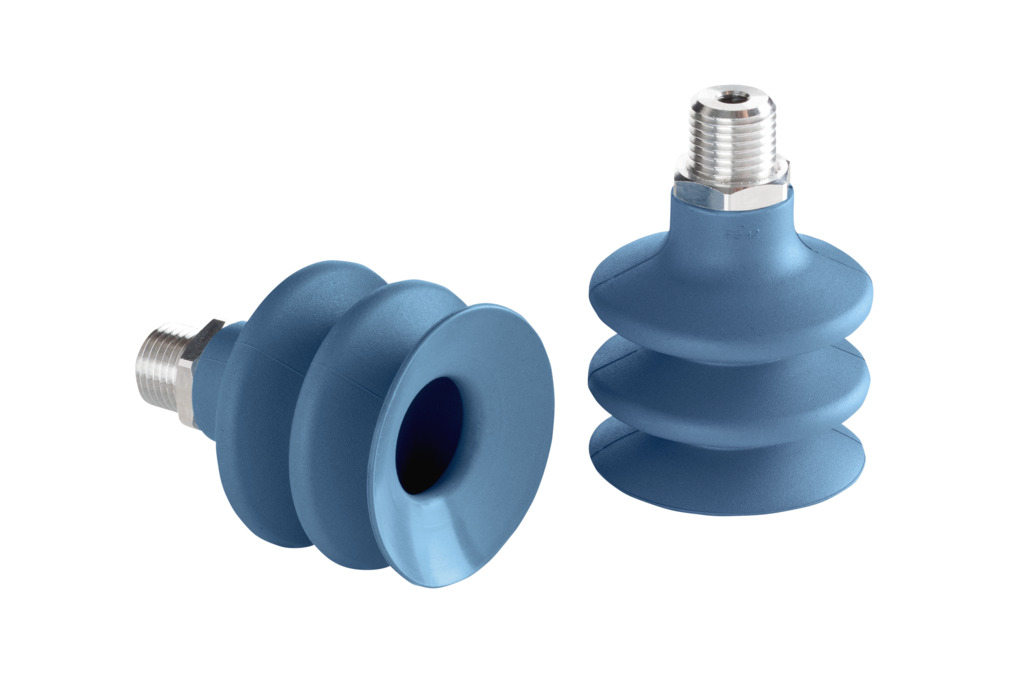

Bellows suction cup (round) for very uneven workpieces
| Size | 42 |
| Suction cup material | Silicone SI metal detectable |
| Material hardness [Shore A] | 55 (Shore A) |
| Material characteristics | FDA-compatible |
| Nipple material | Aluminum |
| Connection | G1/4"-M |
| Number of folds | 2.5 |

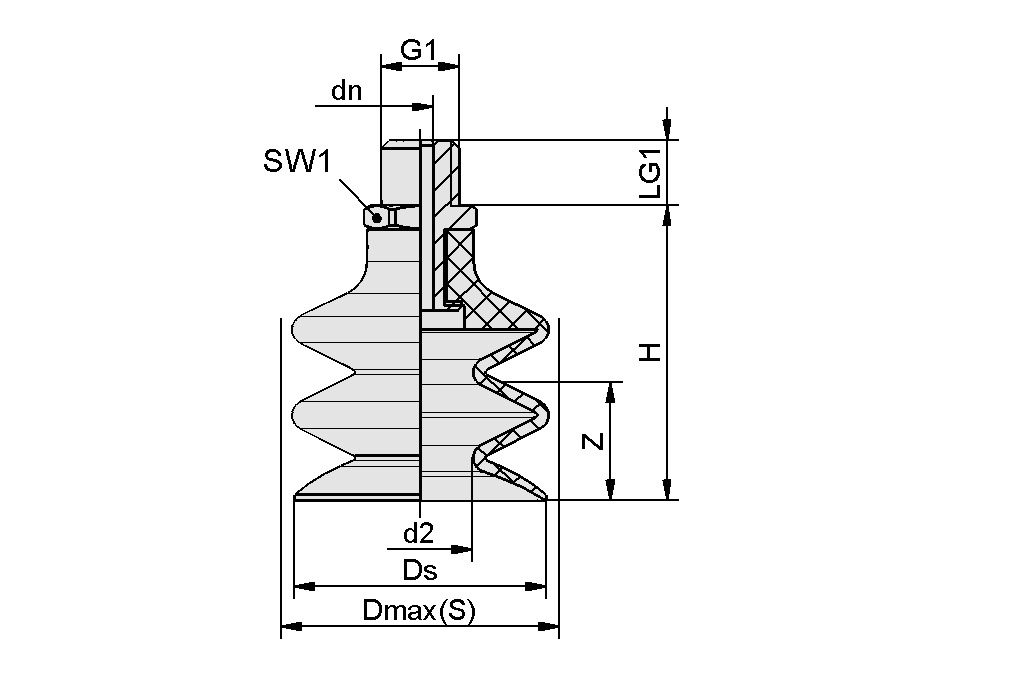

| Attribute | Value |
|---|---|
| d2 | 17.8 mm |
| Dmax(S) | 45 mm |
| dn | 4.4 mm |
| Ds | 42.6 mm |
| G1 | G1/4"-M |
| H | 50 mm |
| LG1 | 11 mm |
| SW1 | 17 mm |
| Z (Stroke) | 20 mm |
| Attribute | Value |
|---|---|
| Suction cup material | Silicone SI metal detectable |
| Material hardness [Shore A] | 55 Shore A |
| Size | 42 |
| Number of folds | 2.5 |
| Connection | G1/4-AG |
| Workpiece radius min. (convex) | 75 mm |
| Volume | 19.79 cm³ |
| Suction force (-600mbar) | 14.93 N |
| Pull-off force | 44 N |
| Hose inner diameter (recom.) d | 6 mm |
| Weight | 27 g |
| Product family | FSG |
| Size | 42 |
| Suction cup material | Silicone SI metal detectable |
| Material hardness [Shore A] | 55 (Shore A) |
| Material characteristics | FDA-compatible |
| Number of folds | 2.5 |
| Nipple family | N 018 |
| Thread G1 | G1/4"-M |
| Length L1 | 28.8 (mm) |
| Fitting length | 4 (mm) |
| Nominal diameter dn | 4.4 (mm) |
| 5 (mm) | |
| Material | Aluminum |
